CRL-Blumcraft® Polished Stainless Keyed Right-Hand Panic Handle
CRL-Blumcraft® Polished Stainless Keyed Right-Hand Panic Handle
Regular price
$13,666.34 CAD
Regular price
Sale price
$13,666.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F3AKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance while reducing cost.

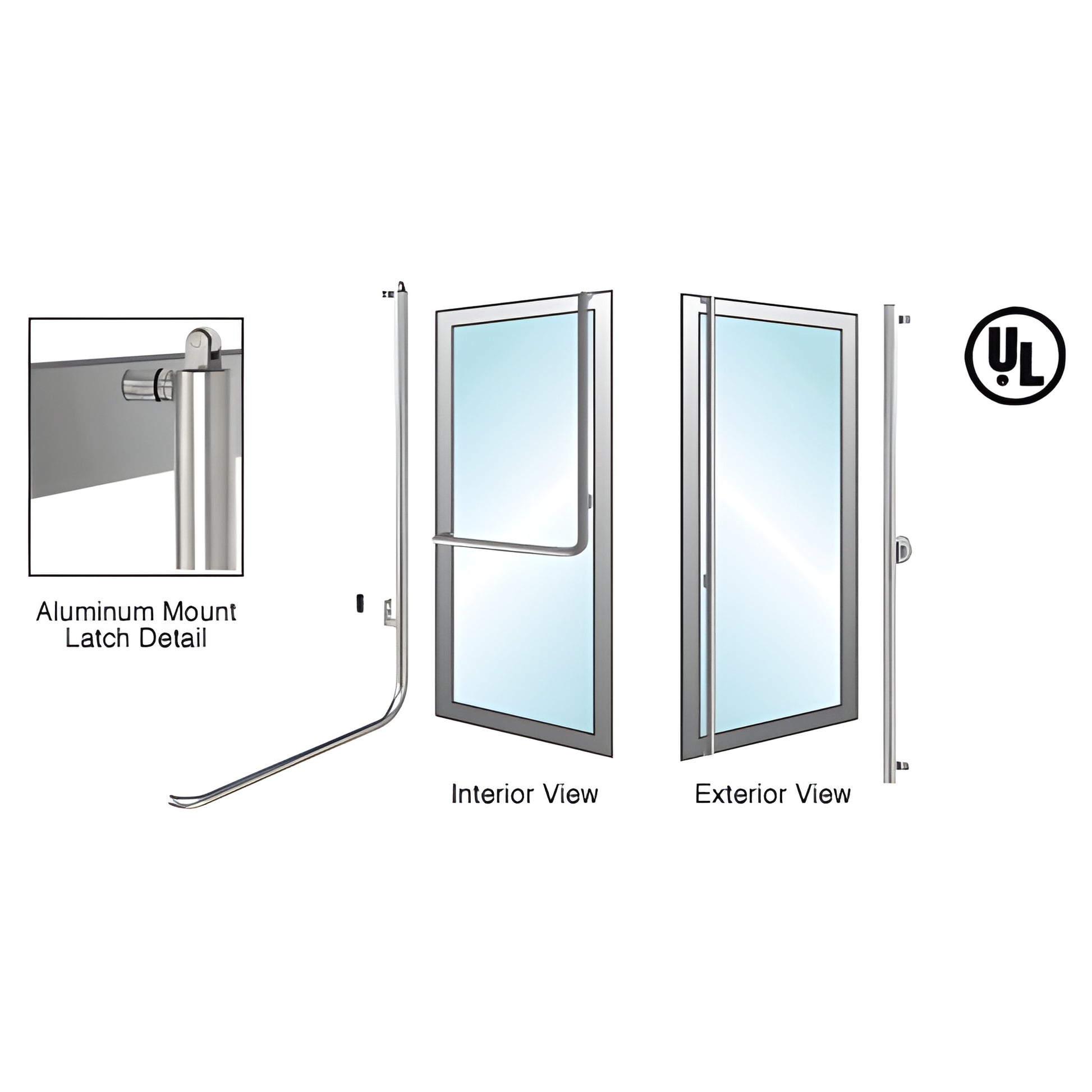

The PA100 Series panic handles (SKU: PA100F3AKPS) feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional keyed exterior access, a dogging feature for daytime unlocked operation, and compatibility with electric strikes provide versatile secured-entry options for commercial glass doors.
Designed for maximum viewing area and ADA compliance, the interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and turns upward to clear the lower door area required by ADA codes. All PA100 models include a dogging lever for locking the device in the open position and can be used with electric strikes; custom headers with strike hardware are available.
Key differentiators:
- ADA-friendly tubular design that preserves lower door clearance
- Multiple finish options and custom finishes/sizes
- Security flexibility: optional keyed access, dogging, and electric strike compatibility
- Certified to UL, ULC, and ANSI/BHMA standards
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the PA100 Series panic handle (SKU: PA100F3AKPS) or contact CRL Technical Sales for assistance with specifications and custom options.
