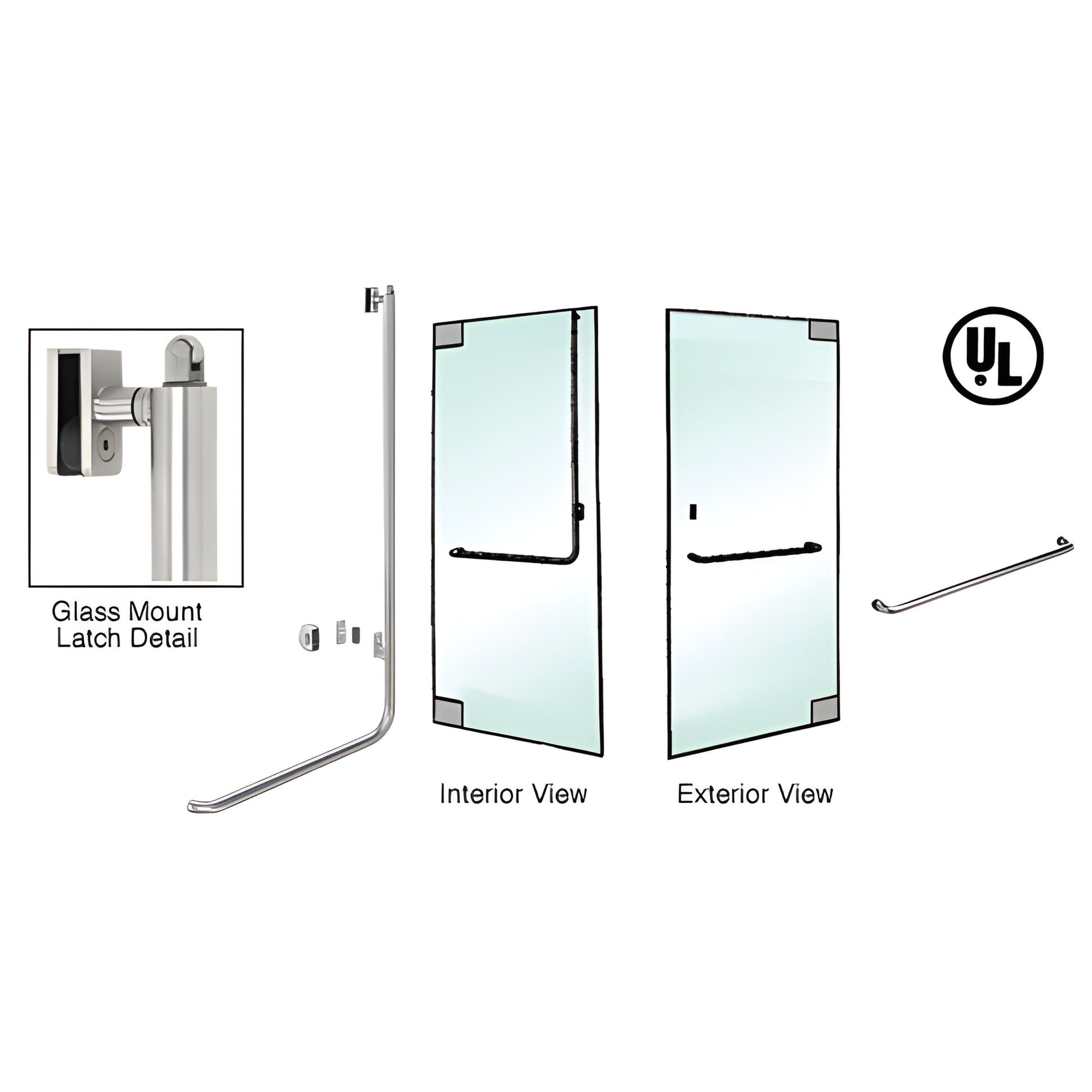

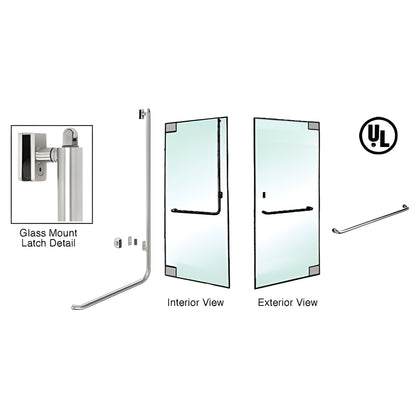

• Polished stainless steel PA100 panic handle for 1/2-3/4 in glass doors, 1-1/4 in tube, interior and exterior views.
1 1

CRL

CRL-Blumcraft Polished Stainless Right-Hand Glass Panic Handle Keyed

CRL-Blumcraft Polished Stainless Right-Hand Glass Panic Handle Keyed

$10,872.61 CAD
$10,872.61 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100A3GKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design for maximum viewing area
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Match appearance across a project with dummy handles that provide the same look at lower cost.

The PA100 Series (SKU: PA100A3GKPS) is a popular ADA-compliant panic handle for tempered glass doors. Its operating mechanism is concealed within the vertical tubing; pushing the interior actuation bar retracts the latch bolt. An optional exterior keyed access device and available electronic strikes enable secure, remote or keyless entry. A special dogging feature locks the device in the open position for unobstructed daytime access.

Designed for 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the slender 1-1/4" (32 mm) interior tube stretches across the door and turns upward to keep the lower half of the door clear—helping meet ADA clearance requirements while offering a contemporary, minimalist aesthetic.

Key differentiators:
  • Certifications: UL, ULC, ANSI/BHMA for trusted code compliance
  • Concealed mechanism in vertical tubing for clean sightlines
  • Dogging feature for easy daytime operation
  • Options for keyed exterior access and electric strike integration
  • Multiple finish options plus custom finishes and sizes
For detailed specifications, installation guidance, or compatibility with electric strikes and keyed access devices, contact CRL Technical Sales via the Contact Us page, Technical Sales for Commercial Products. View the latest catalog pages with complete product details here.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not immune to rust or staining. CRL recommends periodic maintenance to preserve the factory finish.
