Most shipping weights are approximate. If you need exact weight to determine shipping costs, contact CRL Customer Service before ordering. Product images represent the item or a close approximation; actual colors may vary by monitor.
CRL
CRL-Blumcraft Polished Stainless RH Rail Mt Panic Handle Keyed D Ext
CRL-Blumcraft Polished Stainless RH Rail Mt Panic Handle Keyed D Ext
Regular price
$11,484.87 CAD
Regular price
Sale price
$11,484.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100D3RKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified panic handle
- Elegant tubular design for minimal visual obstruction
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across projects without unnecessary cost.

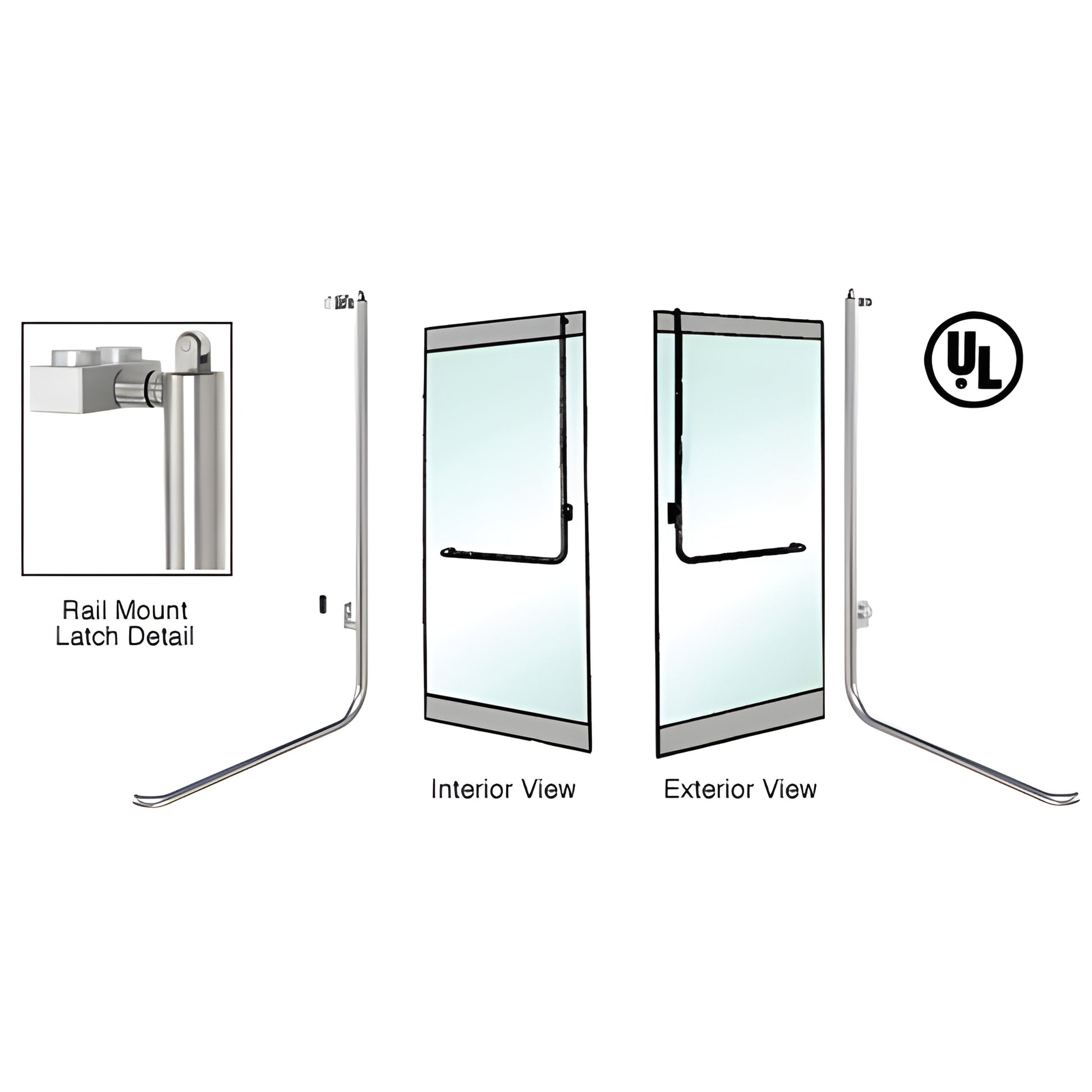

The PA100 Series panic handles conceal the operating mechanism inside a vertical tube. Pushing the interior actuation bar retracts the latch bolt; optional exterior keyed access and an integral dogging feature allow the device to remain unlocked during business hours. Electronic strikes and custom headers with pre-installed strike hardware are available for remote or keyed entry solutions.
Designed specifically for all-glass entrances, these elegant tubular panic handles maximize viewing area and meet Americans With Disabilities Act (ADA) requirements by keeping the lower half of the door clear. The interior tube is a slender 1-1/4" (32 mm) profile that rises to the top rail to avoid ADA obstructions.
All PA100 Series panic handles include a dogging lever for open-position use and are compatible with electric strikes for keyless remote access. Popular model: PA100 Series panic handle — SKU: PA100D3RKPS. Long-tail keywords: "PA100D3RKPS panic handle for tempered glass", "ADA compliant all-glass door panic handle", "UL ULC ANSI/BHMA certified panic device for glass doors".
For full technical details and the latest catalog pages, visit the CRL-Blumcraft Access Handle product line here.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Order or request a quote for SKU PA100D3RKPS today to specify ADA-compliant panic hardware for your tempered glass doors.
