CRL-Blumcraft® Polished SS Right-Hand Rail-Mount Panic Handle, Keyed
CRL-Blumcraft® Polished SS Right-Hand Rail-Mount Panic Handle, Keyed
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA320JS3RKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Features curved crash bar ends for smooth actuation
- Eliminates alignment issues on narrow stile and glass doors
- Simplifies and expedites installation with a 2-piece design
- Mounts onto monolithic and 1" insulating glass (thermal doors)
- Tested to ANSI/BHMA Grade 1 standards

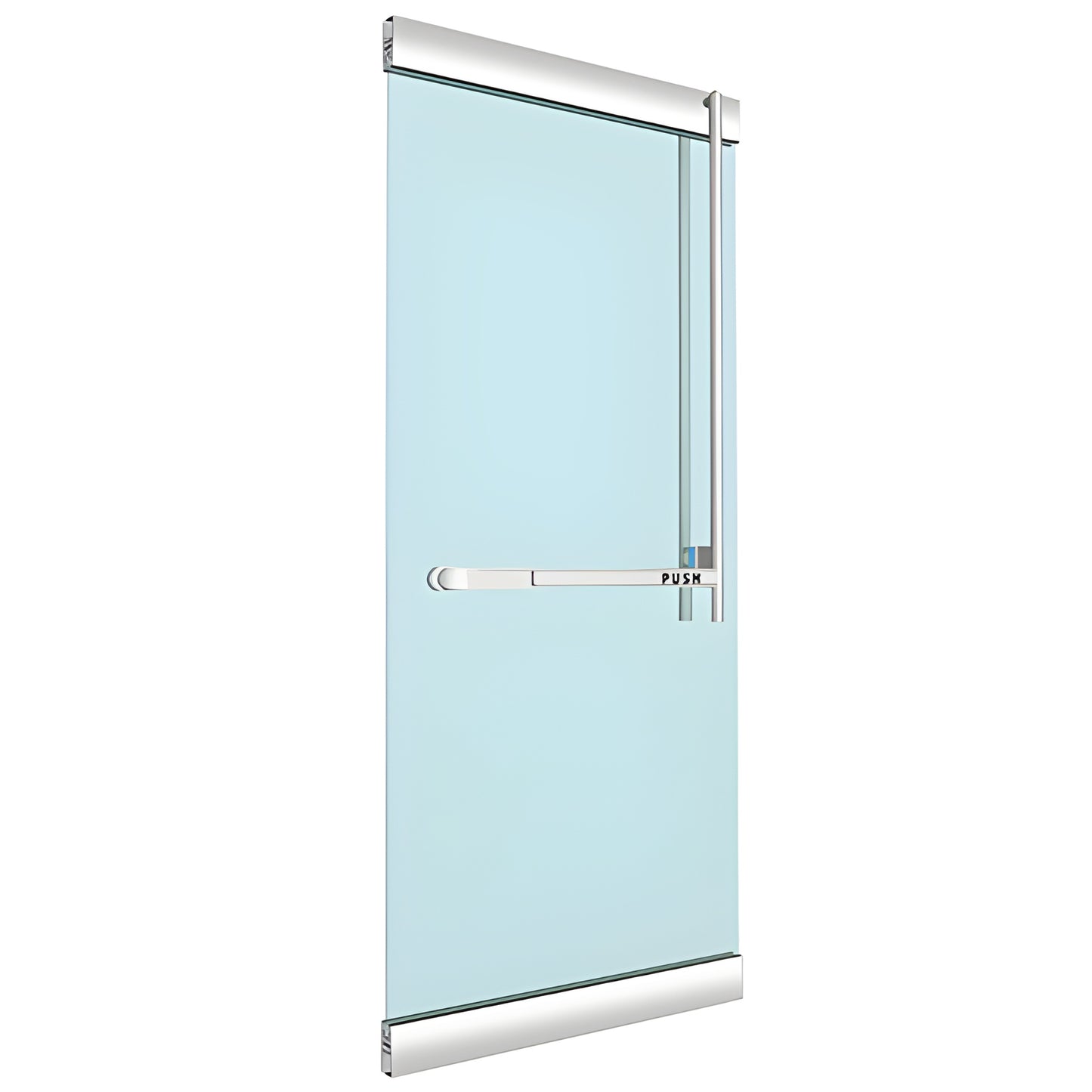

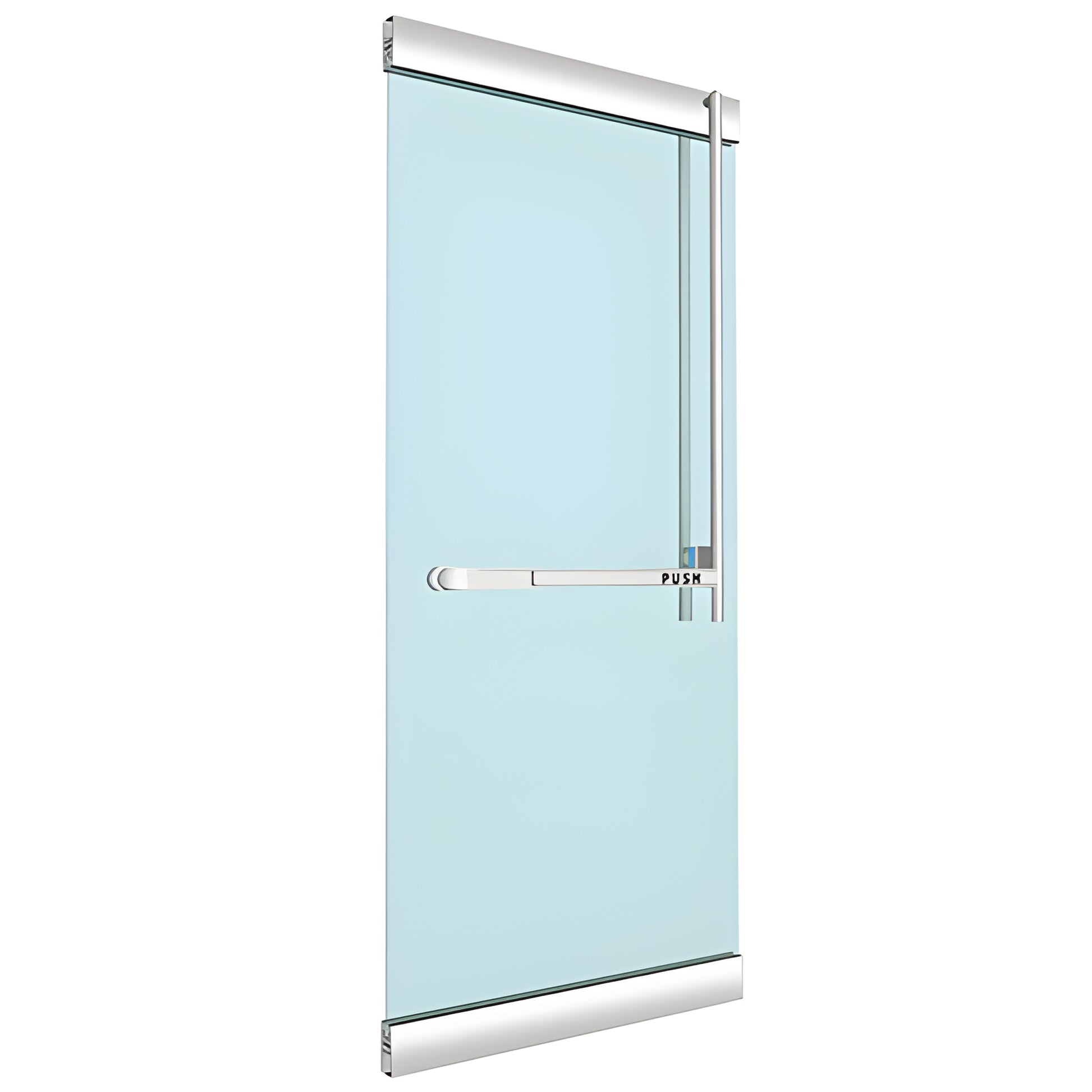

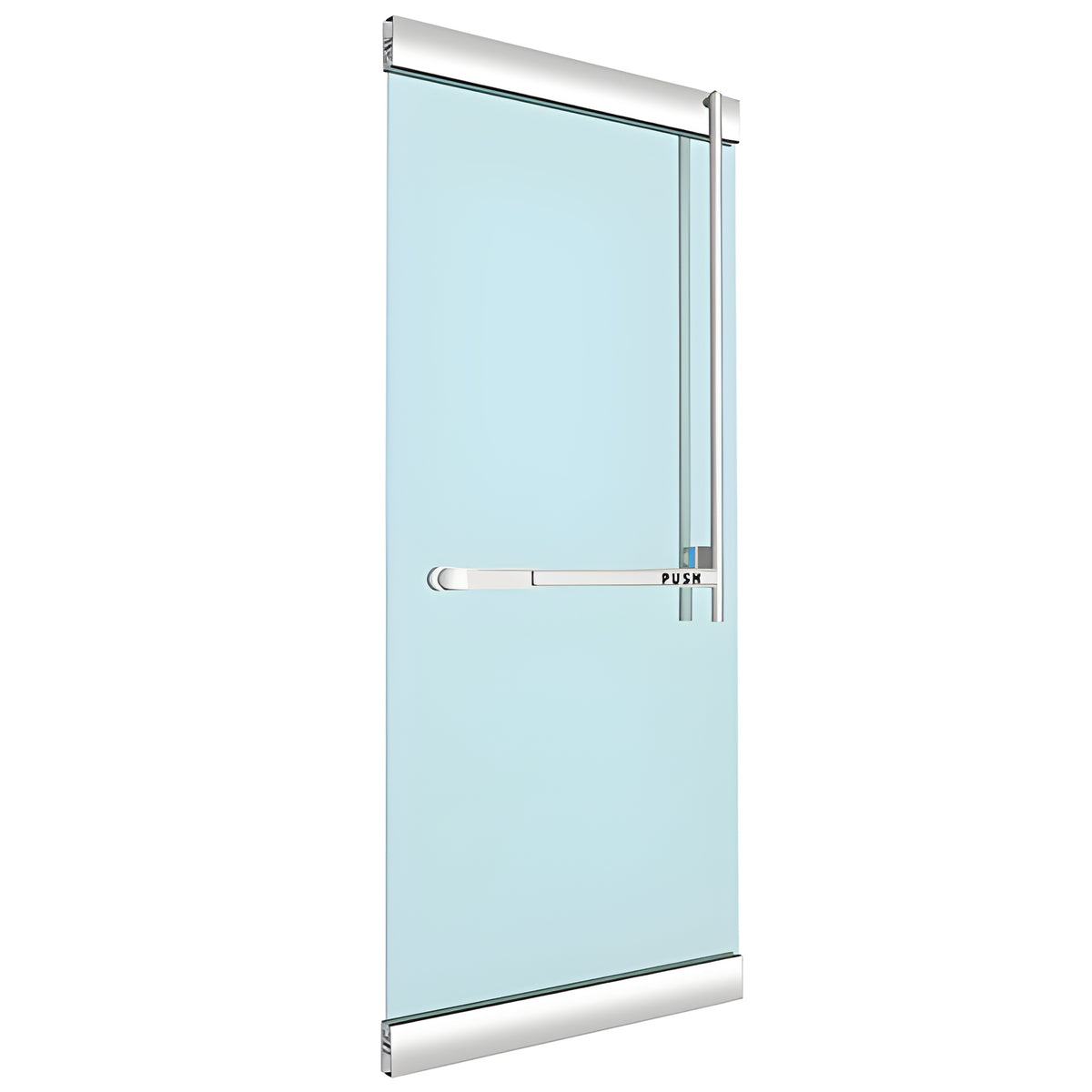

The Blumcraft PA-320 Panic Device (SKU: PA320JS3RKPS) uses an innovative 2-piece system: an independent ultra-narrow crash bar securely attaches to the slim vertical panic component to deliver short ladder-pull aesthetics for interior and exterior glass doors. Designed for glass door panic hardware, the PA-320 is ideal for commercial storefronts and thermal doors where mounting to 1" insulating glass is required.
The operating mechanism is concealed within the vertical tubing and retracts the latch bolt when the interior actuation bar is pushed. Optional accessories include an exterior Keyed Access Device for controlled entry, a special dogging feature to keep doors unlocked during business hours, and compatibility with Electronic Strikes for a range of secured-entry solutions.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Why choose the PA-320 panic device? Narrow-profile panic hardware engineered for glass doors, ANSI/BHMA Grade 1 performance, and easy installation on insulating glass.
Ready to secure your glass door with a high-performance panic device? Contact CRL or add the PA320JS3RKPS to your cart today.
Specifications
CAD Drawings - pdf
