** CRL-Blumcraft® Satin Anodized 1301-CM Display Case Double Door and Sidelite with Mounting Bars - 3/8" Laminated Glass

• Concealed pivots and lock for added security
• Accepts standard mortise cylinder

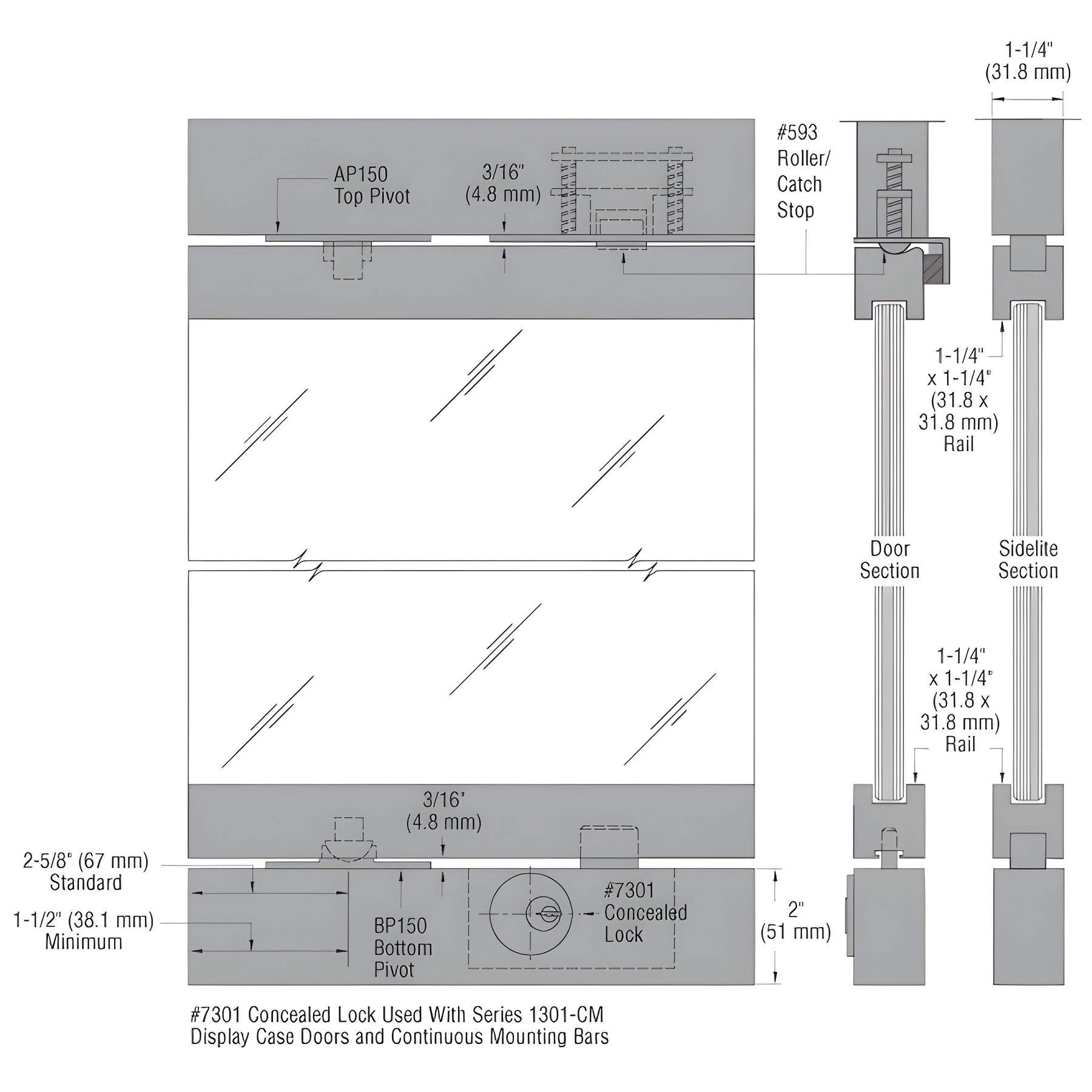

CRL-Blumcraft® 1301-CM Series display case doors and sidelites (SKU: 13CDL38SA) are supplied fully glazed with continuous mounting bars top and bottom to conceal pivots and locks. The mounting bars install into existing display cases, then the doors mount onto the bars—eliminating the need to prep or mortise for pivots and locks in the case frame.

The lock and mortise cylinder are integrated into the continuous mounting bar so the door rail surfaces remain clear. Locks can be positioned at the top, bottom, or both for increased security. The 1301 Series fits multiple glass thicknesses—3/8", 1/2", 5/8" or 3/4" (10, 12, 16 or 19 mm)—and accepts tempered or laminated glass in clear, tinted, low-iron, anti-reflective, or other specialty glass on request. For technical details, glass options, or installation guidance for display case doors with concealed pivots and locks, contact CRL Technical Sales.

Product Warning:

STRUCTURAL DISCLAIMER - Customers using this product are solely responsible for consulting a structural engineer to confirm suitability for the intended use and site conditions. All installers must be qualified and understand local, state, and federal regulations, safety factors, and the correct fixing materials and procedures.

Need help or a quote? Contact CRL Technical Sales or Customer Service to discuss glass options, confirm weights, or place an order.
