CRL

CRL-Blumcraft® Satin Brass RH Reverse Aluminum Keyed Panic Handle

CRL-Blumcraft® Satin Brass RH Reverse Aluminum Keyed Panic Handle

Regular price $15,754.09 CAD
Regular price Sale price $15,754.09 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100F3AKSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Satin Brass
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across projects while reducing cost.

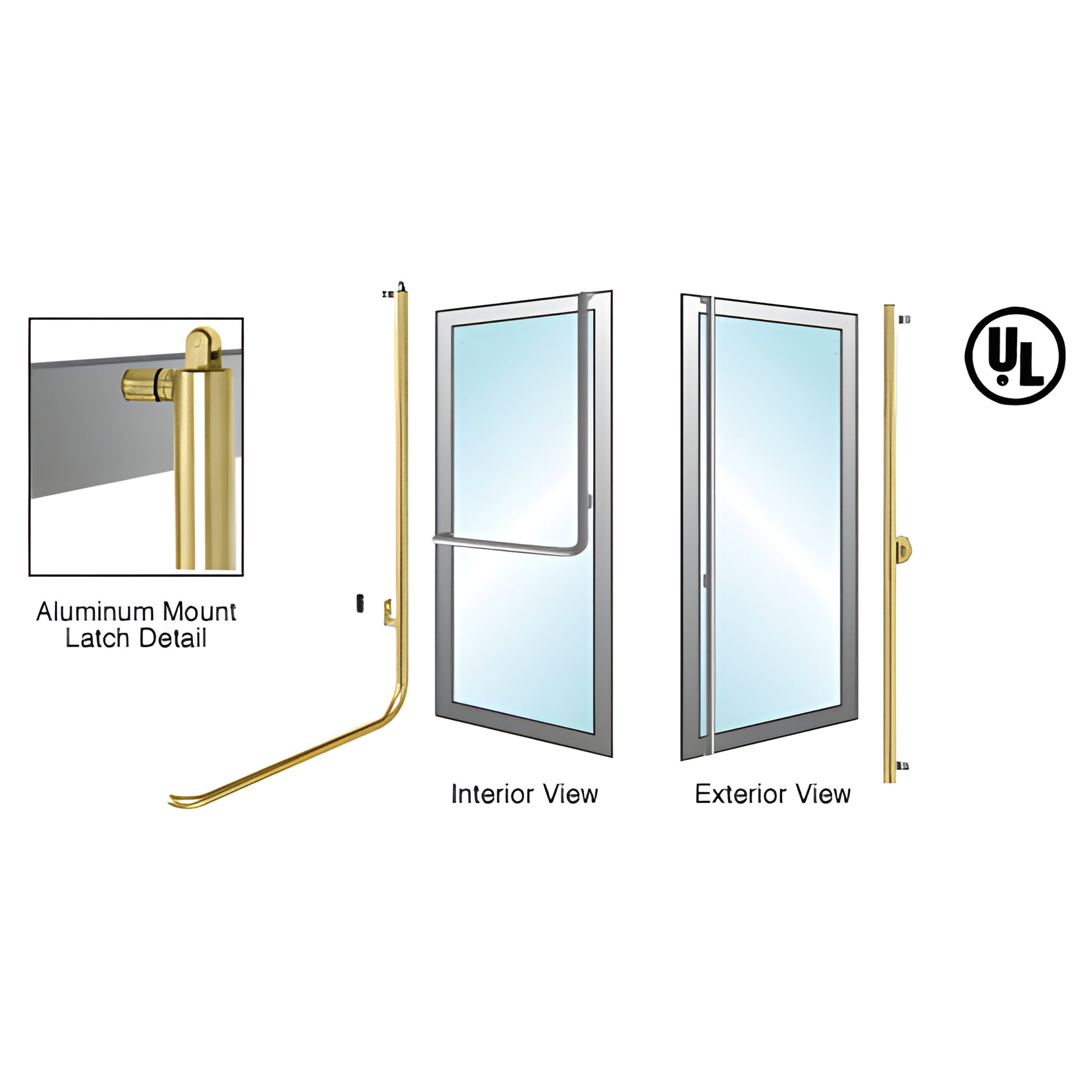

The PA100 Series panic handles (SKU: PA100F3AKSB) are ADA-compliant tubular panic handles designed specifically for 1/2" and 3/4" tempered glass doors. The slim 1-1/4" (32 mm) interior tube stretches across the door and turns upward to the top rail, keeping the lower door area clear to meet ADA clearance requirements—ideal for commercial glass storefronts and office entry doors.

Key differentiators:

  • Concealed operating mechanism within vertical tubing for clean aesthetics
  • Dogging feature allows locking in the open position for business hours
  • Optional exterior keyed access device and compatibility with electric strikes for remote, keyless entry
  • Available custom headers with strike hardware pre-installed for easier installation

These panic handles provide maximum viewing area and a contemporary look for glass entrances while meeting rigorous safety and accessibility codes. For full specifications and compatible electronic strike options, see the catalog link below.

Find complete CRL-Blumcraft® Access Handle product details in the latest catalog: catalog pages.

Most shipping weights are approximate and may vary. If exact weight is required to determine shipping costs prior to ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary based on monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. For more information, see the Brass Finish Disclaimer in the Technical References section.
