** CRL-Blumcraft® Brushed Stainless B1250 Floating Transom System for 1/2" Glass

• For 1/2" (12 mm) tempered glass
• Custom length to your specifications
• Suspended by stainless steel rods
• Use monolithic tempered glass
• No holes or notches in transom or sidelites
• Available in several architectural finishes; custom finishes (including oil rubbed bronze) available on special order

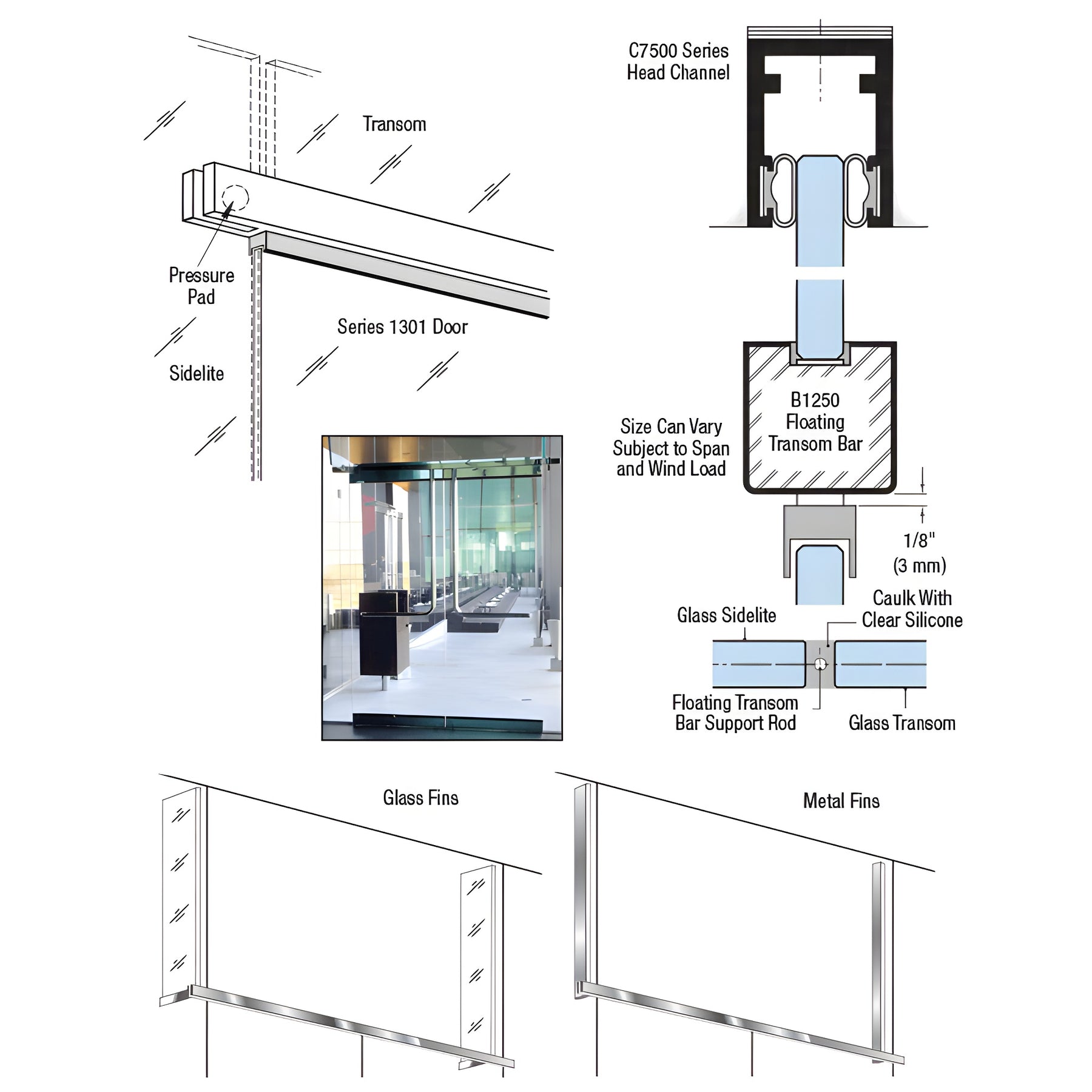

The CRL-Blumcraft® B1250 Floating Transom System (SKU: B125012BS) delivers a clean, all-glass aesthetic for frameless/transom storefronts and interior glass entrances. The narrow B1250 header is suspended from the C7500 Series Head Channel by thin stainless steel rods concealed in the gaps between the transom and sidelites, so no holes or notches are required in the glass.

Constructed of solid steel for maximum strength, the B1250 header is clad in brushed or polished stainless steel; custom finishes are available on request. The transom bar sandwiches the sidelite glass with concealed pressure pads to provide lateral support without drilling the glass. Transom bars can be wall- or frame-mounted and are compatible with egress handles and electric strikes. For higher wind-load conditions, the system is available with glass or metal stabilizer fins.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to verify product suitability for intended use and site conditions. Installers must be qualified and understand local, state, and federal regulations, required safety factors, and proper fixing materials and procedures.

Stainless Steel Advisory:

Order the B1250 Floating Transom System (SKU: B125012BS) or contact CRL for custom lengths and finishes.
