- For 3/4" (19 mm) Tempered Glass
- Custom Length to Your Specifications
- Use Monolithic Tempered Glass
- Suspended By Stainless Steel Rods
- No Holes or Notches in Transom or Sidelites
- Available in Several Architectural Finishes, Custom Finishes Including Oil Rubbed Bronze Available on Special Order

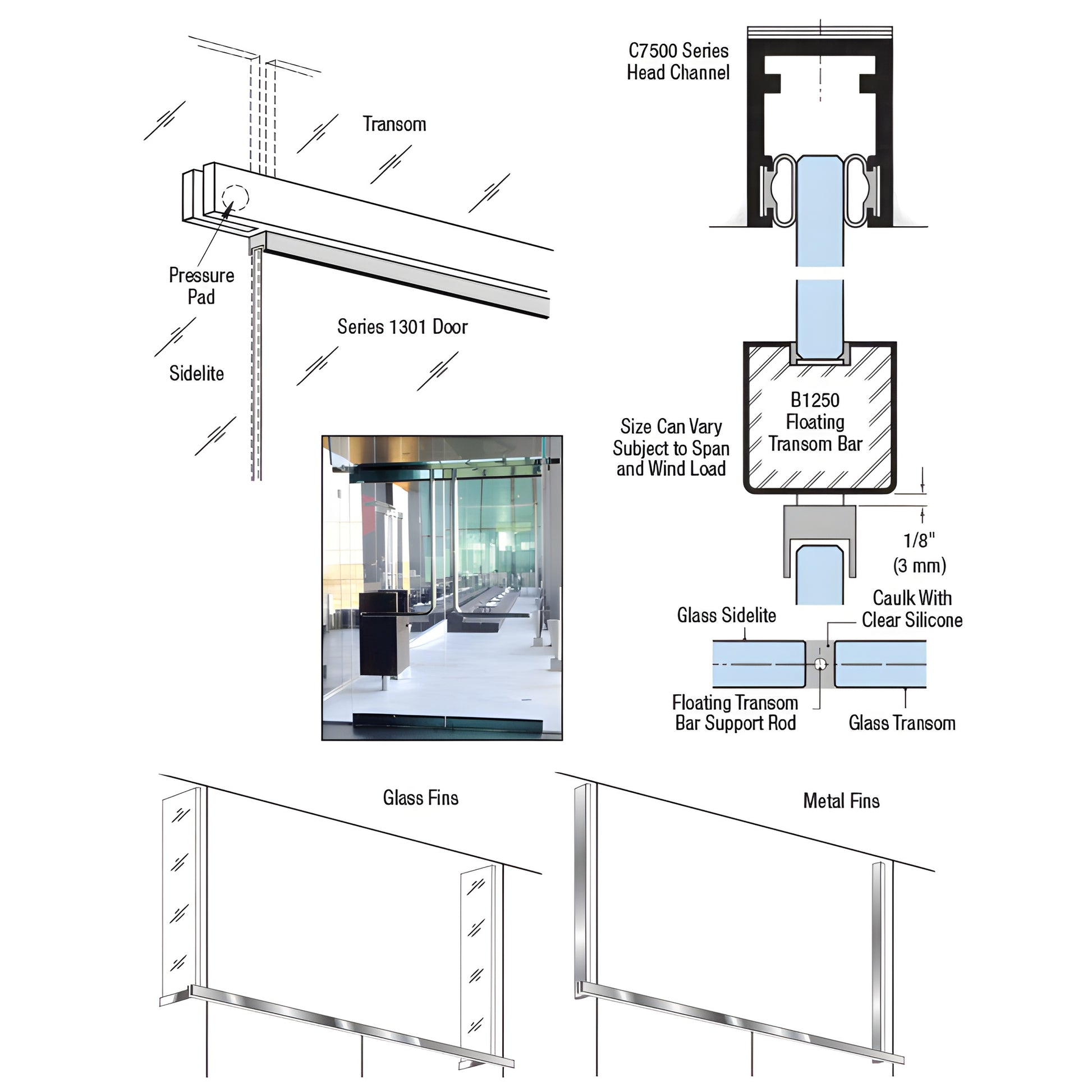

The CRL-Blumcraft® B1250 Floating Transom System provides a clean, 'all-glass' look with minimal metal, and requires no holes or notches in the transom or sidelites. The narrow header of the B1250 is suspended from the C7500 Series Head Channel by thin stainless steel rods that are concealed in the gaps between the transom and sidelites.
Constructed of solid steel for ultimate strength, the B1250 Header is clad with brushed or polished stainless steel. Custom finishes are available upon request. The B1250 Floating Transom Bar 'sandwiches' the sidelite glass with concealed pressure pads, giving the system lateral support without any holes in the glass. Transom Bars can be designed to mount to walls or framing, and can also be used with Egress Handles in combination with electric strikes. The system is also available with glass or metal stabilizer fins when wind load conditions are greater than what the standard system can withstand.
Product Warning
STRUCTURAL DISCLAIMER
- All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
