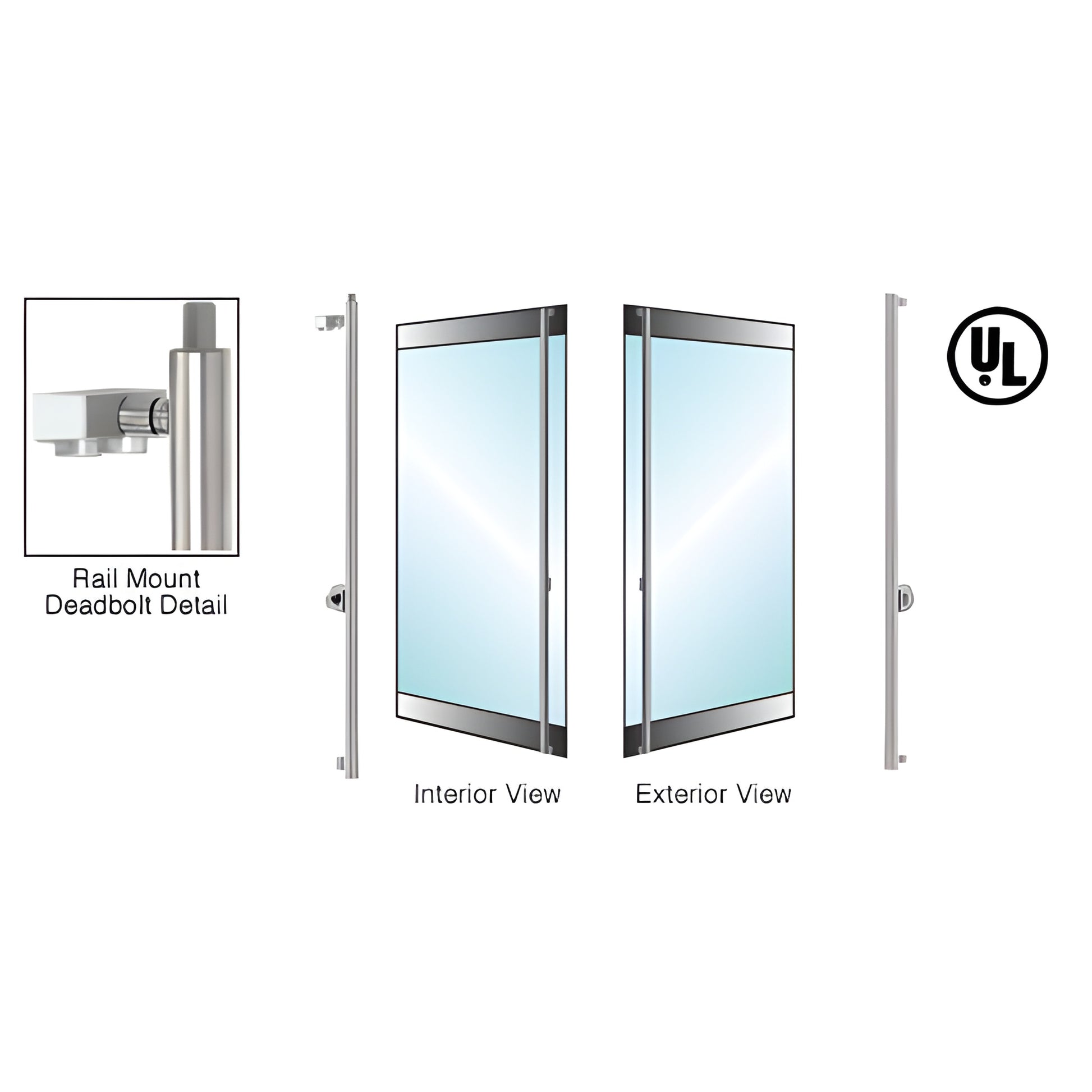

CRL-Blumcraft Right-Hand Rail-Mount Exterior Deadbolt w/ Thumbturn
CRL-Blumcraft Right-Hand Rail-Mount Exterior Deadbolt w/ Thumbturn
Regular price
$11,614.89 CAD
Regular price
Sale price
$11,614.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DB130F1R1BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand
Keying
Cylinder / Thumb Turn
Locking
Top
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt
Overview
- UL Classified
- Easy secure access for commercial glass doors
- ANSI/BHMA certified deadbolt handle
- DB130 Series compatible with electric strikes for access control
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and deadbolt handles designed for all-glass door installations. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance without added cost.
The locking mechanism is concealed inside the vertical tubing of the deadbolt handle, offering multiple keying options. An optional top latch roller bolt enables use with electronic strikes for controlled-entry systems, making this a reliable choice for commercial storefronts and glass entrance doors.
For additional technical information or project assistance, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete details on the CRL-Blumcraft® Access Handle product line are available here.
Product Warning:
Secures at top of door only.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
SKU: DB130F1R1BS
Ideal for commercial glass doors requiring UL-classified, ANSI/BHMA-certified deadbolt handles compatible with electric strikes. Contact CRL for pricing, lead times, or to place an order.
