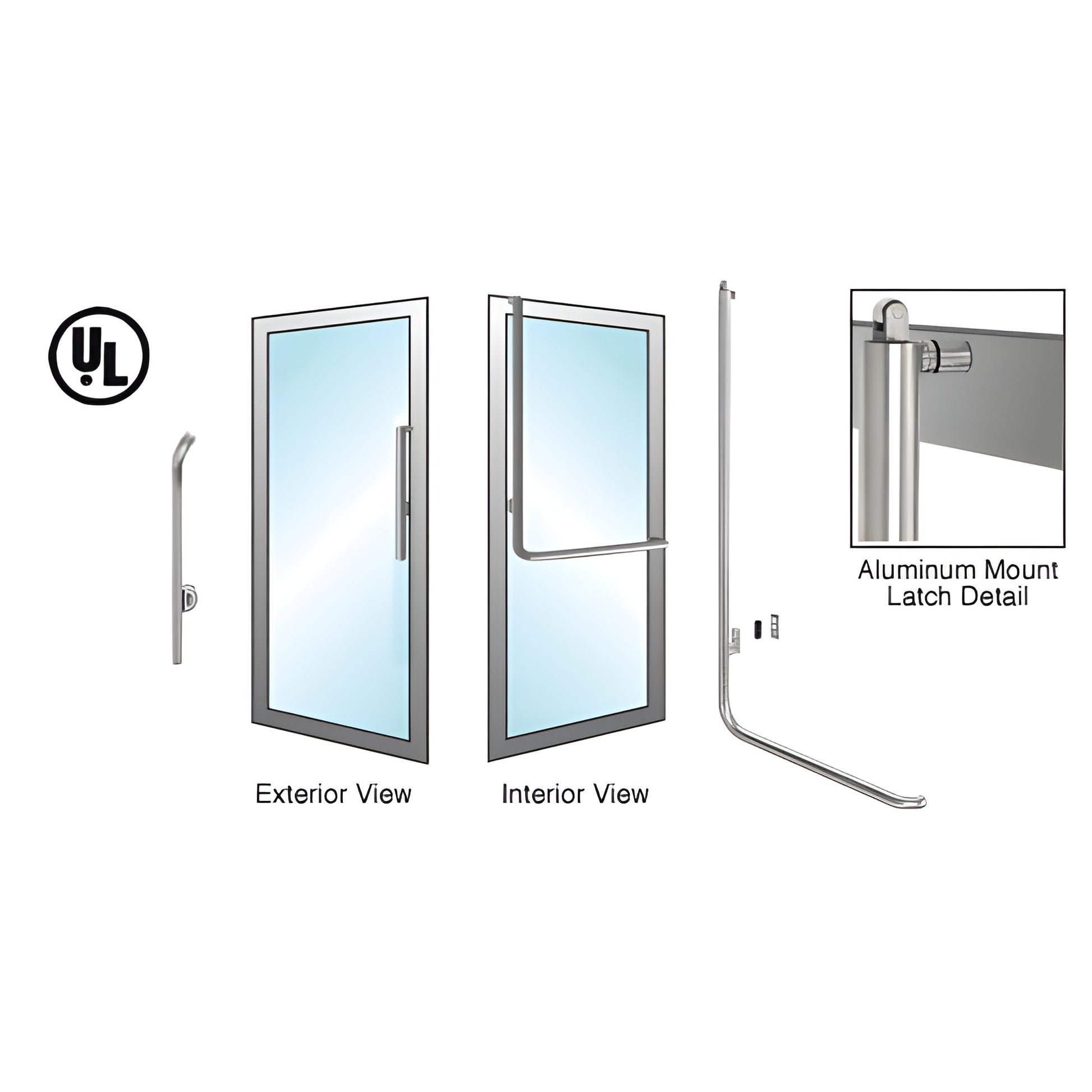

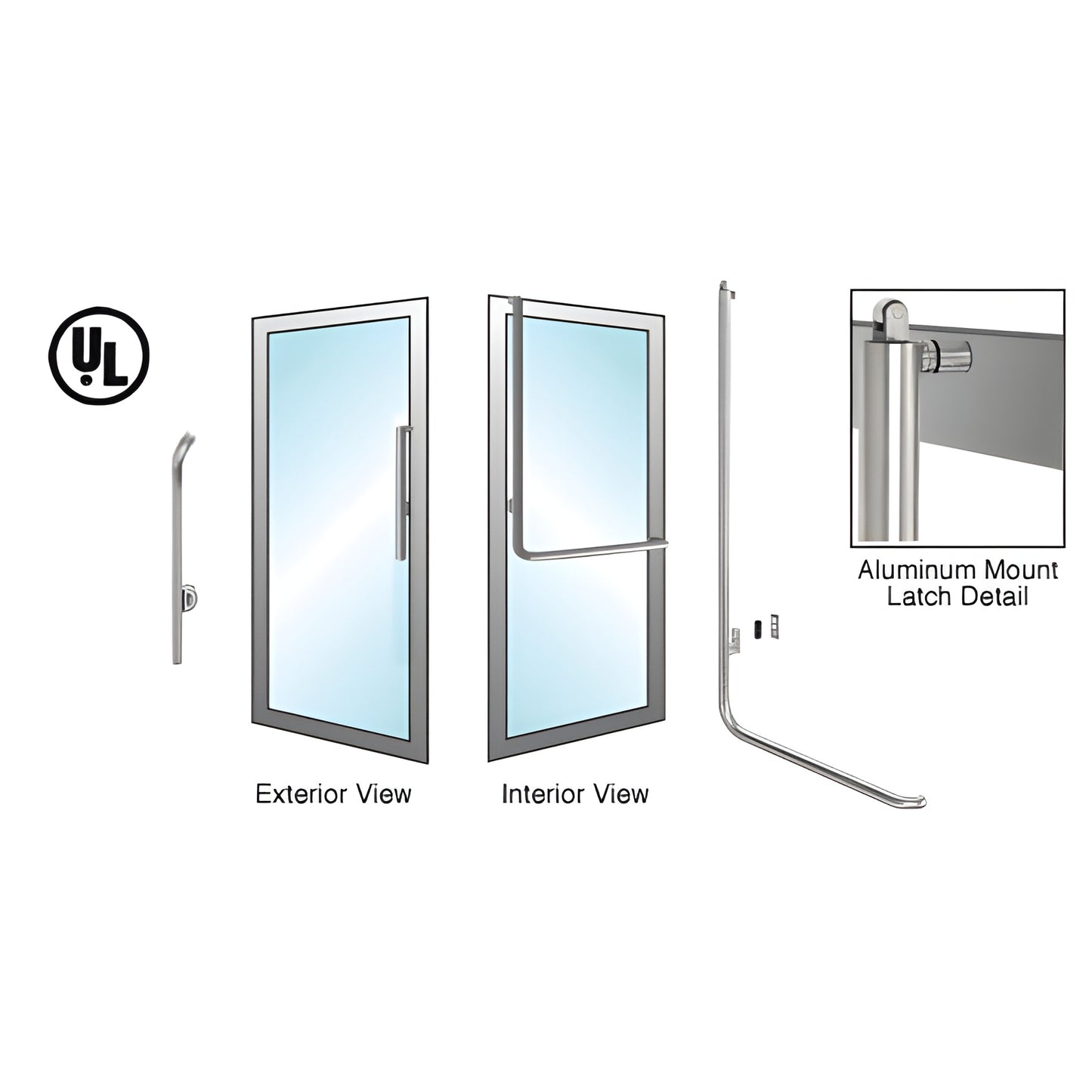

• PA100G4AKBS brushed stainless tubular panic handle for 1/2-3/4 tempered glass doors, interior push bar with aluminum mount
1 1

CRL

CRL-Blumcraft® Stainless LH Rev Alum G-Keyed Door Panic Handle

CRL-Blumcraft® Stainless LH Rev Alum G-Keyed Door Panic Handle

$12,523.45 CAD
$12,523.45 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100G4AKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent appearance without the extra cost.

The PA100 Series panic handle (SKU: PA100G4AKBS) is an ADA-compliant tubular panic handle designed specifically for 1/2" and 3/4" tempered glass doors. Its concealed operating mechanism inside the vertical tubing retracts the latch when the interior actuation bar is pushed, preserving a clean, contemporary look and maximum viewing area.

Key differentiators:
  • ADA-friendly 1-1/4" (32 mm) slender interior tube that routes up to the top of the door to keep the lower glass unobstructed
  • Standard dogging feature locks the device in the open position for business hours
  • Optional exterior keyed access device and electric strike compatibility for remote or keyless entry
  • Custom headers available with strike hardware pre-installed
All PA100 Series handles support a variety of secured entry options and are available in multiple finishes; custom finishes and custom sizes ship within one to two weeks. For full product specifications and catalog pages, view the CRL-Blumcraft Access Handle catalog here.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost information is required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.


Ready to order or need a custom finish for SKU PA100G4AKBS
