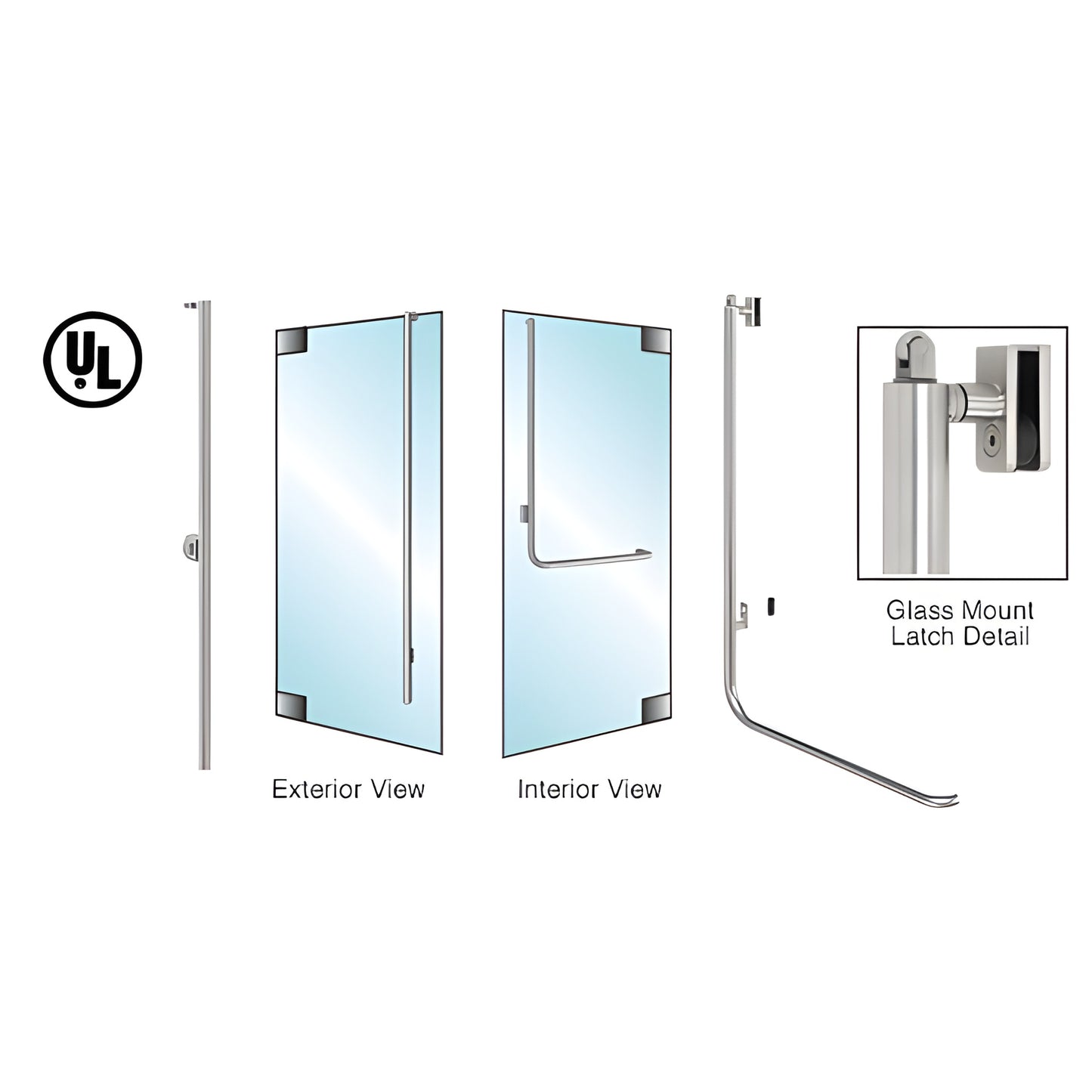

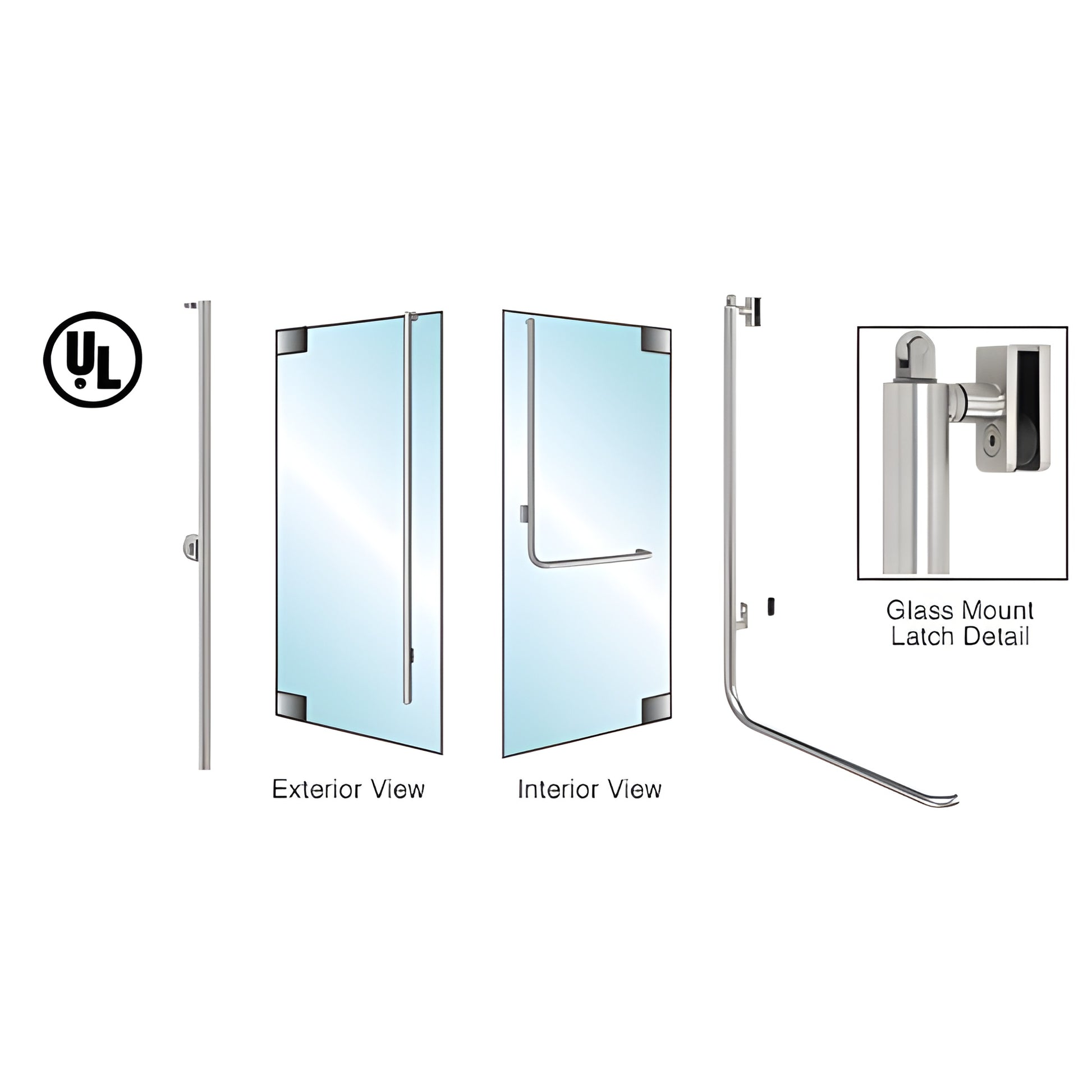

• Brushed stainless steel glass-door panic handle for 3/4" tempered glass, shown exterior and interior views.
1 1

CRL

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Glass Mount Keyed Access 'FS' Exterior Top Securing Panic Handle for 3/4" Glass

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Glass Mount Keyed Access 'FS' Exterior Top Securing Panic Handle for 3/4" Glass

$11,769.07 CAD
$11,769.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100FS4GKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • For 3/4" (19 mm) tempered glass doors — fits single or double glass doors and replaces older panic hardware
  • Custom sizes ship within one to two weeks
  • Optional keyed access and electric strike available
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1 (commercial grade panic hardware)

CRL‑Blumcraft® Glass Door Panic Handle — designed for maximum view and a contemporary appearance on 3/4" (19 mm) tempered glass doors. Ready-to-install for door widths 36" to 48" (914 mm to 1,220 mm) and heights 90" to 102" (2.29 to 2.59 m) without modification. Suitable for single or double doors. “Dogging” (locking the device in the open position) is simple with a slide knob. A separate Door Stop/Strike must be ordered. Threshold Strike Plate available for PA110 series. Custom headers available with pre-installed hardware.

SKU: 3P100FS4GKBS


SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
Glass Thickness:
  • 3/4" (19 mm)
Glass Fabrication:
ORDERING OPTIONS
When ordering panic handles you must specify:
  • PA100 or PA110 series
  • Right or left hand (as viewed from the outside)
  • Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Finish: brushed or polished stainless, satin or polished brass
  • Optional threshold strike plate (PA110 series only)

For more information, contact CRL Commercial Products Technical Sales Department.

Most shipping weights are approximate. If you need exact weight to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are representative; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
