CRL-Blumcraft® Brushed Stainless Left-Hand Glass Keyed Panic Handle
CRL-Blumcraft® Brushed Stainless Left-Hand Glass Keyed Panic Handle
Regular price
$10,688.17 CAD
Regular price
Sale price
$10,688.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100G4GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA Certified
- Elegant tubular design for maximum viewing area
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed specifically for all-glass doors. Our lineup includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance while reducing cost.

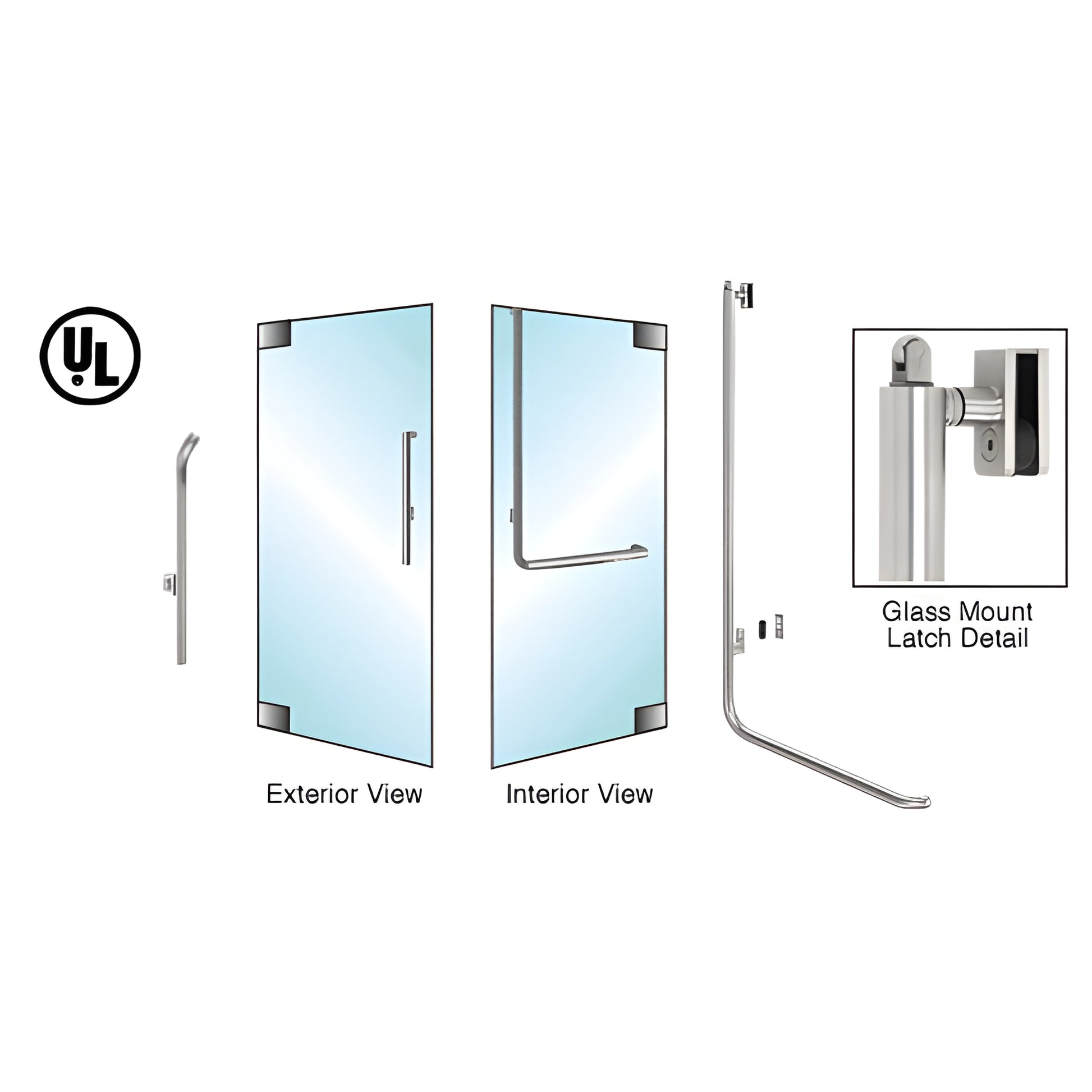

The PA100 Series tubular panic handles conceal the operating mechanism within a slender vertical tube. Pushing the interior actuation bar retracts the latch bolt; an optional exterior keyed access device or electronic strike provides secure, remote or keyless entry. A dogging feature locks the device open for business hours, meeting practical operational needs.
Designed to meet ADA requirements for clear lower-door space, the interior tube is a slim 1-1/4" (32 mm) profile that runs across the door then turns upward, eliminating interference in the lower half of the door. These panic handles are ideal long-tail solutions such as "PA100 panic handle for tempered glass doors" and "ADA-compliant tubular panic bar for 1/2 inch glass."
All PA100 Series panic handles work with electric strikes and can be supplied with custom headers and strike hardware installed for easier installation. For complete product details and technical specifications, view the CRL-Blumcraft® Access Handle catalog here or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Call or order now to get PA100 Series panic handles for your tempered glass door project.
