CRL-Blumcraft® Brushed Stainless Left-Hand Low-Profile Retainer Plate

CRL-Blumcraft® Brushed Stainless Left-Hand Low-Profile Retainer Plate

Regular price $11,162.87 CAD
Regular price Sale price $11,162.87 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100M4LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design for all‑glass doors
  • Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Finishes: Polished & Brushed Stainless, Satin & Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all‑glass doors, including Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent appearance without added cost.

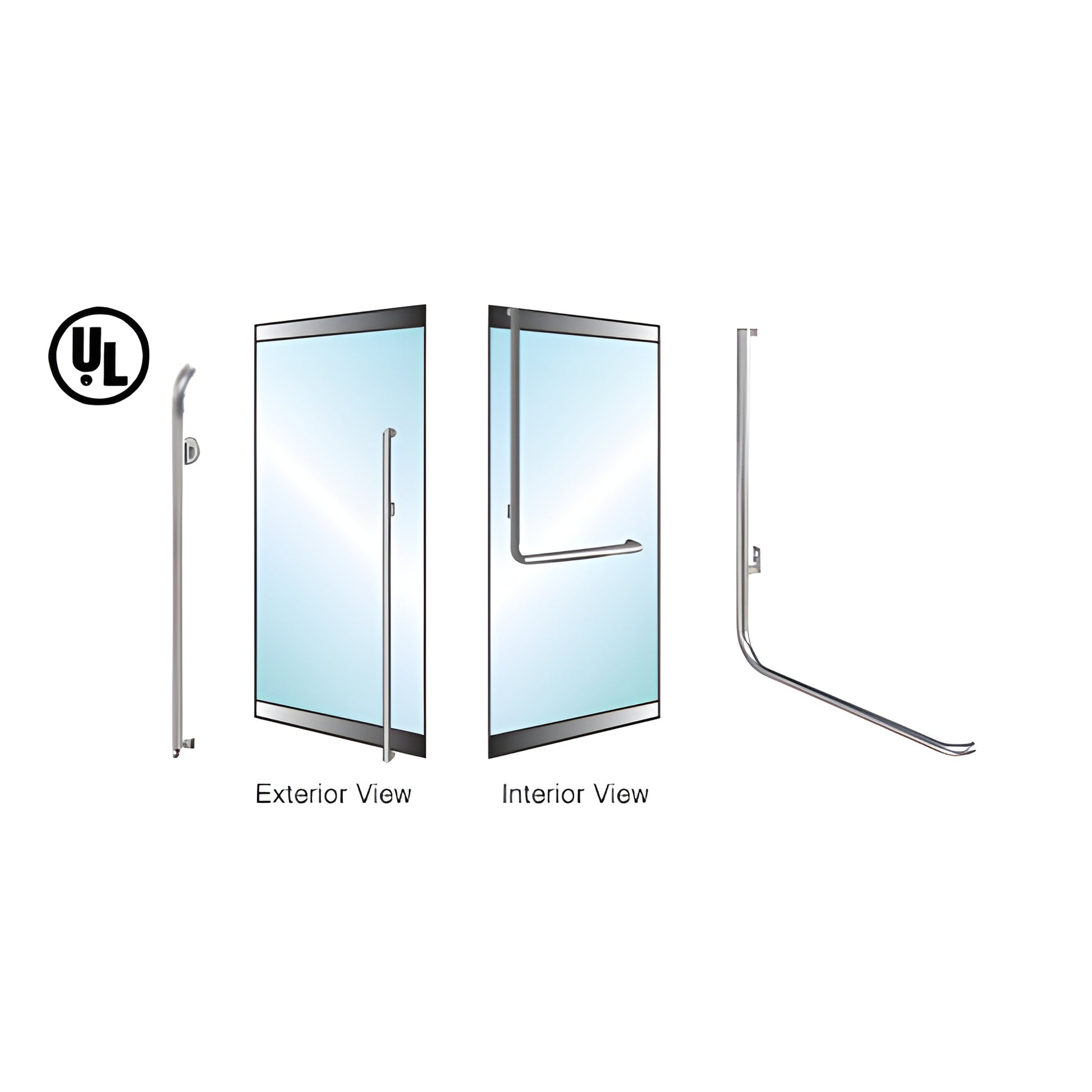

The PA100 Series panic handle (SKU: PA100M4LKBS) features a concealed operating mechanism within the vertical tubing. The interior actuation bar retracts the latch bolt when pushed, meeting strict A.D.A. requirements by keeping the lower half of the door clear. An optional exterior keyed access device and electronic strike options provide secure, remote or keyed entry. All PA100 models include a dogging feature for daytime free egress and can accept custom headers with strike hardware preinstalled.

These elegant tubular panic handles maximize viewing area and deliver a contemporary look on 1/2" or 3/4" tempered glass doors. Designed for commercial glass entrances, the PA100 Series is available in multiple architectural finishes and offers special-order customization for unique projects.

For full product specifications and installation details, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products, or view the latest catalog pages here.

Most shipping weights are approximate. If exact weight (and shipping cost) is required to complete your order, request this before submitting your order by contacting CRL Customer Service. Product images represent the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.


Order the PA100M4LKBS panic handle for glass doors or contact CRL for custom finishes and sizing.
