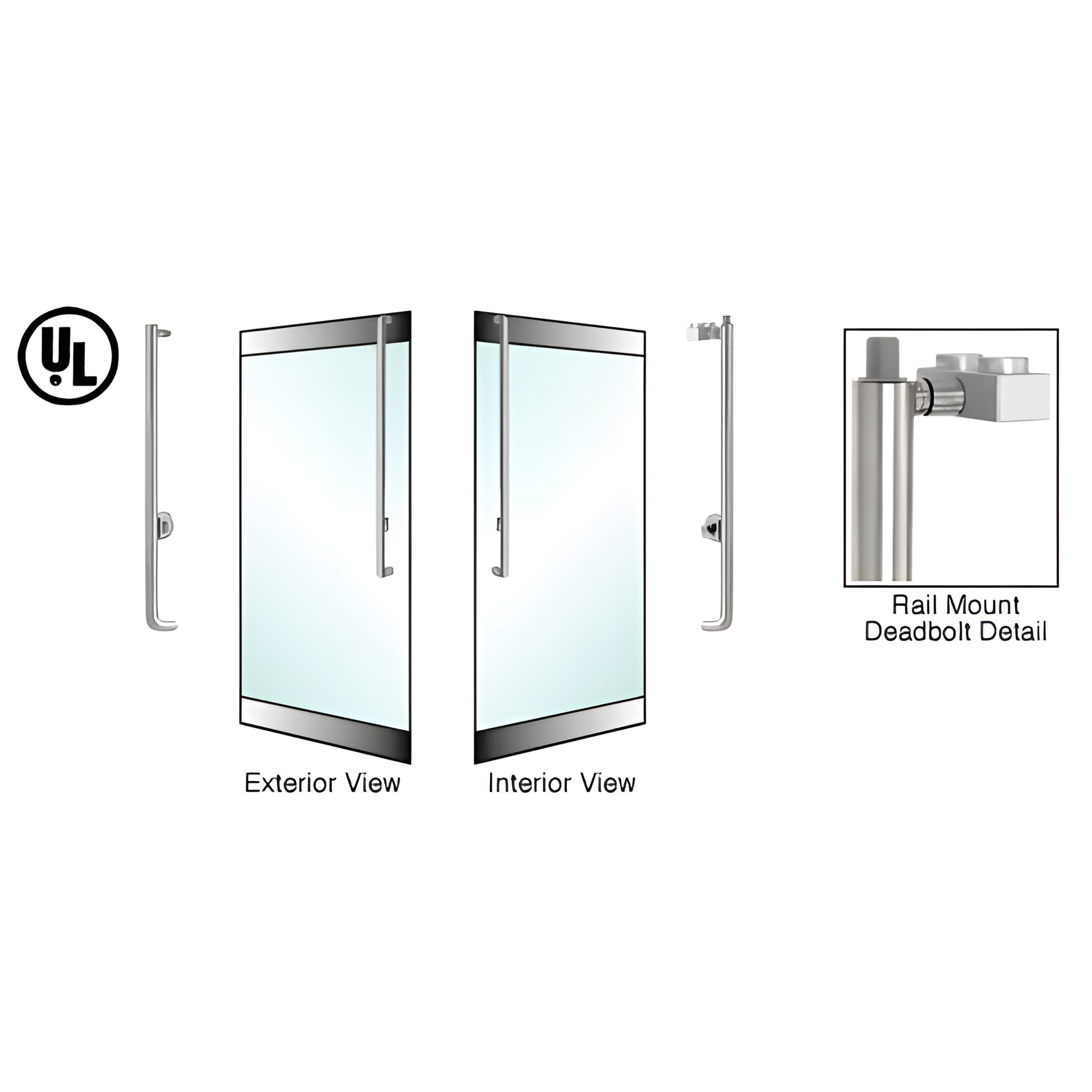

CRL-Blumcraft® Brushed Stainless Left-Hand Rail-Mount Deadbolt
CRL-Blumcraft® Brushed Stainless Left-Hand Rail-Mount Deadbolt
Regular price
$12,053.29 CAD
Regular price
Sale price
$12,053.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DB160J4R1BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder / Thumbturn
Locking
Top
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt
Overview
- UL Classified
- Easy secure access
- ANSI/BHMA certified
- DB160 series compatible with electric strike
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications. The DB160 series (SKU DB160J4R1BS) includes panic devices, deadbolt handles, and electronic egress control handles in a variety of configurations, plus matching dummy handles to maintain a consistent appearance while reducing costs.
The deadbolt locking mechanism is concealed within the vertical tubing, offering multiple keying options. An optional top latch roller bolt enables use with electronic strikes for controlled-entry systems—ideal for electric-strike compatible glass door hardware and deadbolt handles for tempered glass doors.
For additional information, contact CRL Technical Sales from the home page via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete CRL-Blumcraft® Access Handle details can be found here.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need a quote or technical help selecting the right DB160 access handle for your glass door project? Contact CRL Technical Sales today.
Specifications
CAD Drawings - pdf
