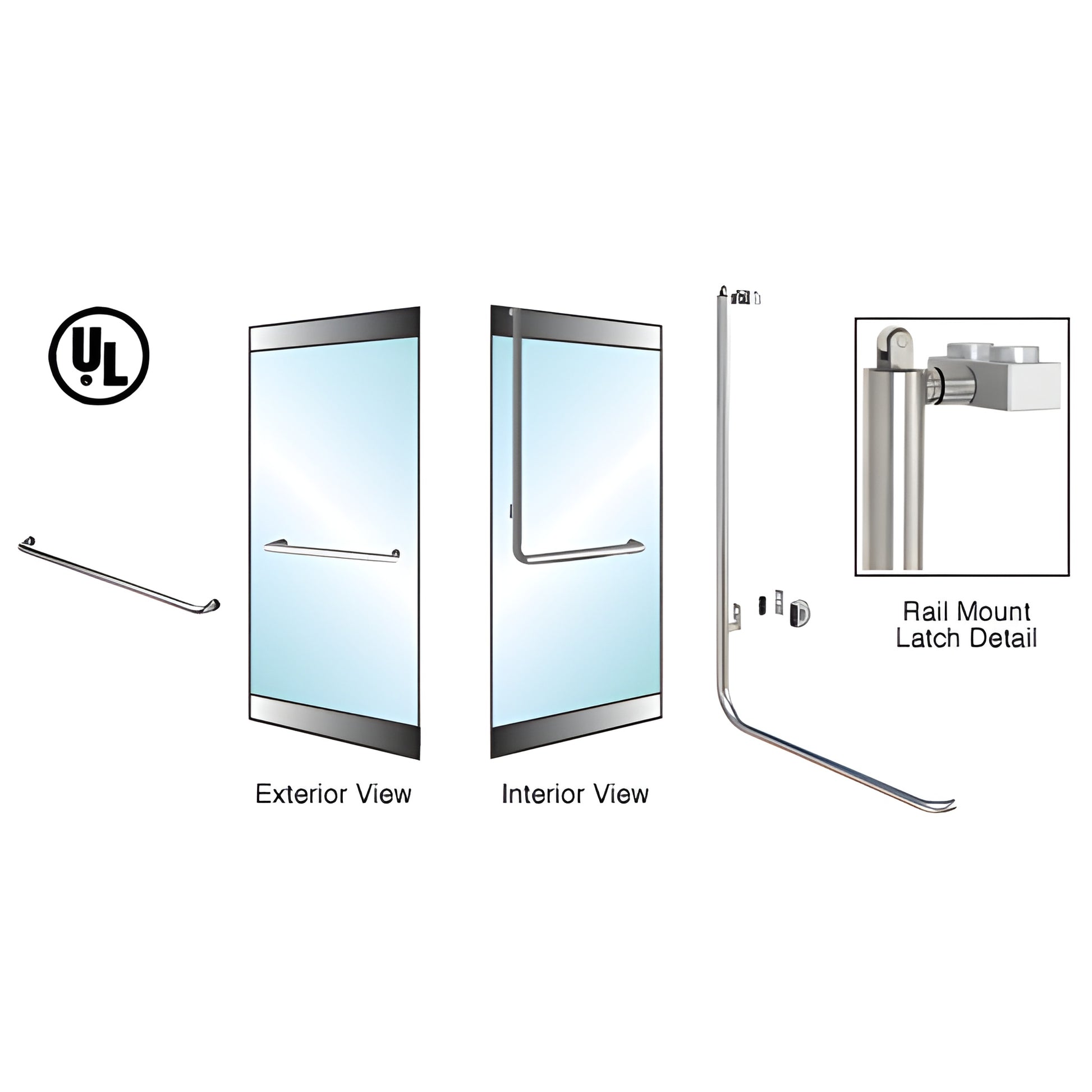

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass

$10,978.43 CAD
$10,978.43 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100A4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • For 3/4" (19 mm) tempered glass doors — fits single or double doors and can be used as a replacement for older panic hardware
  • Custom sizes ship within one to two weeks
  • Optional keyed access and optional electric strike
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P100A4RKBS) delivers a maximum-view, contemporary look for 3/4" (19 mm) tempered glass doors. Ready-to-install for typical 36"–48" (914–1,220 mm) door widths and 90"–102" (2.29–2.59 m) heights without modification. "Dogging" (locking the device open) is simple with a slide knob. Door stop/strike ordered separately. Threshold strike plate available for PA110 series. Custom header options available with pre-installed hardware.

SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
Glass Thickness:
  • 3/4" (19 mm)
Glass Fabrication:
ORDERING OPTIONS
When ordering panic handles, specify:
  • PA100 or PA110 Series
  • Right or left hand (viewed from the outside)
  • Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Brushed or polished stainless, satin or polished brass finish
  • Optional threshold strike plate (PA110 series only)
For more information contact CRL Commercial Products Technical Sales Department or reach out here.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, request this prior to submitting your order by contacting CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in
