CRL-Blumcraft Brushed SS Left-Reverse Rail Keyed Panic Handle D-Shape

• Patent No. D725,457
• UL, ULC, and ANSI/BHMA Certified
• Sharp lines and angles with a smooth round gripping surface
• Available in Alloy 316 brushed or polished stainless steel
• Investment-cast corners for greater strength and consistency
• Crisp transitions at all corners

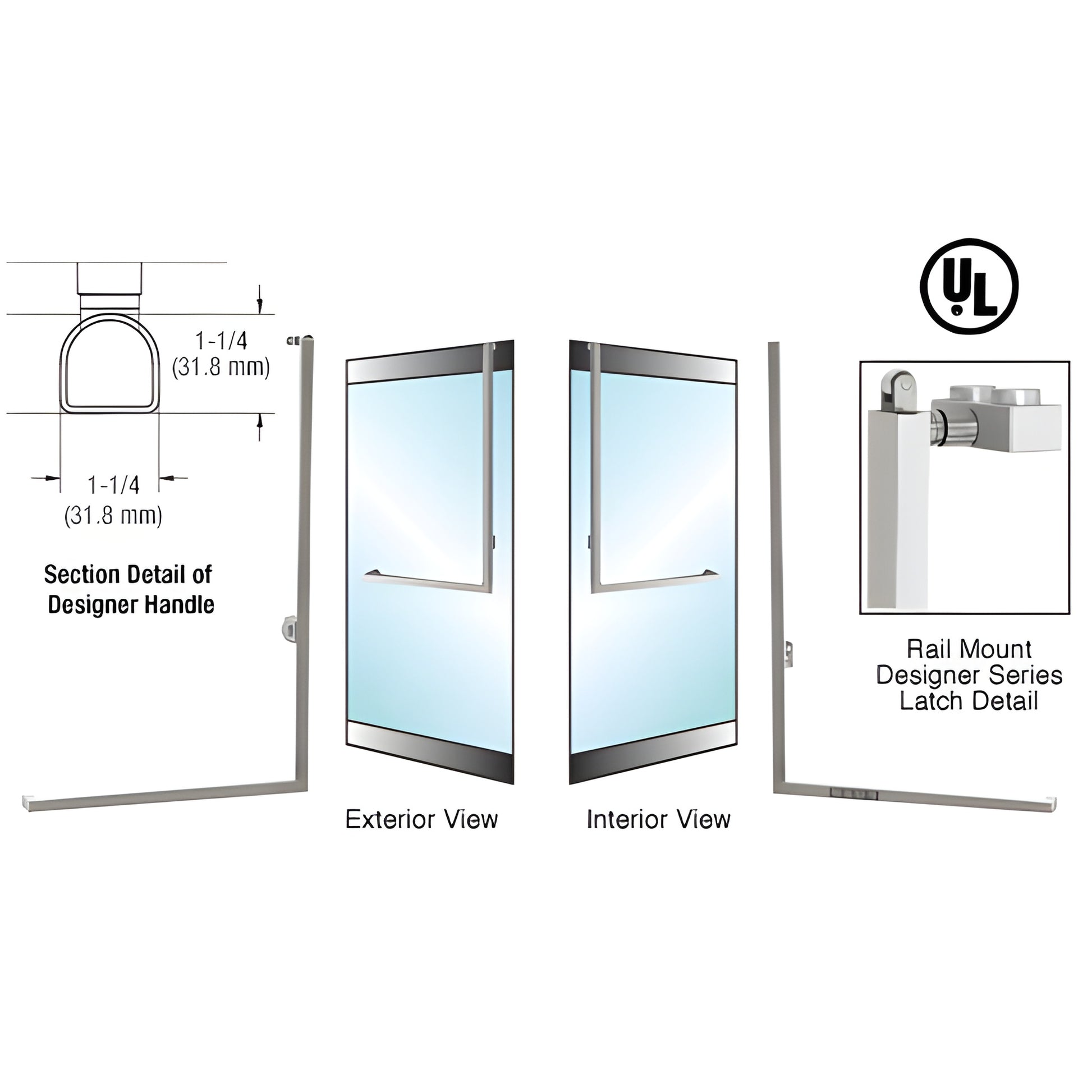

Our Designer Series "D" Shape CRL-Blumcraft® access control handles (SKU DPA100D4RKBS) are engineered for all-glass door applications, combining sharp architectural lines with a comfortable round gripping surface. Available as Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles, this series lets you maintain a consistent, modern appearance across commercial storefronts and interior glass partitions without unnecessary cost.

The DPA100 Series features an internal operating mechanism concealed within the vertical tube. Interior actuation retracts the latch bolt when the horizontal tube is pushed. Optional exterior keyed access, dogging to hold the device open for business hours, and compatibility with electric strikes provide flexible secured-entry options for commercial glass doors and storefronts.

Designed specifically for 1/2", 5/8" or 3/4" (12, 15 or 19 mm) tempered glass, these panic handles maximize viewing area and meet strict Americans with Disabilities Act (ADA) considerations for all-glass doors. The interior tube is a slender 1-1/4" (32 mm) profile that turns upward to clear the lower half of the door, preserving ADA-required clearances.

All DPA100 Series panic handles include a dogging feature for free entry during business hours and support electric strike integration for remote, keyless operation. Custom headers with pre-installed strike hardware are available to simplify installation.

For technical details, installation guidance, or to confirm compatibility with your all-glass door project, contact CRL Technical Sales via our Contact Us page and choose Technical Sales for Commercial Products. The latest catalog pages with complete product details are available here.

Stainless Steel Advisory:
