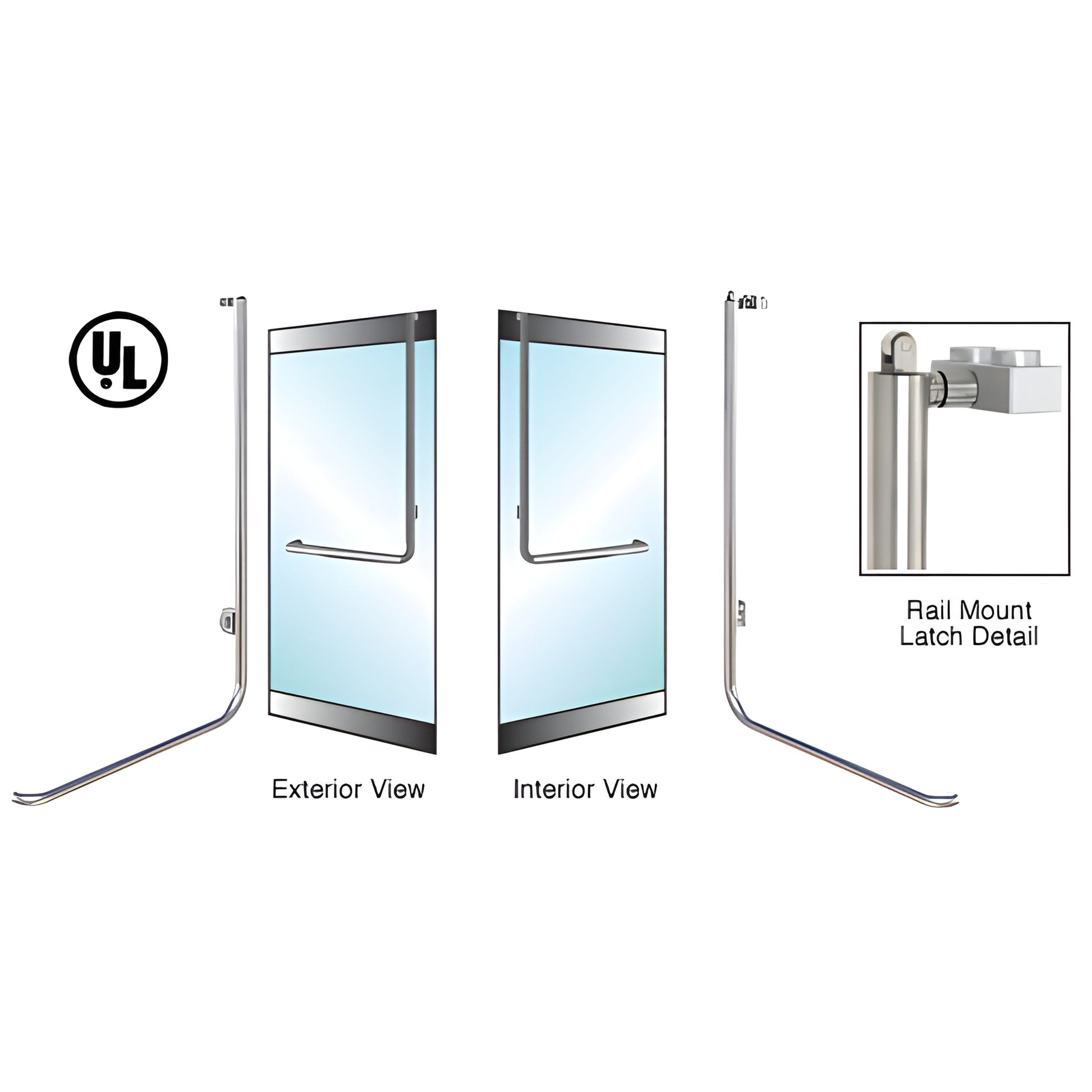

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "D" Exterior Top Securing Panic Handle for 3/4" Glass

• Fits 3/4" (19 mm) tempered glass doors; ideal replacement for older panic devices
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle provides maximum view with a contemporary profile for 3/4" (19 mm) tempered glass doors. Designed for single or double doors, the handles install ready on 36" to 48" (914 mm to 1.22 m) wide doors and 90" to 102" (2.29 to 2.59 m) high without modification. Dogging (locking in the open position) is simple with a slide knob. A door stop/strike must be ordered separately; threshold strike plate available for PA110 Series. Custom header options are available with pre-installed hardware.

SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 3/4" (19 mm)

Glass Fabrication:

• Please contact CRL Technical Sales

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For technical assistance or to confirm custom sizing, contact CRL Commercial Products Technical Sales Department.
