CRL

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access J-Exterior, Top Securing Panic Handle

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access J-Exterior, Top Securing Panic Handle

Regular price $11,527.19 CAD
Regular price Sale price $11,527.19 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# 3P100J4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design for maximum viewing area
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door projects, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to keep a consistent appearance without added expense.

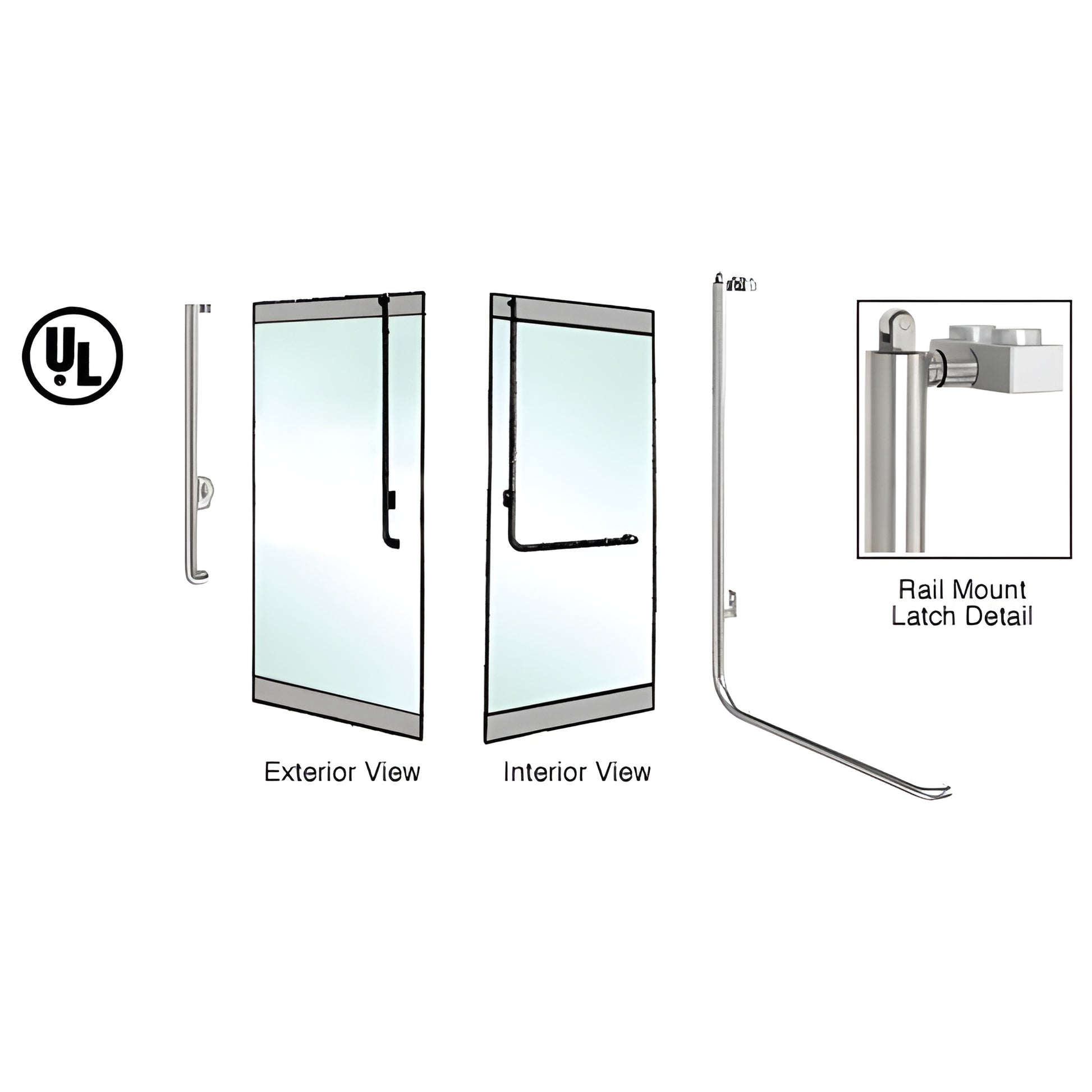

The PA100 Series Panic Handle (SKU: 3P100J4RKBS) is a popular choice for 1/2" or 3/4" tempered glass doors and addresses Americans with Disabilities Act (A.D.A.) clearance requirements. Its slender 1-1/4" (32 mm) interior tube spans the door and turns upward to the top rail, keeping the lower half of the door clear of obstructions for ADA compliance.

The operating mechanism is concealed within the vertical tubing; pushing the interior actuation bar retracts the latch bolt. Features and options include:
  • Optional exterior keyed access device for entry
  • Dogging feature to lock the panic handle open for business hours
  • Compatibility with electric strikes for remote keyless entry
  • Custom headers available with strike hardware pre-installed
These panic handles are engineered for all-glass door security and contemporary aesthetics—ideal long-tail search intents: "PA100 panic handle for tempered glass doors," "ADA-compliant panic handle for glass storefront," and "panic hardware with dogging and electric strike compatibility." For assistance with specifications, finishes, or custom sizing, contact our Technical Sales Department or CRL Customer Service.

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary with monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section.


Ready to order or need a quote? Contact CRL Customer Service or Technical Sales for pricing, lead times, and custom finish options.
