CRL-Blumcraft® Brushed SS Left Reverse Rail Mount Keyed Panic Handle

CRL-Blumcraft® Brushed SS Left Reverse Rail Mount Keyed Panic Handle

Regular price $10,928.54 CAD
Regular price Sale price $10,928.54 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100LS4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design for all-glass doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for 'all-glass' doors, including Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to keep a consistent appearance without added cost.

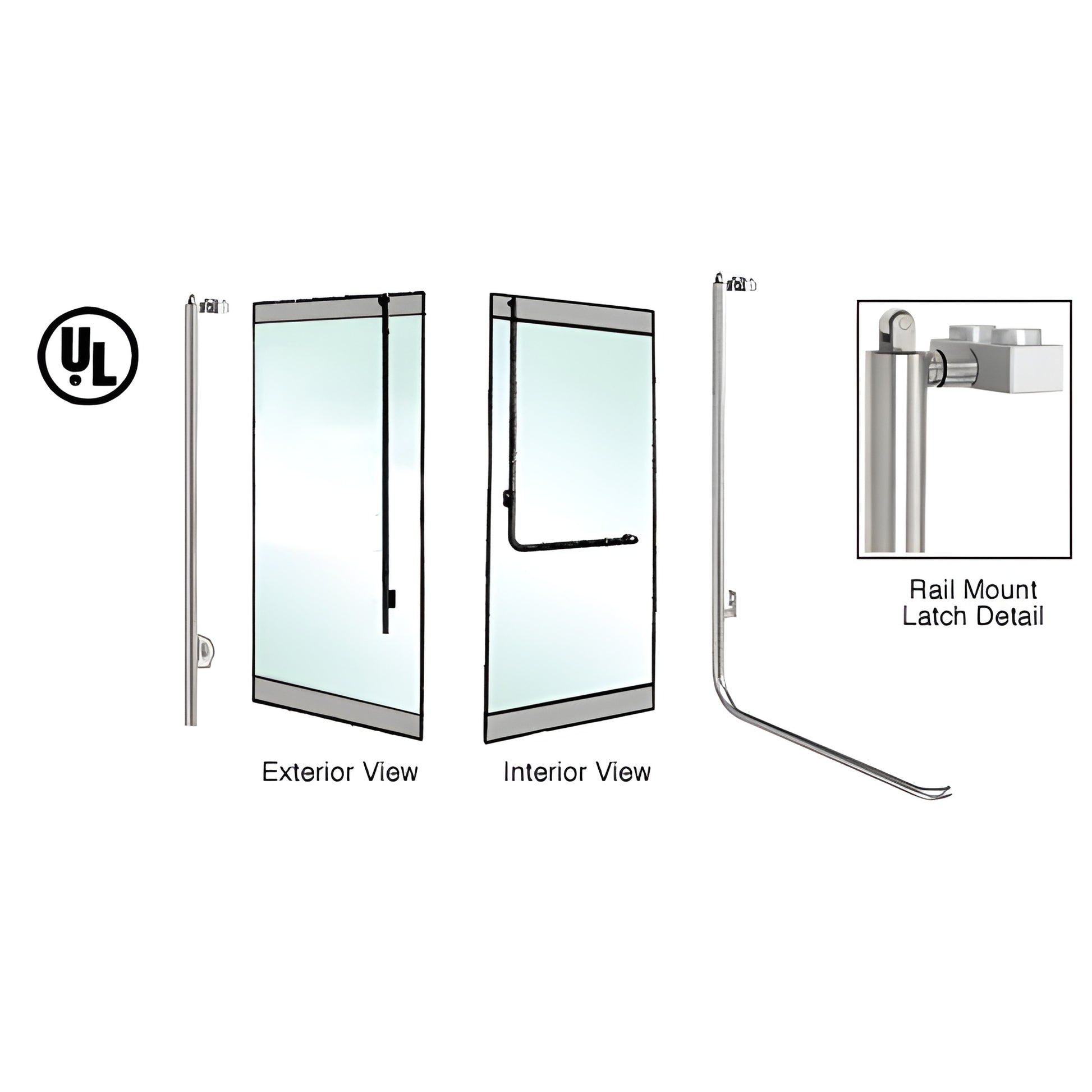

The PA100 Series panic handles (SKU: PA100LS4RKBS) are elegant tubular devices designed for maximum viewing area on 1/2" or 3/4" tempered glass doors and to help meet Americans with Disabilities Act (A.D.A.) requirements. The interior mechanism is concealed within a slender 1-1/4" (32 mm) vertical tube that retracts the latch when the interior actuation bar is pushed, keeping the lower half of the door free of obstructions for ADA compliance.

Key differentiators:
  • Integrated dogging feature — slide a lever to lock the device open for free access during business hours
  • Optional exterior keyed access device for secure entry
  • Compatible with Electric Strikes for remote keyless entry
  • Custom headers available with strike hardware pre-installed
For secure, code-compliant all-glass door hardware with multiple finish and mounting options, view full CRL-Blumcraft Access Handle details in our catalog here.

Most shipping weights are approximate. If you need exact weights to determine shipping costs before ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Contact CRL Technical Sales for Commercial Products via the Contact Us page for specifications, pricing, or to place a custom order.
