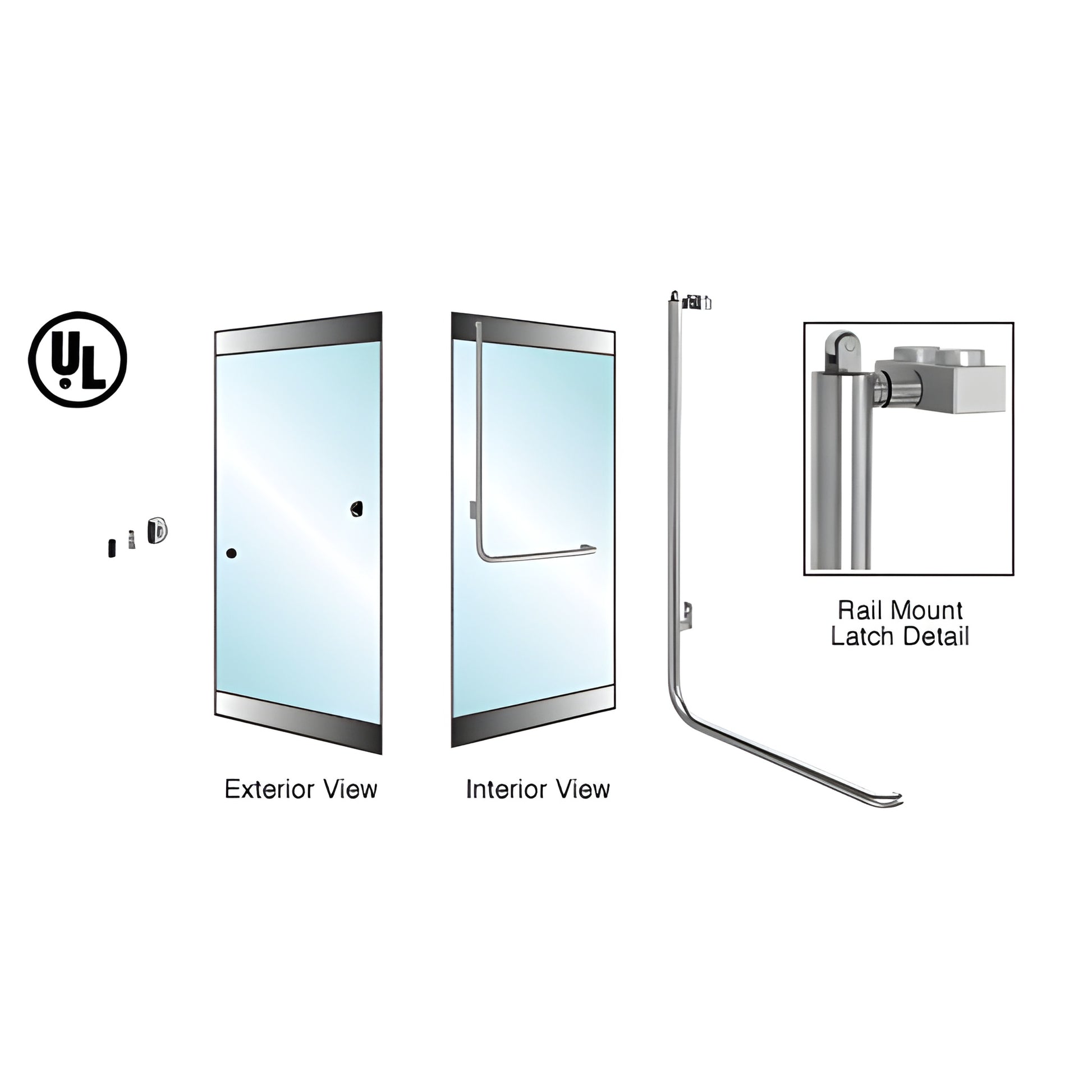

• Brushed stainless tubular panic handle (PA100Z4RKBS) for 1/2" glass, rail-mount, left-hand reverse, UL certified.
1 1

CRL

CRL-Blumcraft® Left Reverse Brushed SS Keyed Z Rail Panic Handle

CRL-Blumcraft® Left Reverse Brushed SS Keyed Z Rail Panic Handle

$9,846.12 CAD
$9,846.12 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100Z4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for 'all-glass' doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent aesthetic without extra cost.

The vertical tubular mechanism in our panic handles retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a dogging feature for daytime unlocked operation, and compatibility with electric strikes provide flexible secured-entry and remote/keyless options.

Designed for maximum viewing area and a contemporary look, these tubular panic handles fit 1/2" or 3/4" (12 or 19 mm) tempered glass doors and help meet Americans with Disabilities Act (A.D.A.) clearance requirements. The interior tube measures 1-1/4" (32 mm) and turns upward to keep the lower door clear of obstructions.

The PA100 Series is CRL-Blumcraft’s most popular panic handle line. All PA100 Series panic handles include a dogging lever to lock the device open during business hours and are compatible with electric strikes; custom headers with strike hardware installed are available. SKU: PA100Z4RKBS.

For full product specifications and configuration options, contact CRL Technical Sales from the home page (Contact Us → Technical Sales for Commercial Products) or view the latest catalog pages here.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Differentiators: UL/ULC/ANSI-BHMA certification, ADA-conscious tubular design, multiple finish options, quick custom sizing, and electric-strike compatibility for secure, flexible access control.

Ready to specify your PA100 series panic handle (SKU: PA100Z4RKBS)? Contact CRL or request
