CRL-Blumcraft Brushed SS RH Reverse Keyed Exterior Panic Handle

• Patent No. D725,457
• UL, ULC, and ANSI/BHMA Certified
• Elegant tubular design for minimal visual obstruction
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic exit hardware engineered for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance while reducing cost on non-operating doors.

The PA100 Series panic handles feature an internal operating mechanism concealed within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device supports keyed entry; a dogging feature allows the device to remain unlocked during business hours. Electronic strikes and custom headers with strike hardware pre-installed are available for secure, remote-operated entry solutions.

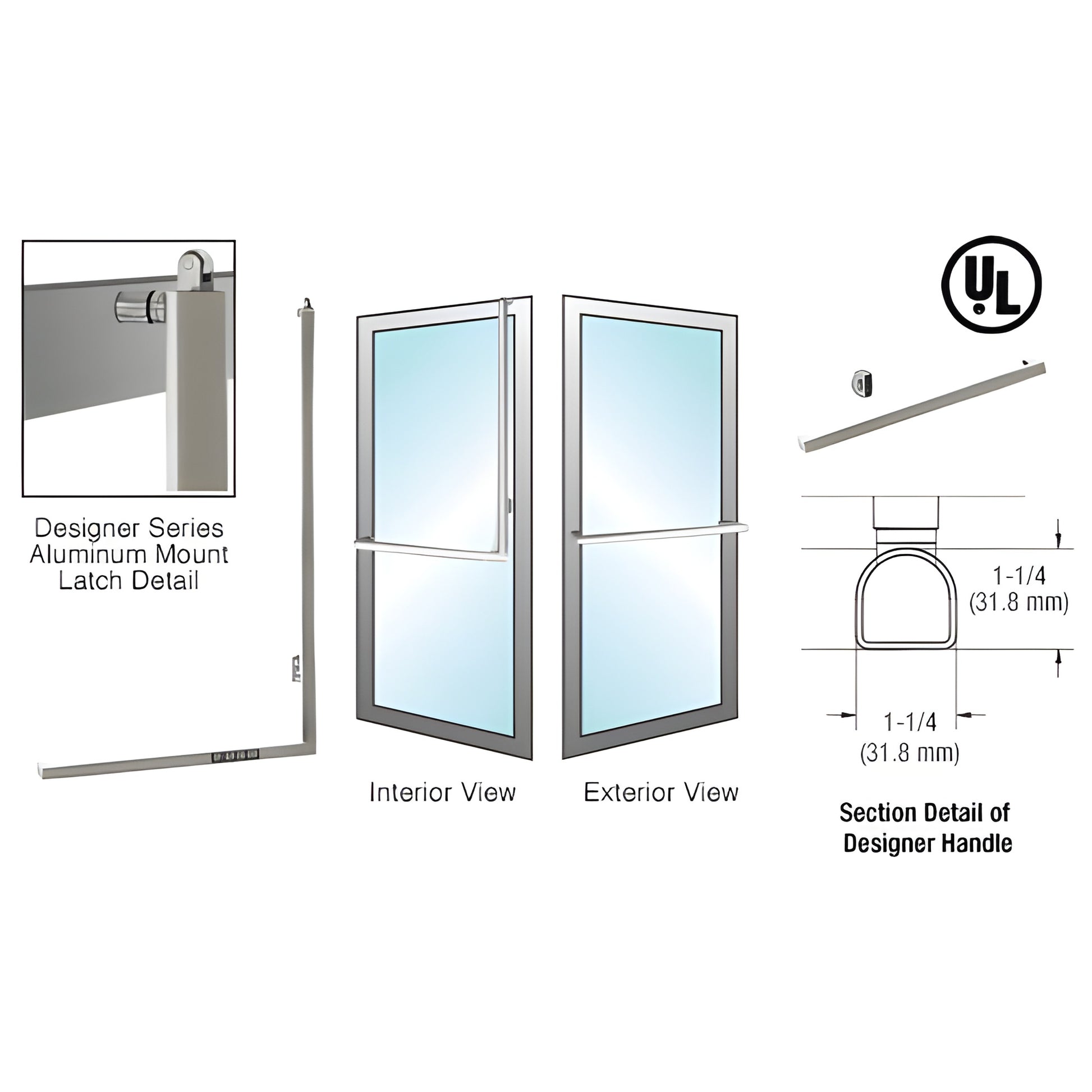

Designed for maximum viewing area and ADA compliance on tempered glass doors, the interior portion of the PA100 is a slender 1-1/4" (32 mm) tube that spans the door and gently turns upward to the top edge, keeping the lower glass unobstructed to meet ADA clearances.

Key differentiators:

• ADA-compliant tubular panic handle for 1/2" and 3/4" tempered glass doors
• Concealed operating mechanism for a clean, contemporary appearance
• Dogging feature for daytime free access and compatibility with electric strikes
• Wide finish selection plus special-order custom finishes and fast custom sizing

SKU: DPA100A3AKBS

For complete product details and catalog pages, see the CRL-Blumcraft Access Handle catalog here.
