CRL-Blumcraft Brushed Stainless RH Reverse Glass Keyed Panic Handle
CRL-Blumcraft Brushed Stainless RH Reverse Glass Keyed Panic Handle
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA310FS3GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Curved crash bar ends for flush fit on glass doors
- Two-piece, ultra-narrow crash bar eliminates alignment issues
- Simplifies and expedites installation on glass doors
- Mounts onto 1" insulating glass and monolithic glass
- Tested to ANSI/BHMA Grade 1 standards

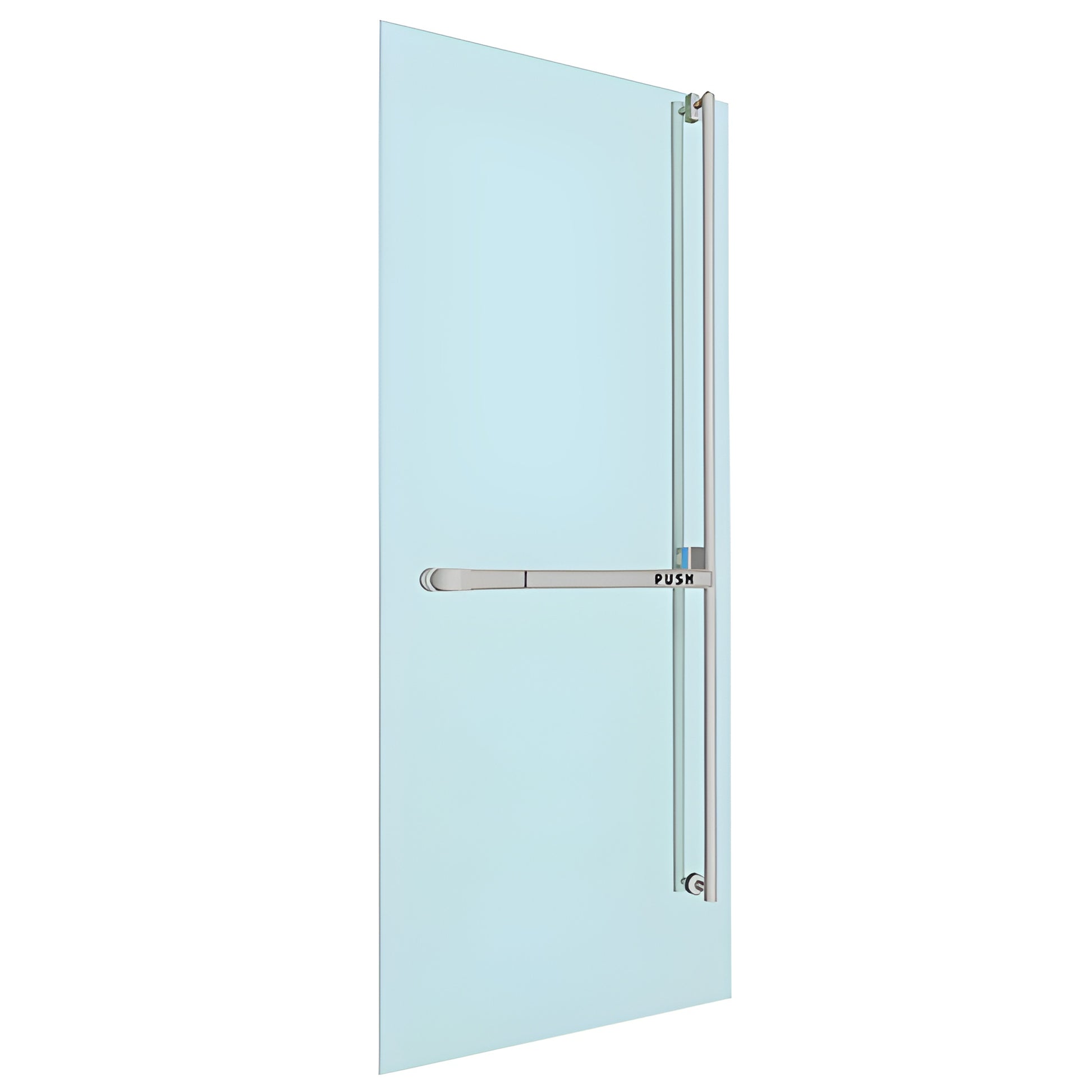

The Blumcraft PA-310 Panic Device (SKU: PA310FS3GKBS) features an innovative two-piece design with an independent ultra-narrow crash bar that securely attaches to the slim vertical panic component. Achieve full-length ladder-pull aesthetics (10" above finished floor) on interior and exterior glass doors using this panic handle system—ideal for storefront and thermal glass doors.
The operating mechanism, concealed within the vertical tubing of the panic handle, retracts the latch bolt when the interior actuation bar is pushed. Optional accessories include an exterior Keyed Access Device, a special dogging feature to hold doors unlocked during business hours, and Electronic Strikes for controlled, secured entry—providing multiple entry and access-control options for commercial glass doors.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Order the PA-310 Panic Device (PA310FS3GKBS) for a Grade 1 panic solution for glass doors—contact us to get a quote or technical support.
Specifications
CAD Drawings - pdf
