• PA100 Series brushed stainless panic handle for 1/2" tempered glass doors, exterior keyed, ADA-compliant (SKU PA100Z3GKBS)
1 1

CRL

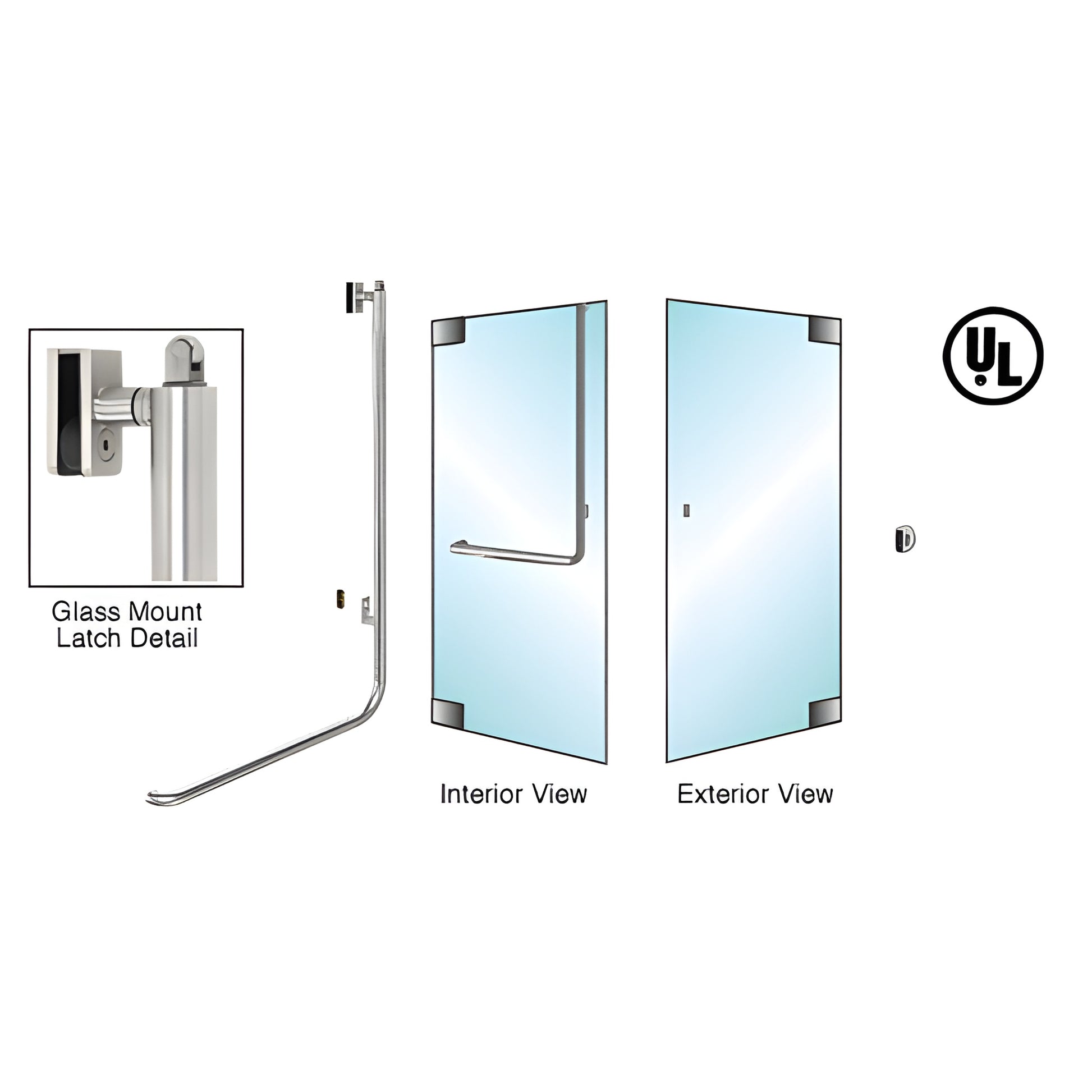

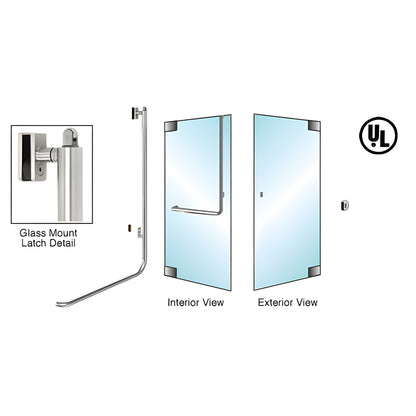

CRL-Blumcraft® Brushed SS RH Reverse Glass Keyed Z Panic Handle

CRL-Blumcraft® Brushed SS RH Reverse Glass Keyed Z Panic Handle

$9,661.68 CAD
$9,661.68 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100Z3GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design for contemporary glass entrances
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic exit hardware for all-glass doors. Our range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent appearance without extra cost.

The operating mechanism is concealed inside the vertical tubing of our panic handles to retract the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access, a special dogging feature for daytime unlocked operation, and electric strike compatibility provide flexible secured-entry options.

Designed for maximum viewing area on 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the PA100 Series combines a slender 1-1/4" (32 mm) interior tube with an upward return to keep the lower door area clear to meet ADA requirements. All PA100 Series panic handles include a dogging lever to lock the device open for business hours and work with electric strikes for remote, keyless entry.

SKU: PA100Z3GKBS — PA100 Series panic handle for tempered glass doors, ADA-compliant glass door panic hardware.

For full product details and installation options, view the CRL-Blumcraft® Access Handle catalog pages here or contact CRL Technical Sales via Contact Us > Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.


Order the PA100Z3GKBS PA100 Series panic handle today for ADA-compliant, tempered-glass door emergency egress—contact CRL for pricing and customization.
