CRL-Blumcraft D-Key RH Brushed Stainless Low-Profile Panic Handle

• UL, ULC, and ANSI/BHMA certified panic hardware for commercial glass doors
• Elegant tubular design maximizes viewing area on all‑glass doors
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for 'all-glass' door applications, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across a project without added hardware costs.

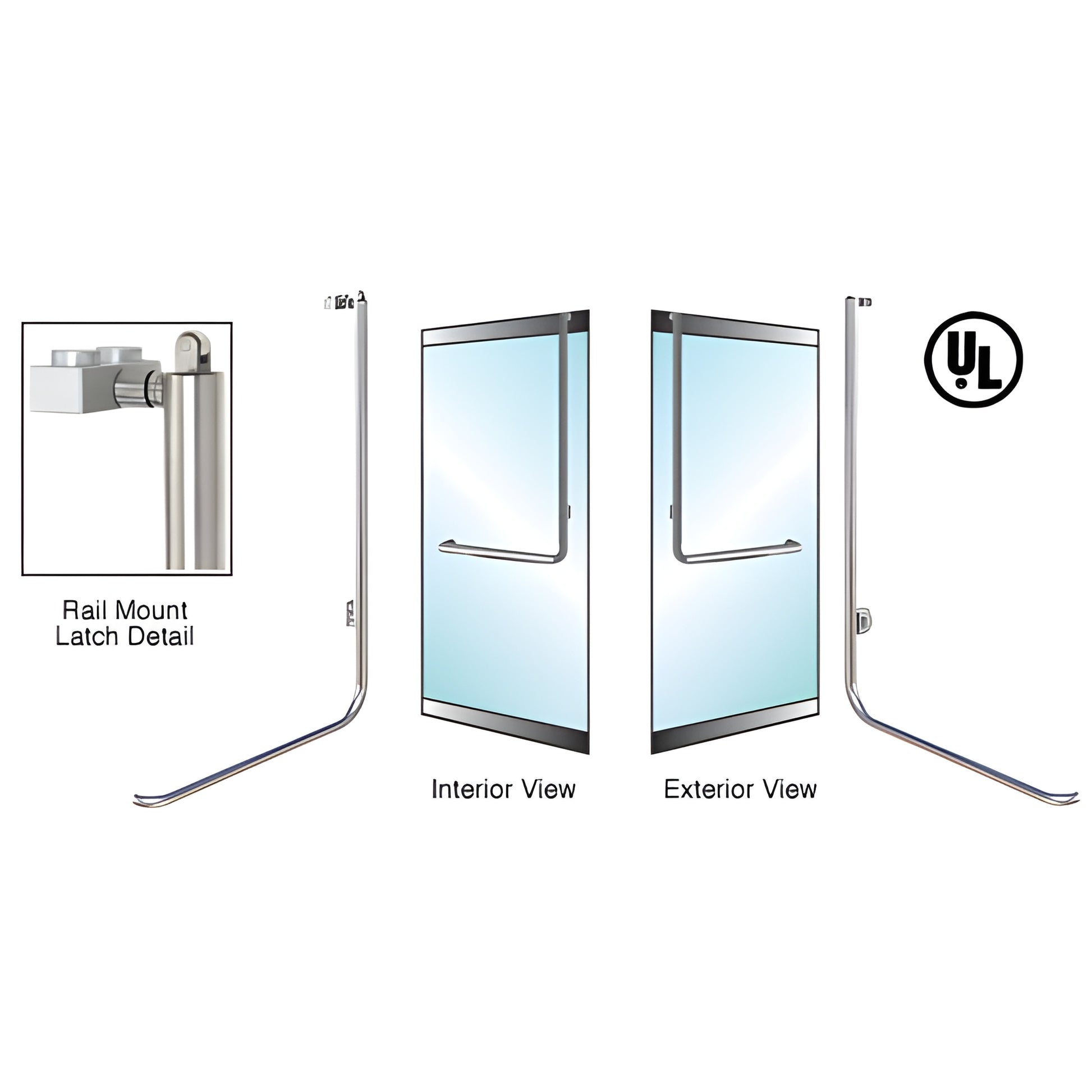

The PA100 Series panic handle (SKU PA100D3LKBS) is a popular, ADA-conscious solution for commercial tempered glass doors. Its concealed operating mechanism in the vertical tubing retracts the latch when the interior actuation bar is pushed. The interior tube is a slender 1-1/4" (32 mm) profile that runs across the door then turns upward to clear the lower door area required by ADA guidelines, preserving clear access and sightlines.

Key differentiators:

• ADA-compliant tubular design that minimizes obstructions
• 'Dogging' feature slides to lock the device in the open position for business hours
• Optional exterior keyed access device and electronic strike compatibility for remote keyless entry
• Custom headers available with strike hardware preinstalled

CRL offers panic handles specifically engineered for 1/2" and 3/4" tempered glass doors and provides UL/ULC/ANSI-BHMA certifications for commercial code compliance. For installation assistance or technical details, contact CRL Technical Sales from the home page (Contact Us > Technical Sales for Commercial Products). The latest catalog pages with complete product details are available here.
