CRL-Blumcraft® Brushed Stainless Right-Hand Keyed Egress Rail Handle
CRL-Blumcraft® Brushed Stainless Right-Hand Keyed Egress Rail Handle
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EG100A3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Locking
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL and ULC Recognized Component
- Ideal for maintaining security and aesthetics on all‑glass entrances
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for all‑glass door systems, including Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles. Matching dummy handles are available to preserve a consistent appearance across projects without added hardware cost.

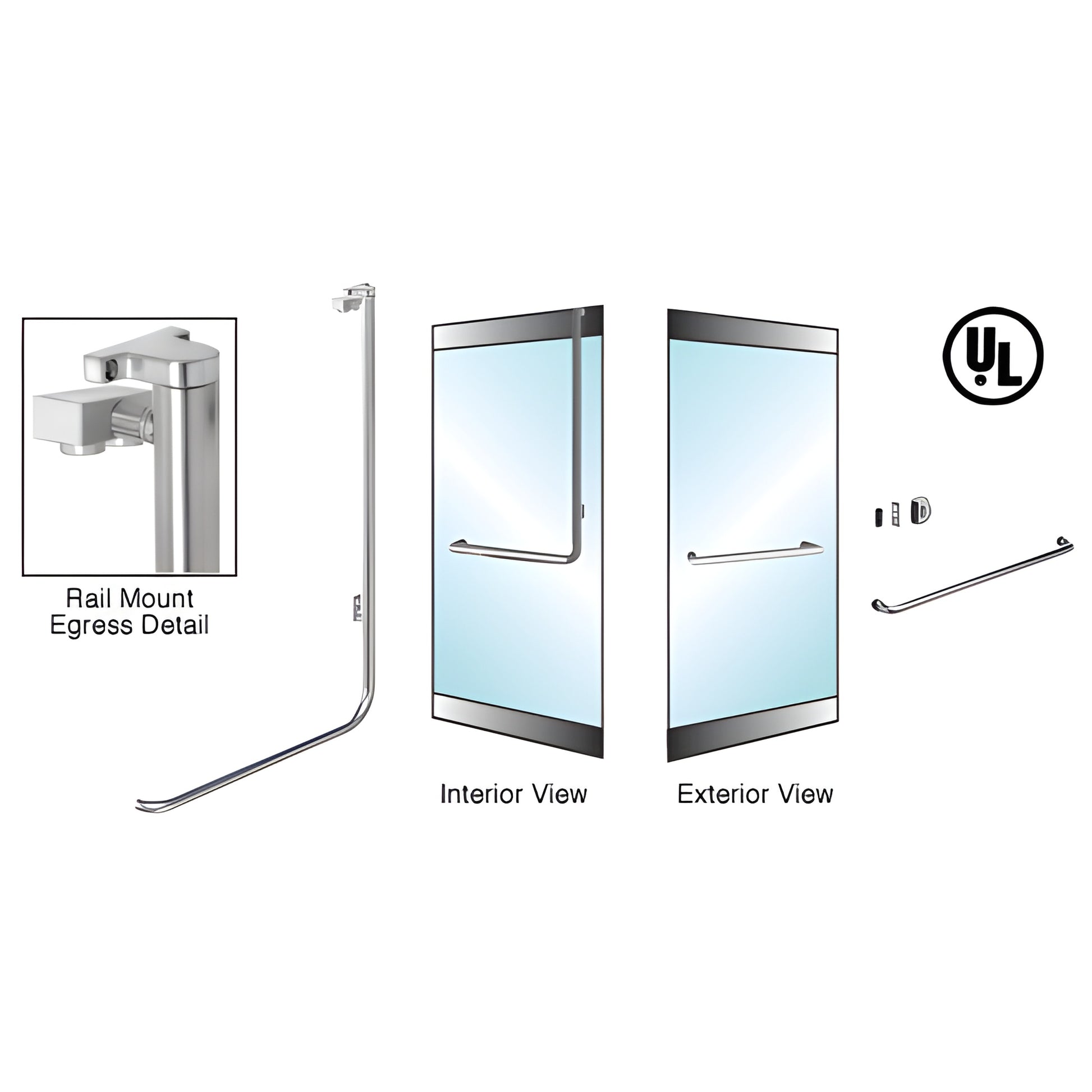

The EG100 Series Electronic Egress Control Handle (SKU: EG100A3RKBS) integrates an electronic switch concealed in the vertical tubing to release magnetic locks at the top or bottom of the door when the interior actuation bar is pressed. Designed for maximum viewing area, these tubular egress handles maintain the contemporary look of 1/2" and 3/4" tempered glass doors while meeting A.D.A. requirements for unobstructed lower door areas.
These economical electronic egress handles are suitable where secure access control and safe exit are required, and are part of CRL’s Panic and Deadbolt Handle family that complies with applicable A.D.A. codes. Consult local building codes for the acceptability of electro‑magnetic locking hardware.
For complete product details and accessory options, view the CRL-Blumcraft® Access Handle catalog pages here or contact CRL Technical Sales via the Contact Us page.
Product Warning:
Must specify with or without Keyed Access Device.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order or request a quote for EG100A3RKBS today to specify finish, size, and keyed access options.
Specifications
CAD Drawings - pdf
