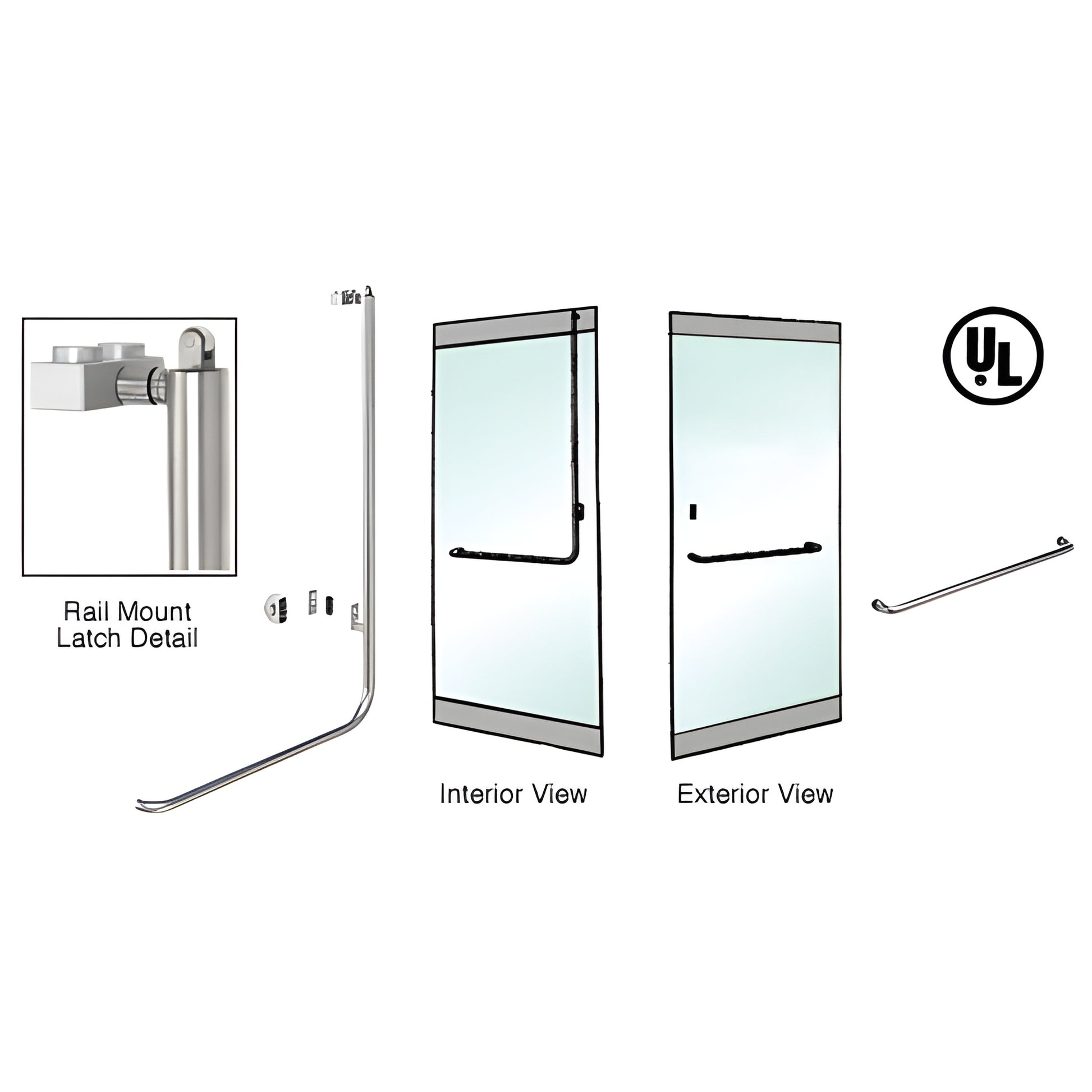

• PA100A3RKBS brushed stainless 1-1/4 in rail-mount panic handle for glass doors; interior/exterior views, UL listed.
1 1

CRL

CRL-Blumcraft Brushed Stainless RH Reverse Rail Panic Handle Keyed A

CRL-Blumcraft Brushed Stainless RH Reverse Rail Panic Handle Keyed A

$10,896.79 CAD
$10,896.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100A3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles optimized for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent project appearance. SKU: PA100A3RKBS.

The PA100 Series Panic Handles are ADA-compliant solutions for glass door applications, featuring a concealed operating mechanism within the vertical tube that retracts the latch when the interior actuation bar is pushed. Designed to maximize viewing area, the slender 1-1/4" (32 mm) interior tube stretches across the door then turns upward to keep the lower half of the door clear of obstructions required by ADA codes.

Key differentiators:
  • Concealed vertical-tube mechanism for a clean, contemporary look on 1/2" or 3/4" tempered glass doors
  • Integral dogging feature locks the device in the open position for free access during business hours
  • Optional exterior keyed access device and compatible electric strikes enable secure, remote or keyed entry
  • Custom headers available with strike hardware pre-installed for easier specification and installation
CRL also offers Panic Handles with electronic strike compatibility for keyless entry and a variety of secured entry options. For full product specifications and CAD details, see the latest catalog pages for CRL-Blumcraft® Access Handles here.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor.

Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.


Need help specifying PA100 Series panic handles for your glass entrance? Contact CRL Technical Sales via the
