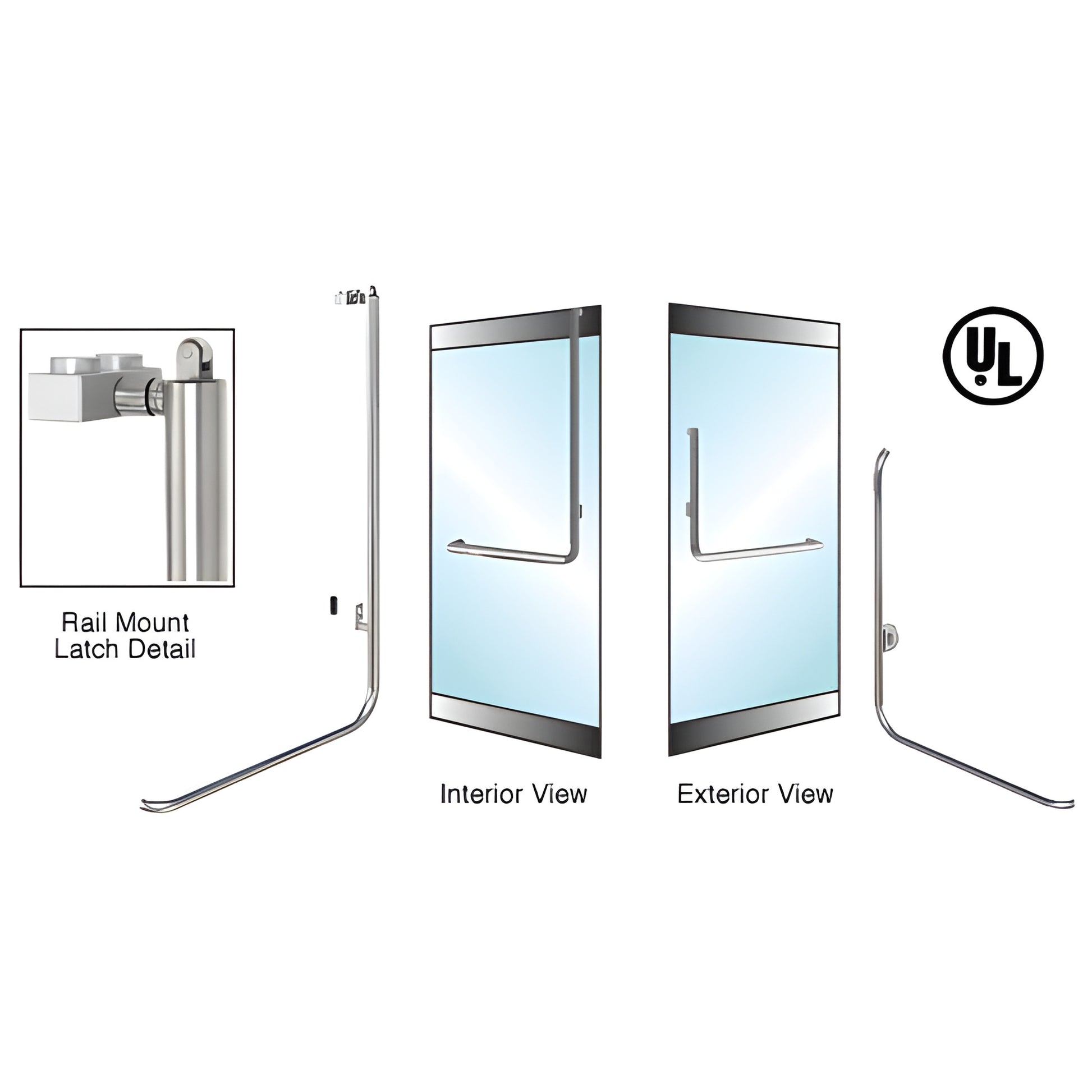

• Brushed stainless steel tubular panic exit handle, rail-mount for 3/4 tempered glass doors, right-hand reverse
1 1

CRL

CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access "B" Exterior, Top Securing Panic Handle for 3/4" Glass

CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access "B" Exterior, Top Securing Panic Handle for 3/4" Glass

$11,454.64 CAD
$11,454.64 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100B3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • Designed for 3/4" (19 mm) tempered glass doors — ideal replacement for older panic devices
  • Custom sizes ship within one to two weeks
  • Optional keyed access and electric strike available
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P100B3RKBS) maximizes sightlines with a contemporary tubular design for 3/4" (19 mm) tempered glass doors. Ready-to-install for single or double doors 36" to 48" (914 mm to 1.22 m) wide and 90" to 102" (2.29 to 2.59 m) high without modification. Easy "dogging" (locking device open) with a simple slide knob. Door stop/strike ordered separately. Threshold strike plate available for PA110 Series. Custom headers available with pre-installed hardware.

SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) diameter 385 Bronze or 304 Stainless Steel tubing (2 mm thick)
Glass Thickness:
  • 3/4" (19 mm)
Glass Fabrication:
ORDERING OPTIONS
When ordering panic handles specify:
  • PA100 or PA110 Series
  • Right or Left hand (as viewed from the outside)
  • Rail Mount (for doors with full-length rails) or Glass Mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Finish: Brushed or Polished Stainless, Satin or Polished Brass
  • Optional Threshold Strike Plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in
