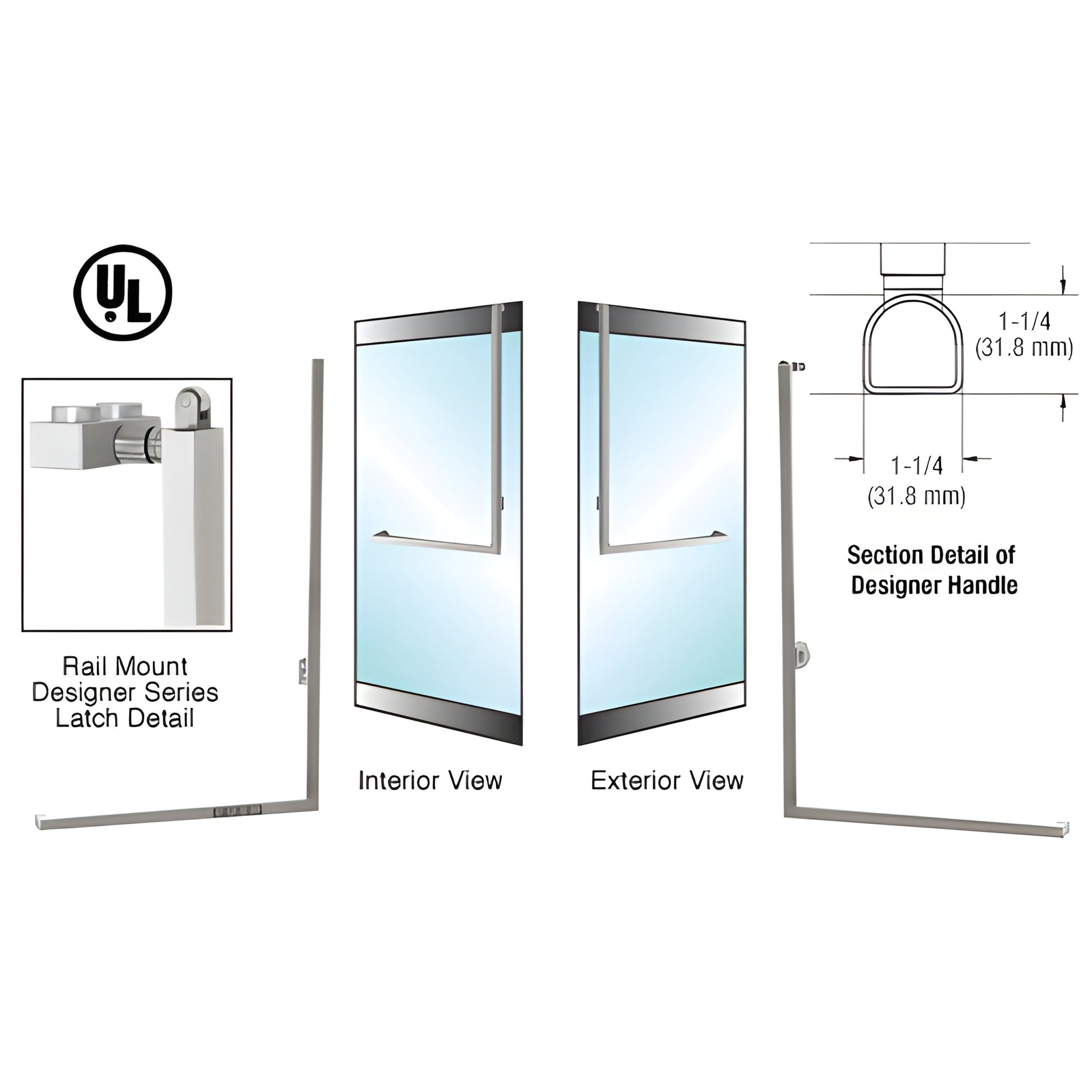

• DPA100D3RKBS brushed stainless D-shape 1-1/4 in rail-mount panic handle for 1/2 in glass doors, interior and exterior views
1 1

CRL

CRL-Blumcraft® Stainless Right-Hand Rail Mount Keyed D Panic Handle

CRL-Blumcraft® Stainless Right-Hand Rail Mount Keyed D Panic Handle

$16,508.47 CAD
$16,508.47 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DPA100D3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (D-Shape) (32 mm (D-Shape))
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 316)

Overview

  • Patent No. D725,457
  • UL, ULC, and ANSI/BHMA Certified
  • Sharp lines and angles with a smooth round gripping surface
  • Available in Alloy 316 brushed or polished stainless steel
  • Investment cast corners for greater strength and consistency
  • Crisp transitions at all corners

Our Designer Series "D" Shape CRL-Blumcraft® access control handles are engineered for all-glass door applications, combining sharp architectural lines with a smooth round gripping surface. Available configurations include Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to keep a consistent appearance across a project without extra operating cost. SKU: DPA100D3RKBS.

The operating mechanism is concealed within the vertical tubing of the Panic Handle and retracts the latch bolt when the interior actuation bar is pushed. Optional features and integrations include an exterior keyed access device, a dogging feature to hold the device open during business hours, and compatibility with electric strikes for remote or keyless entry. Custom headers with strike hardware installed are available.

CRL builds this line with the all-glass door in mind, maximizing viewing area and delivering a contemporary aesthetic for 1/2", 5/8" or 3/4" (12, 15 or 19 mm) tempered glass doors. The interior portion is a slender 1-1/4" (32 mm) tube that sweeps upward to the top of the door to keep the lower half clear for ADA compliance. The DPA100 Series is a popular ADA-conscious panic handle solution for all-glass entrances.

All DPA100 Series panic handles include a dogging feature to lock the device in the open position and can be used with electric strikes for secured entry options.

For additional product details, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete CRL-Blumcraft® access handle specifications can be found here.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.


Need assistance specifying DPA100D3RKBS or selecting ADA-compliant panic hardware for tempered

Specifications

Warranty
Handle Warranty
