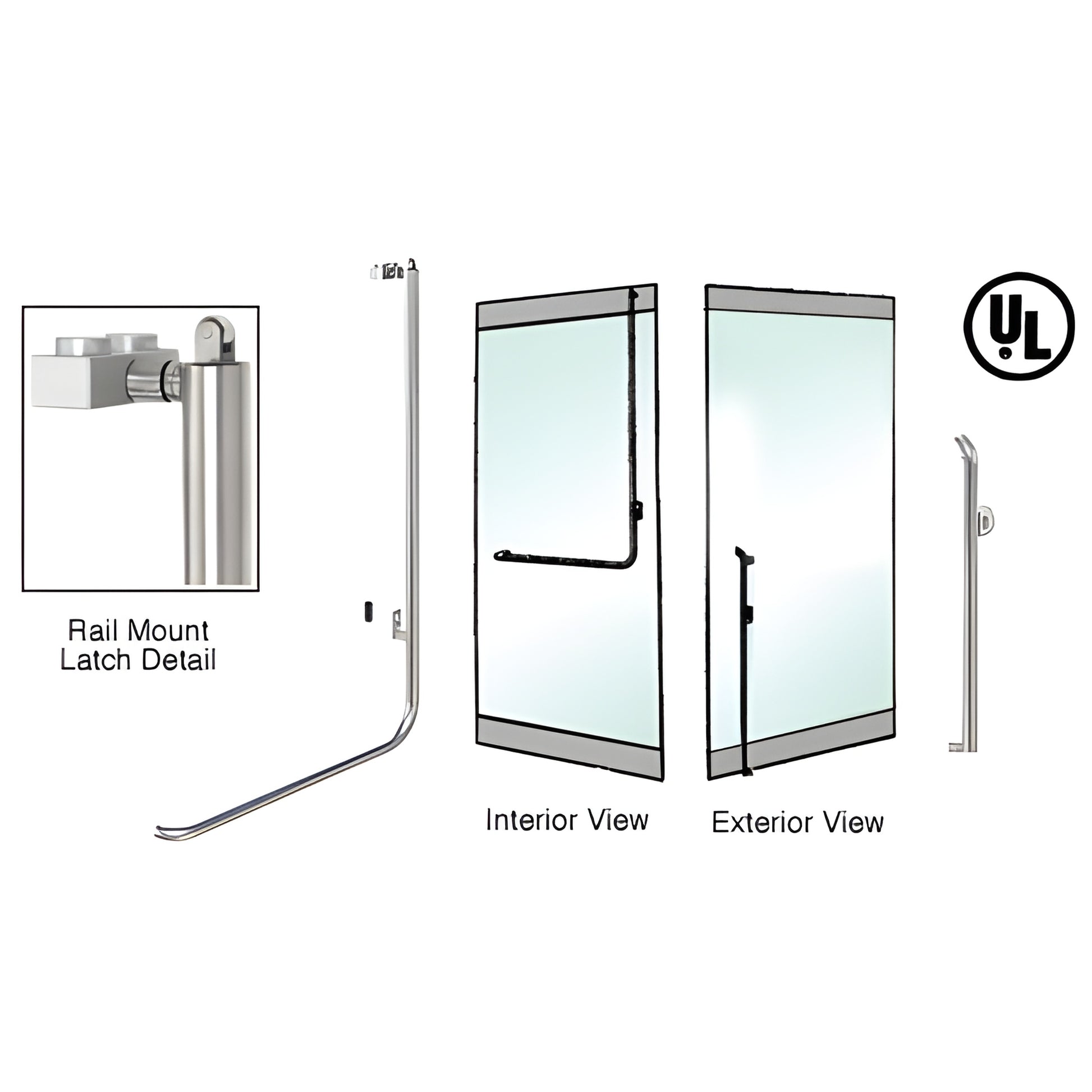

CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle

• Fits 3/4" (19 mm) tempered glass doors; ideal replacement for older panic devices
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle provides maximum view with a contemporary look for 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Designed for single or double doors, the handles are ready-to-install for 36" to 48" (914 mm–1.22 m) wide doors with heights from 90" to 102" (2.29–2.59 m) without modifications. Dogging (locking in the open position) is simple with a slide knob. A separate Door Stop/Strike must be ordered. Threshold strike plate available for PA110 series. Custom header options available with pre-installed hardware. SKU: 3P100K3RKBS


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 1/2" or 3/4" (12 or 19 mm)

Glass Fabrication:

• Please contact CRL Technical Sales

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 series
• Exterior handle option
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 series only)

Contact CRL Technical Sales Department for specification details and pricing on these handles for all-glass entrance doors.
