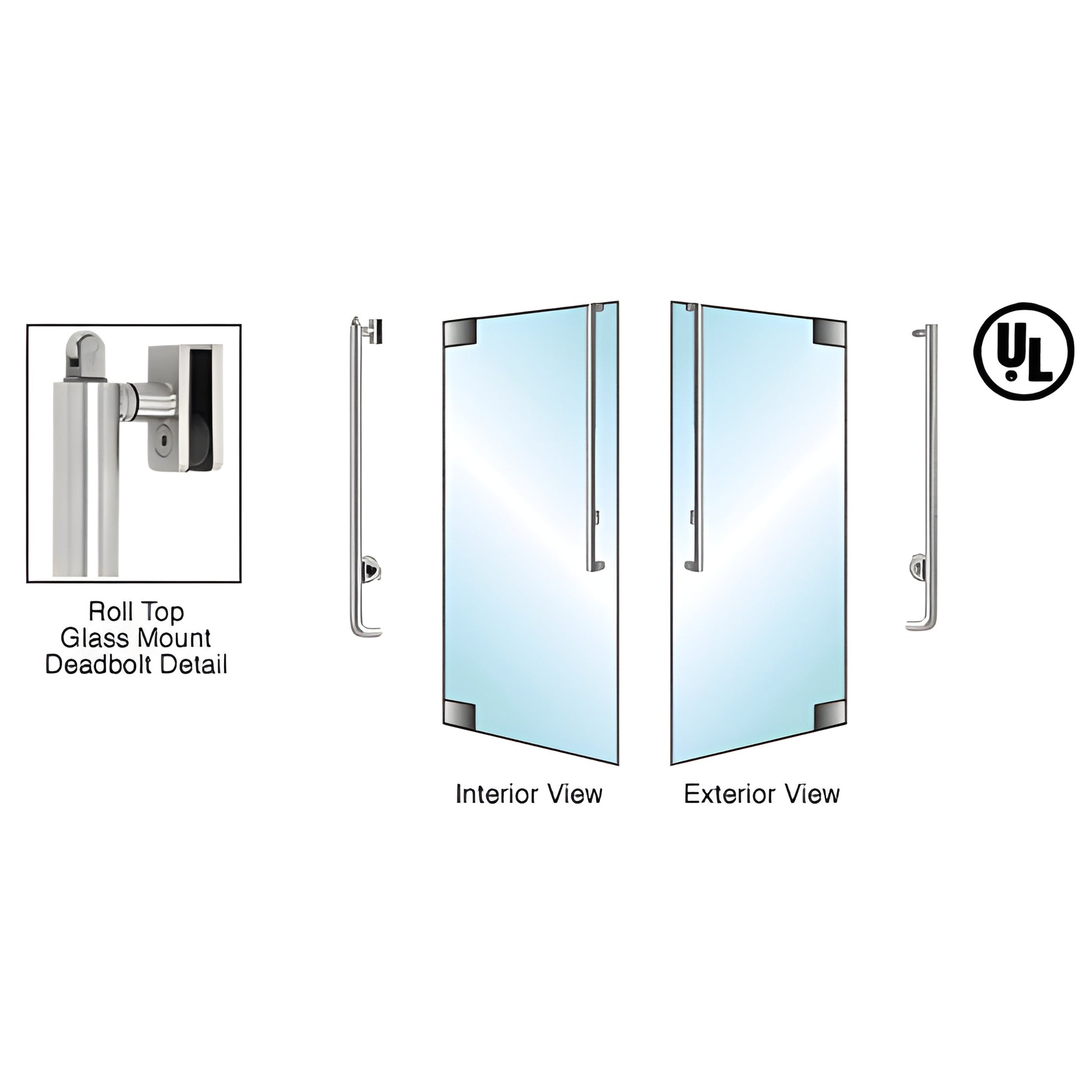

• Brushed stainless steel DBR160J3G1BS all-glass door deadbolt handle, 1/2" glazing, right-hand reverse, cylinder/thumbturn
1 1

CRL

CRL-Blumcraft Brushed Stainless Glass Deadbolt, Thumbturn, Right-Hand

CRL-Blumcraft Brushed Stainless Glass Deadbolt, Thumbturn, Right-Hand

$11,276.25 CAD
$11,276.25 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DBR160J3G1BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder / Thumbturn
Latching
Top
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt Roller

Overview

  • UL Classified
  • Easy Secure Access
  • ANSI/BHMA Certified
  • DBR160 Series can be used with an electric strike (electronic strike compatible)
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and deadbolt handles for all-glass doors, including panic devices, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across projects while reducing cost.

The DBR160 Series (SKU: DBR160J3G1BS) features a concealed locking mechanism within the vertical tubing for clean aesthetics and multiple keying options. An optional top latch roller bolt enables use with electronic strikes for controlled entry systems—making these ideal deadbolt handles for tempered glass storefronts and commercial glass entrances.

Highlights and differentiators:
  • UL classified and ANSI/BHMA certified for commercial applications
  • Concealed deadbolt mechanism for streamlined appearance
  • Electric strike compatibility with optional top latch roller bolt
  • Multiple finish options plus special-order custom finishes
  • Fast turnaround on custom sizes (1–2 weeks)
For technical assistance or to view full product specifications and the latest catalog pages, contact CRL Technical Sales via Contact Us on the home page and select Technical Sales for Commercial Products. The current catalog pages for CRL-Blumcraft® Access Handles are available here.

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Specifications

CAD Drawings - pdf
Blumcraft Panic Handles System CAD Drawings.pdf
