- Concealed Pivots and Lock for Added Security
- Accepts Standard Mortise Cylinder

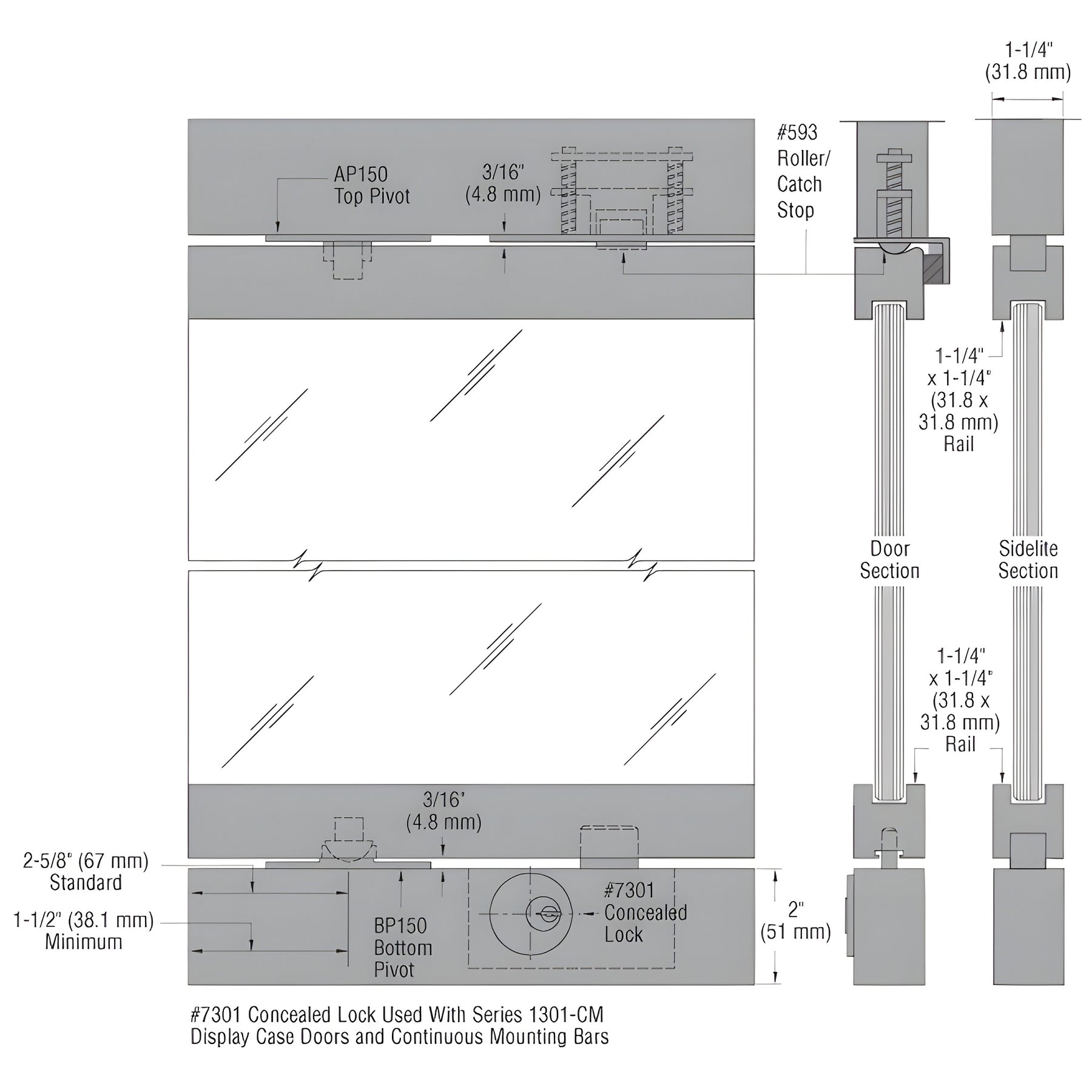

CRL-Blumcraft® 1301-CM Series Display Case Doors and Sidelites are supplied fully glazed, and have Continuous Mounting Bars top and bottom to conceal the pivots and locks. The mounting bars are installed into display cases provided by others, and then the doors mount onto the bars. This eliminates the need for special prepping and mortising for the pivots and locks into the display case.
The surface of the door rails are kept clear by moving the lock and mortise cylinder into the Continuous Mounting Bar. Locks can be located at top, bottom or both for added security. 1301 Series Display Case Doors and Sidelites are available with 3/8", 1/2", 5/8" or 3/4" (10, 12, 16 or 19 mm) glass, either tempered or laminated, in clear, tinted, low-iron, anti-reflective, or specialty glass upon request. For additional information contact our Technical Sales Department.
Product Warning
STRUCTURAL DISCLAIMER
- All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
