CRL-Blumcraft® Oil-Rubbed Bronze Left-Hand Reverse Keyed Panic Handle

CRL-Blumcraft® Oil-Rubbed Bronze Left-Hand Reverse Keyed Panic Handle

Regular price $17,388.32 CAD
Regular price Sale price $17,388.32 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100F4AK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular panic handle design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

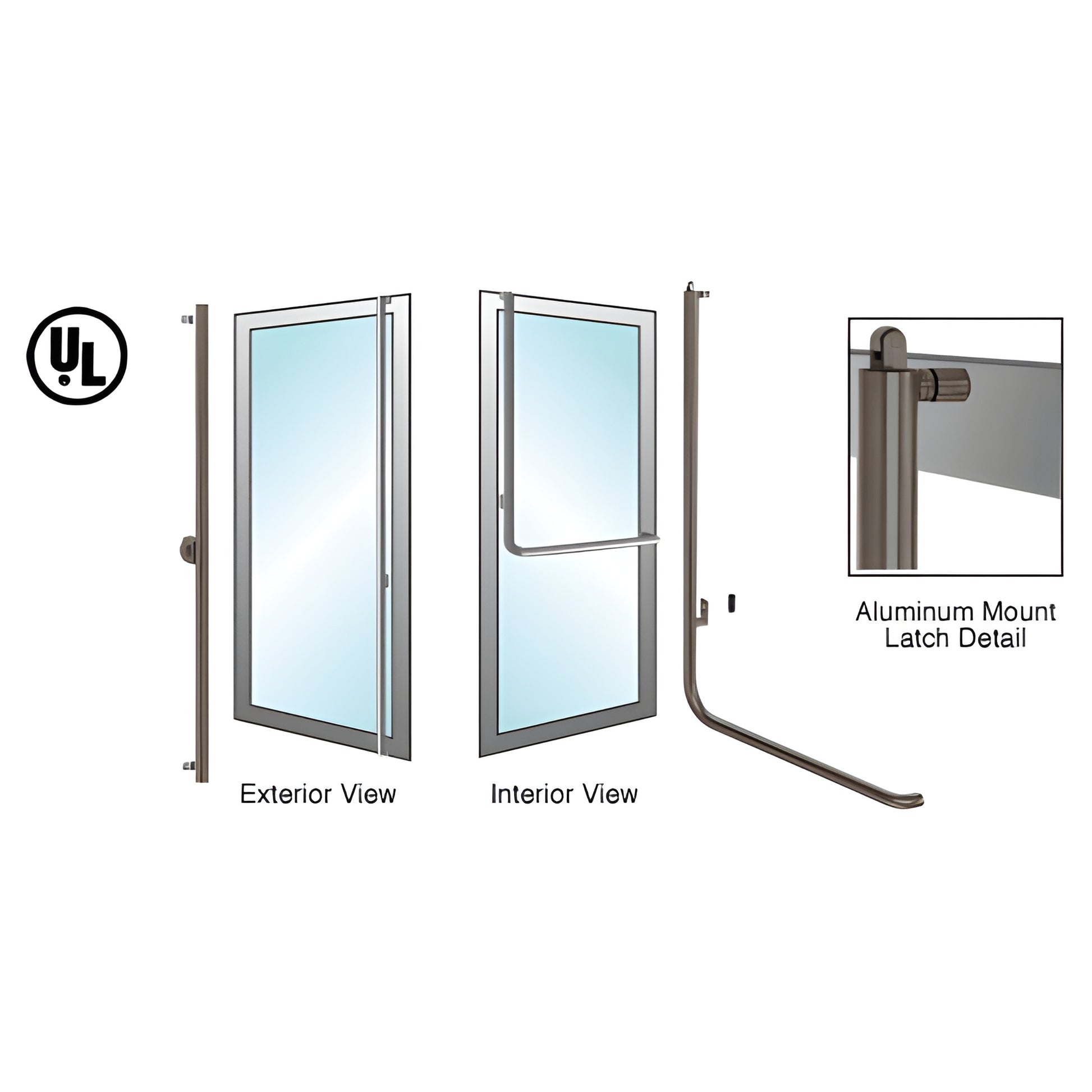

CRL-Blumcraft® PA100 Series (SKU: PA100F4AK0RB) manufactures a complete line of access control handles and panic hardware optimized for all-glass commercial doors. Our PA100 panic handles are ADA-compliant tubular exit devices designed to maximize viewing area on 1/2" and 3/4" tempered glass doors while providing robust, certified performance for commercial entrances.

The vertical tubing conceals the operating mechanism: pushing the interior actuation bar retracts the latch bolt for reliable emergency egress. Optional exterior keyed access devices, an integral dogging feature for daytime operation, and compatibility with electric strikes provide flexible secured-entry solutions and remote keyless entry options. Matching dummy handles are available to maintain a uniform appearance without added hardware costs.

The interior portion is a slender 1-1/4" (32 mm) tube that spans the door and turns upward to the top rail, keeping the lower door area unobstructed to meet A.D.A. clear-path requirements. All PA100 Series panic handles include a dogging lever for locking the device in the open position during business hours; custom headers with installed strike hardware are available for convenience.

For full technical details and catalog pages on our CRL-Blumcraft® access handle and panic hardware line, visit the catalog here or contact CRL Technical Sales via Contact Us » Technical Sales for Commercial Products.

Product Warning:

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to shipping. Within two days of receipt you must open the package, remove protective wrap, and inspect the finish. Report any damage or irregularity immediately; CRL is not liable for damages reported after this period.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, request this from CRL Customer Service before submitting your order. Product images shown are of the actual product or a close representation; colors can vary by monitor.



Need a quote or specification sheet for the PA100 (SKU: PA100F4AK0RB)? Contact CRL Customer Service
