CRL-Blumcraft® Oil Rubbed Bronze Left Reverse Rail Keyed Panic Handle

CRL-Blumcraft® Oil Rubbed Bronze Left Reverse Rail Keyed Panic Handle

Regular price $14,515.97 CAD
Regular price Sale price $14,515.97 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100A4RK0RB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles specifically for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. We also supply matching dummy handles so you can maintain a consistent appearance across a project without added hardware costs.

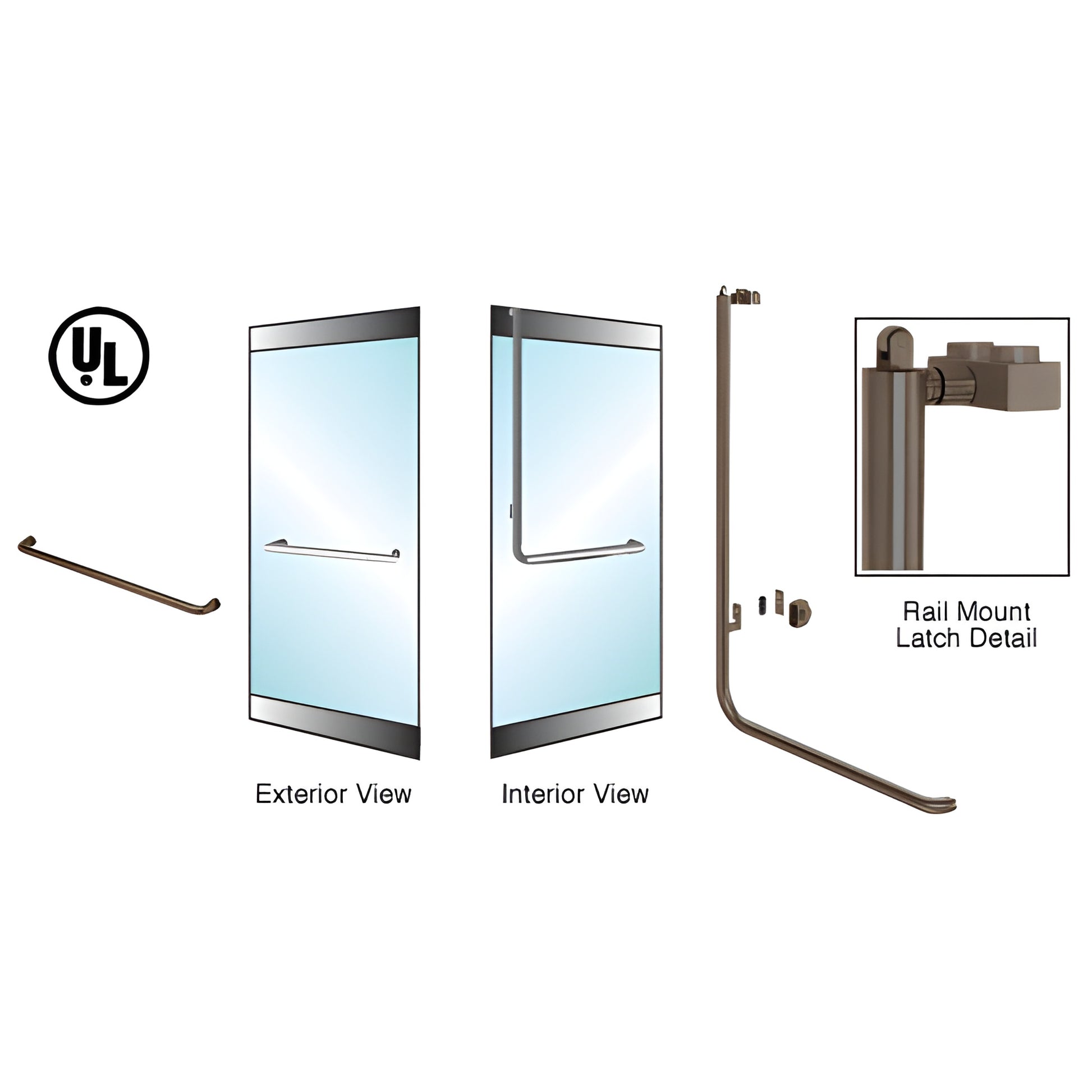

The PA100 Series panic handle (SKU: PA100A4RK0RB) is a popular, ADA-compliant tubular panic for 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors. Its concealed operating mechanism in the vertical tubing retracts the latch when the interior actuation bar is pushed, providing reliable egress while preserving a maximum viewing area and contemporary aesthetic.

Key differentiators:
  • Dogging feature: locks the device in the open position for free access during business hours
  • Optional exterior keyed access device for controlled entry
  • Compatible with electric strikes for remote keyless entry
  • Slender 1-1/4" (32 mm) interior tube design keeps the lower door area clear for ADA compliance
  • Custom headers available with strike hardware pre-installed
CRL offers a range of secured-entry options and configurations for commercial glass entrances—panic handles, electronic egress, and matching dummy handles—suitable for storefronts, office entrances, and institutional applications.

For complete technical details and catalog pages for the CRL-Blumcraft® Access Handle product line, visit the catalog.

Product Warning:
Products finished in Oil Rubbed Bronze are inspected before shipment. Within two days of receipt, open the package, remove protective wrap, and inspect the finish. Report any damage or finish irregularity to CRL immediately; claims reported later may not be accepted.

Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary with monitor settings.
