CRL

CRL-Blumcraft Oil-Rubbed Bronze Left Rail-Mount Keyed Panic Handle

CRL-Blumcraft Oil-Rubbed Bronze Left Rail-Mount Keyed Panic Handle

Regular price $15,820.60 CAD
Regular price Sale price $15,820.60 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100FS4RK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design for all-glass doors
  • Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Match project aesthetics with dummy handles that pair with functional devices to reduce cost without sacrificing appearance.

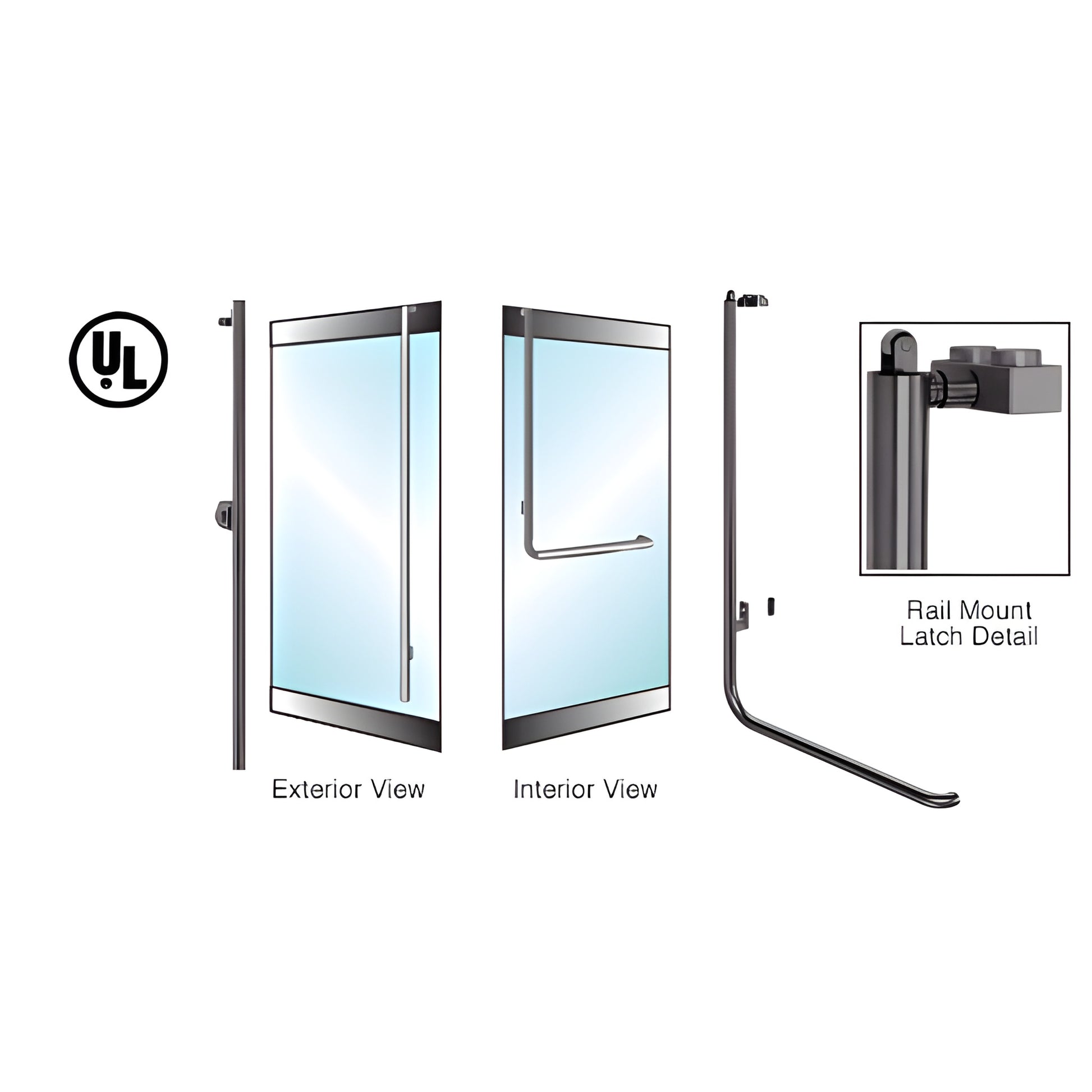

The PA100 Series panic handle (SKU: PA100FS4RK0RB) features a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access and an integrated dogging feature allow doors to remain unlocked during business hours. Electronic strikes are also supported for remote or keyless entry integrations.

Designed for maximum viewing area and ADA compliance on 1/2" or 3/4" tempered glass doors, the PA100 Series uses a slender 1-1/4" (32 mm) interior tube that clears the lower door area to meet accessibility requirements. All PA100 panic handles include dogging for business-hour operation and are compatible with electric strikes; custom headers with installed strike hardware are available.

For technical assistance or order inquiries, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. See the latest catalog pages for full product details here.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs prior to ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Key differentiators: ADA-compliant all-glass panic handle, concealed vertical-tube mechanism, optional keyed access and electric strike compatibility, wide finish selection, custom sizes and finishes available. Order the PA100 Series (SKU: PA100FS4RK0RB) for dependable, low-profile access control—contact us to buy or request a quote.
