CRL-Blumcraft® Oil Rubbed Bronze Left-Hand Rail Keyed J Panic Handle

CRL-Blumcraft® Oil Rubbed Bronze Left-Hand Rail Keyed J Panic Handle

Regular price $15,234.04 CAD
Regular price Sale price $15,234.04 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100J4RK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic devices specifically engineered for all-glass doors. Our range includes panic devices, deadbolt handles, electronic egress controls, and matching dummy handles to maintain a consistent appearance across projects while avoiding unnecessary costs.

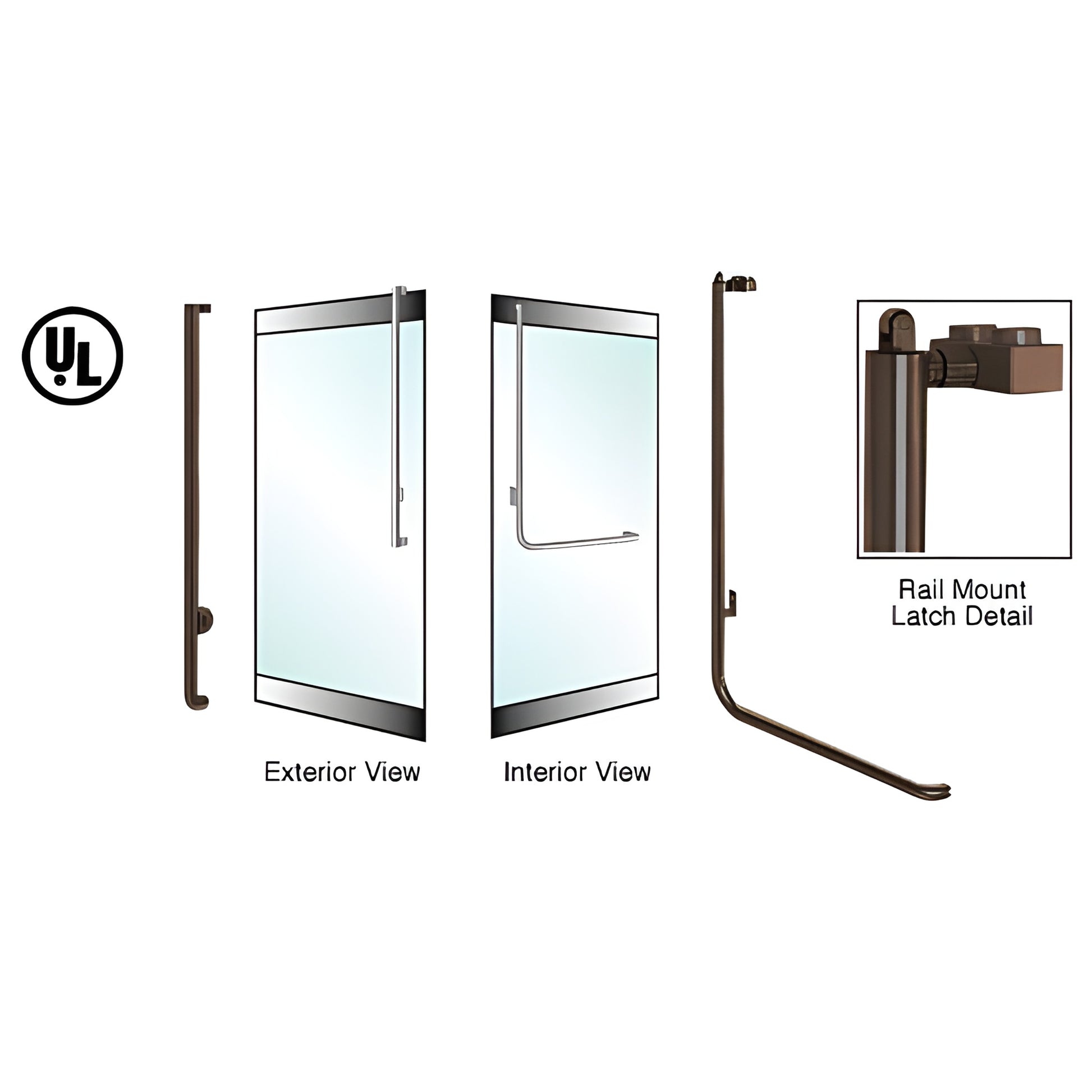

The PA100 Series panic handles (SKU: PA100J4RK0RB) feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and a special dogging feature provide daytime unlocked operation. Electronic strikes are available for remote or controlled entry solutions.

Designed for maximum viewing area and a contemporary look, these elegant tubular panic handles install on 1/2" or 3/4" (12 or 19 mm) tempered glass doors and help meet Americans with Disabilities Act (ADA) requirements. The interior portion is a slender 1-1/4" (32 mm) tube that runs across the door and rises to the top, keeping the lower door area clear of obstructions to comply with ADA codes.

All PA100 Series panic handles include a dogging lever that locks the device open for business-hour access and can be paired with an electric strike for keyless remote entry. Custom headers with strike hardware installed are available for convenience. These long-life, ADA-compliant panic handles are well suited for commercial glass entrances requiring durable, code-compliant hardware.

For technical assistance or ordering information, contact CRL Technical Sales from the home page by clicking Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete product details are available here.

Product Warning:

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to packaging and shipping. Within two days of receipt, open the package, remove protective wrap, and inspect the finish.
