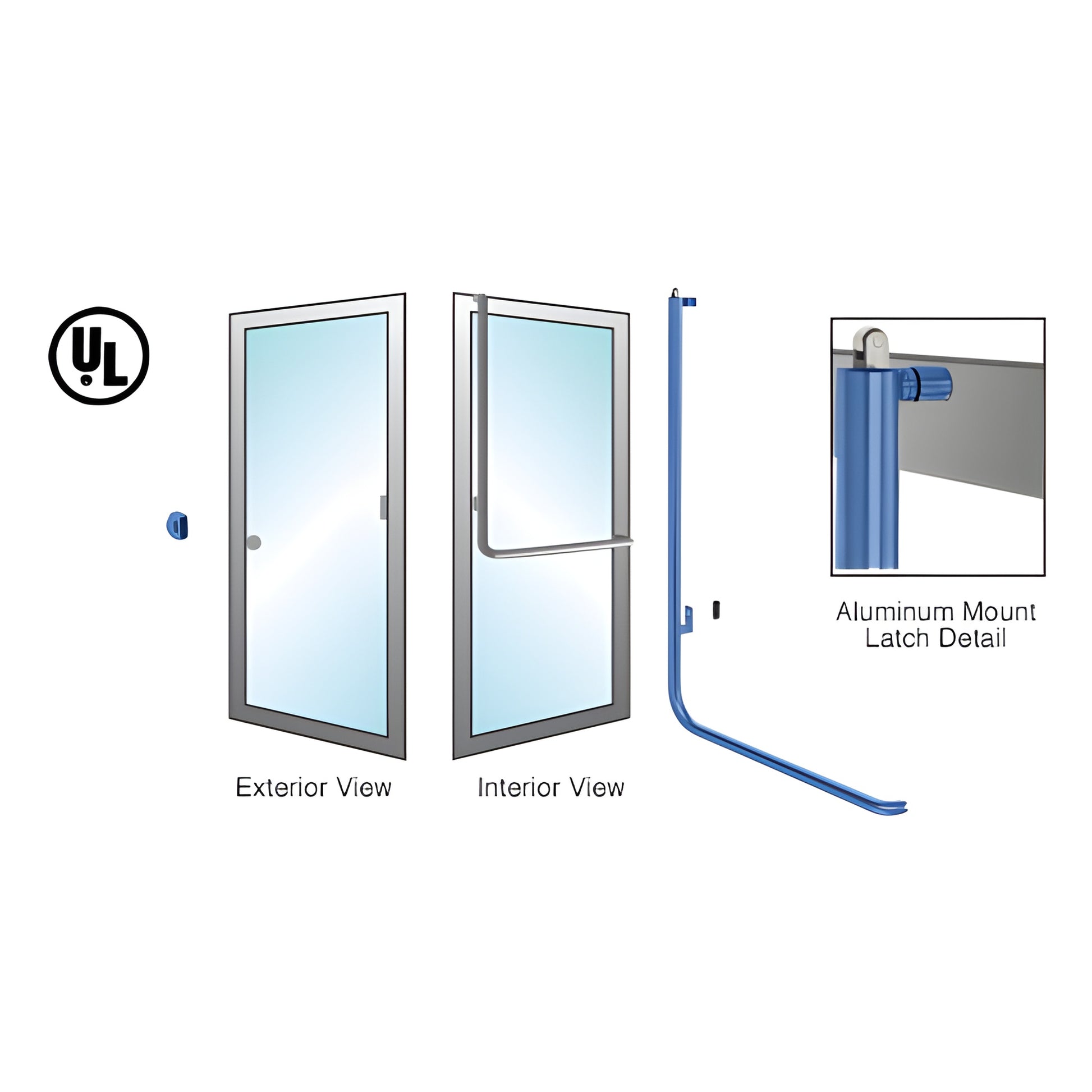

CRL-Blumcraft® Left-Hand Aluminum Door-Mount Keyed Z Panic Handle

• Fits 1/2" or 3/4" (12 or 19 mm) tempered glass doors — also compatible as a replacement for older panic devices
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL Glass Door Panic Handle is engineered for maximum view and a contemporary aesthetic on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Suitable for single or double doors, the handles are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device in the open position) is simple with a slide knob. A separate Door Stop/Strike is required. Threshold Strike Plate available for PA110 Series. Custom headers are available with your choice of pre-installed hardware. SKU: PA100Z4AKPT

SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 1/2" or 3/4" (12 or 19 mm)

Glass Fabrication:

• Varies — please contact CRL Technical Sales for details

ORDERING OPTIONS
When ordering Panic Handles you must specify:

• PA100 or PA110 Series
• Exterior handle option (click here)
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

Contact CRL Technical Sales for specification details and pricing on these handles for all-glass entrance doors.
