CRL-Blumcraft® Painted Aluminum Top Panic Handle RHR Keyed Exterior
CRL-Blumcraft® Painted Aluminum Top Panic Handle RHR Keyed Exterior
Regular price
$14,166.74 CAD
Regular price
Sale price
$14,166.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F3AKPT
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Powder Coated
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent appearance across projects.

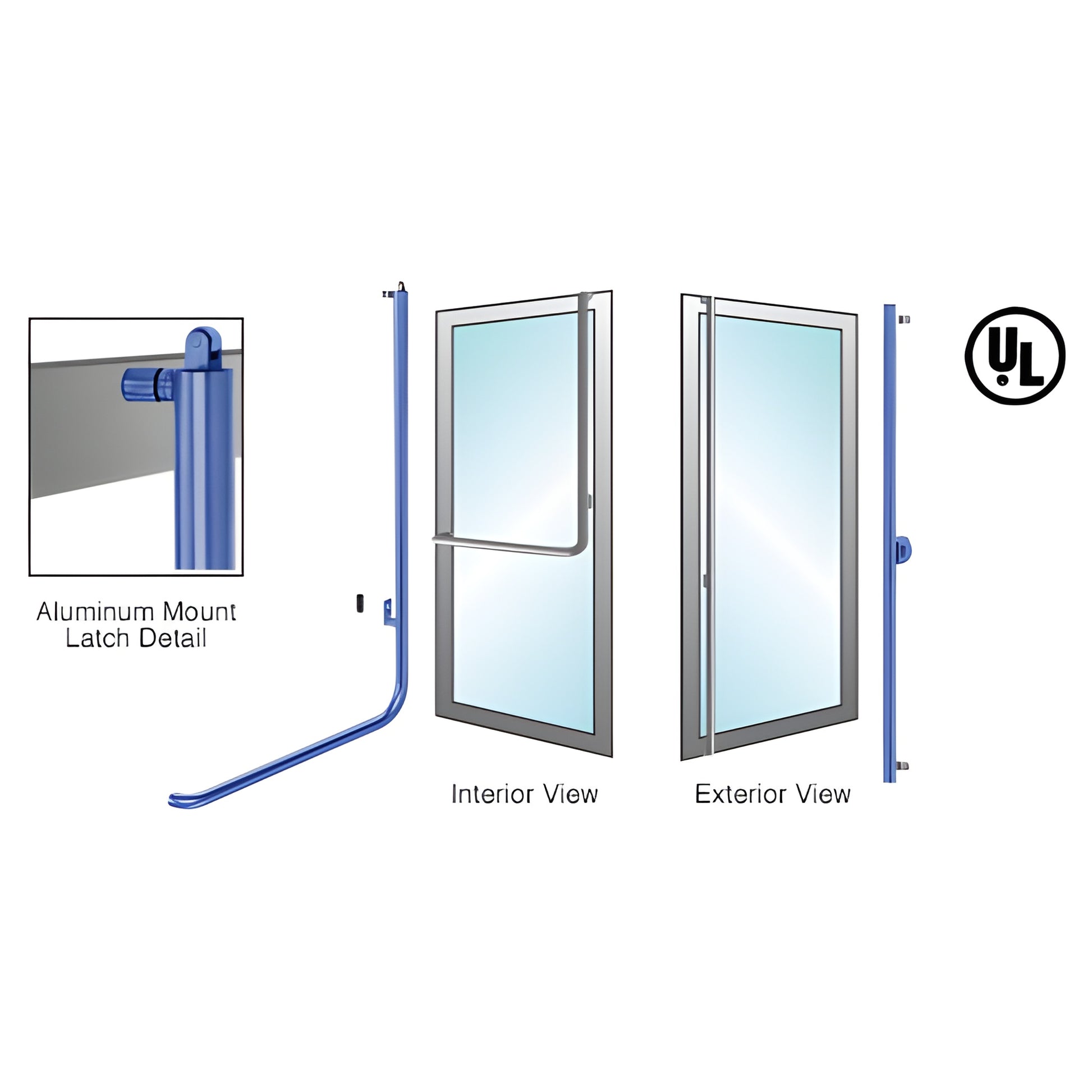

The PA100 Series Panic Handle (SKU: PA100F3AKPT) features a concealed operating mechanism inside a vertical tube that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and electronic strike compatibility provide secure, remote, and keyless entry options. A special dogging feature locks the device in the open position for business-hour free access.
Designed for maximum viewing area and ADA compliance on 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the slender 1-1/4" (32 mm) interior tube runs across the door and turns upward to the top edge to eliminate lower-door obstructions. Custom headers with strike hardware installed are available for convenient installation.
Find full CRL-Blumcraft® Access Handle specifications and catalog pages here. For technical questions or to request exact shipping weights, contact CRL Technical Sales or Customer Service before ordering.
Order the PA100F3AKPT panic handle today to equip your all-glass doors with secure, code-compliant hardware.
