CRL-Blumcraft Painted Right-Hand Low Profile Keyed Panic Handle (F)
CRL-Blumcraft Painted Right-Hand Low Profile Keyed Panic Handle (F)
Regular price
$14,939.26 CAD
Regular price
Sale price
$14,939.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F3LKPT
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Powder Coated
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for maximum viewing area
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in polished stainless, brushed stainless, satin brass, polished brass, and oil rubbed bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware engineered for all-glass doors. Our Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles provide consistent aesthetics across a project while controlling costs.

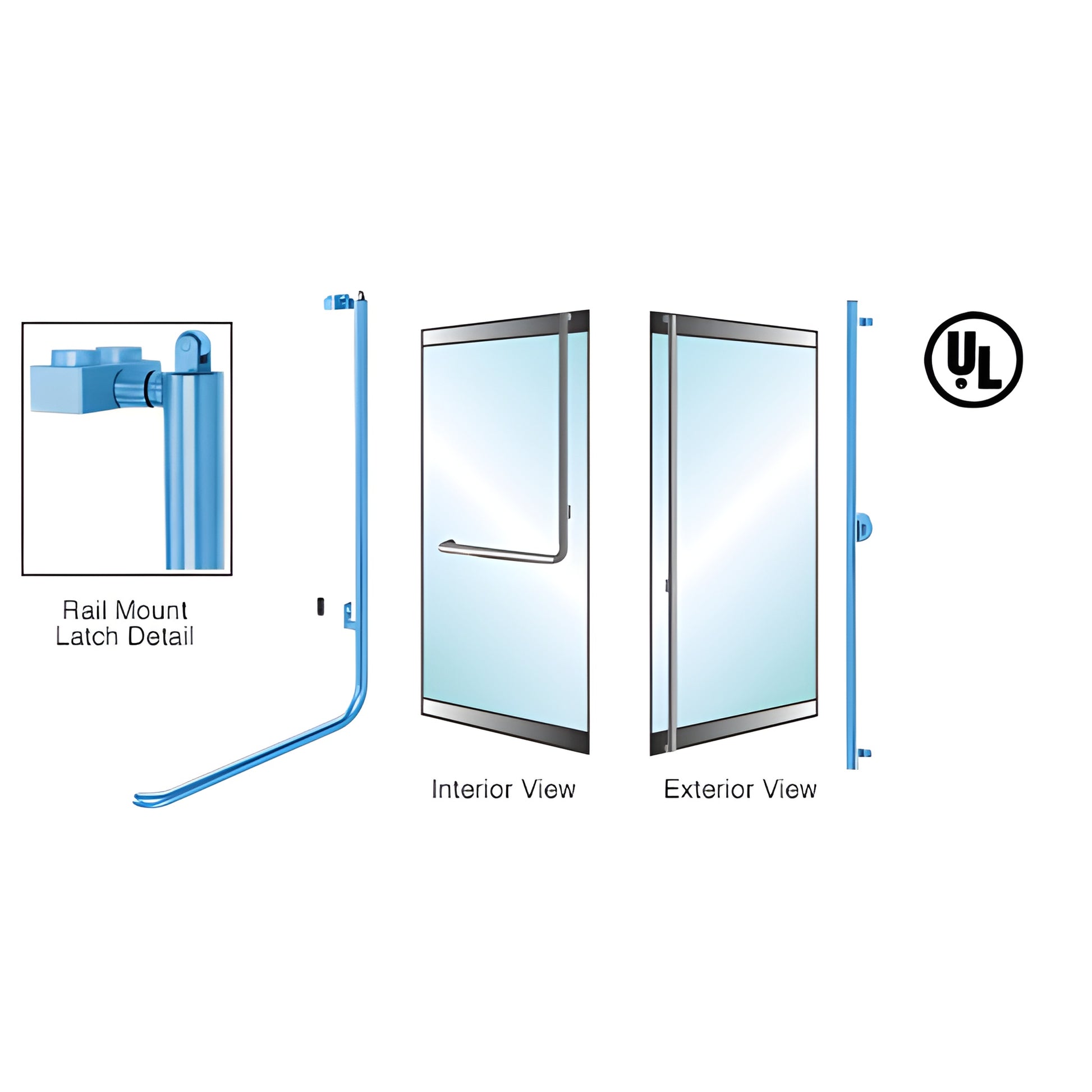

The operating mechanism is concealed inside the vertical tubing of our Panic Handles so pushing the interior actuation bar retracts the latch bolt. Optional exterior keyed access, a dogging feature for keeping doors unlocked during business hours, and compatible electric strikes offer flexible secured-entry solutions. Custom headers are available with strike hardware pre-installed.
Designed to meet ADA requirements for clear lower door area, the PA100 Series features a slender 1-1/4" (32 mm) interior tube that runs across the door and turns up to the top, avoiding obstructions. All PA100 Series panic handles include the dogging lever and can be used with electric strikes for remote keyless entry.
SKU: PA100F3LKPT — PA100 Series panic handle for 1/2" or 3/4" tempered glass doors; ADA-compliant panic hardware with tubing-style handle, dogging, keyed access and electric-strike compatibility.
For full specifications and the latest catalog pages, visit our product catalog here. Contact CRL Technical Sales via the Contact Us page and select Technical Sales for Commercial Products for custom finishes, sizes, or installation assistance.
Order the PA100 Series panic handle (SKU PA100F3LKPT) or contact us for custom finishes and expedited sizing.
