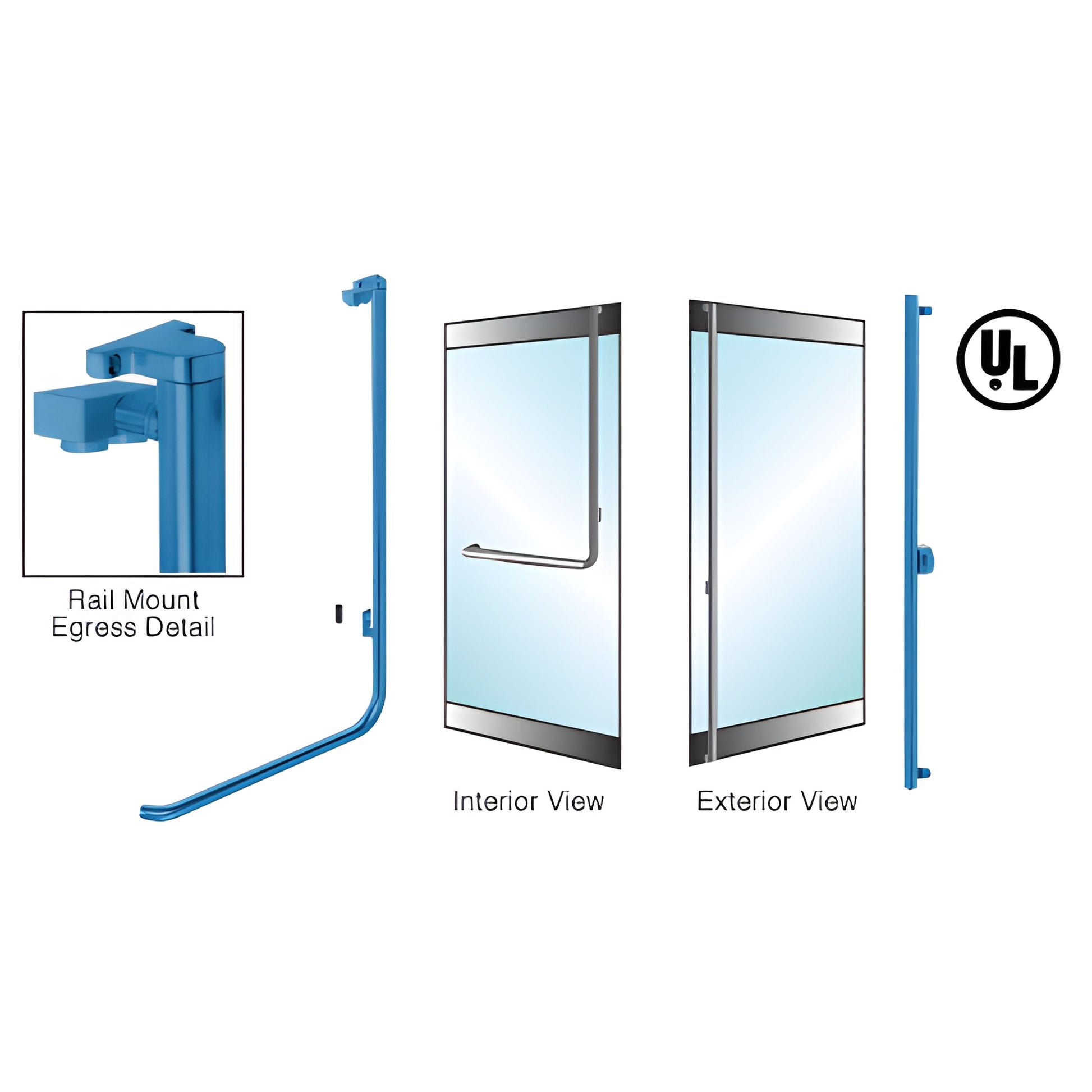

CRL-Blumcraft® Right-Hand Rail-Mount Keyed Electronic Door Egress Handle

• UL and ULC Recognized Component
• Ideal for maintaining security and aesthetics on all-glass doors
• Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across a project without the added cost of full-function devices.

An electronic switch concealed within the vertical tubing of the Electronic Egress Control Handle releases a magnetic lock at the top or bottom of the door when the interior actuation bar is pushed. Please consult local building codes for acceptability of electro-magnetic locking hardware.

CRL EG100 Series Electronic Egress Control Handles (SKU: EG100F3RKPT) provide an economical, attractive solution for controlling access while allowing safe exit and maximum visibility through tempered glass doors. These elegant tubular devices are designed for 1/2" or 3/4" (12 or 19 mm) tempered glass doors and offer a contemporary, minimal profile ideal for storefronts and commercial entrances.

Key differentiators:

• Concealed electronic switch for clean aesthetics and reliable magnetic lock release
• Slender 1-1/4" (32 mm) interior tube that turns upward to the top of the door to keep the lower half free of obstructions for ADA compliance
• Multiple finish options and special-order custom finishes to match architectural designs
• Quick-turn custom sizes—ship within one to two weeks

These handles meet ADA requirements for operable hardware on all-glass doors and are engineered to preserve sightlines and design continuity.

For full technical specifications and installation guidance, contact CRL Technical Sales from the home page (Contact Us → Technical Sales for Commercial Products). The latest catalog pages with complete details on the CRL-Blumcraft® Access Handle product line can be found here.

Product Warning:

Must specify with or without Keyed Access Device.
