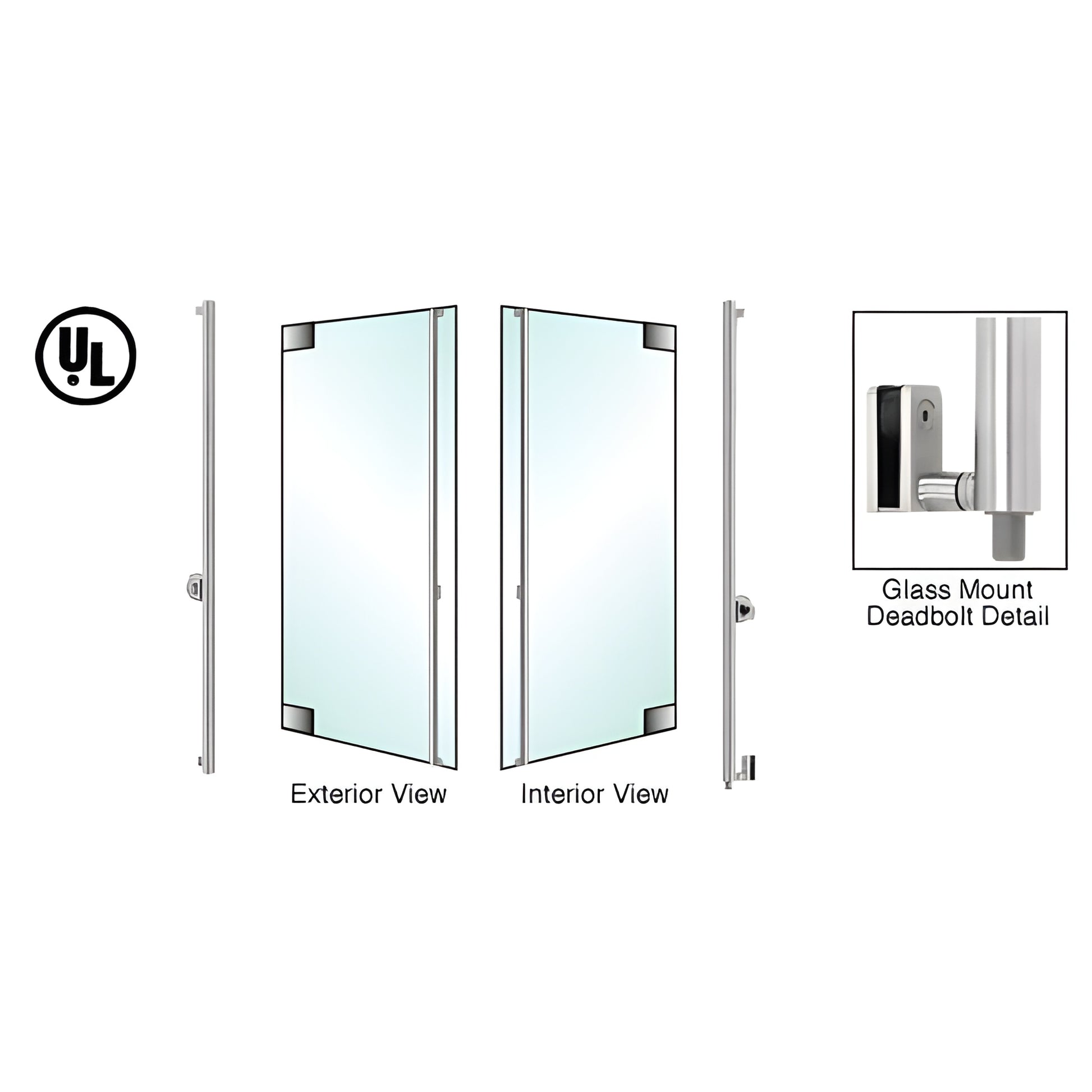

• Polished stainless steel vertical deadbolt access handle for 1/2" tempered glass doors, shows exterior and interior views.
1 1

CRL

CRL-Blumcraft Polished Stainless Left-Hand Glass-Mount Keyed Deadbolt

CRL-Blumcraft Polished Stainless Left-Hand Glass-Mount Keyed Deadbolt

$12,124.35 CAD
$12,124.35 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DB131F4G1PS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder / Thumb Turn
Locking
Bottom
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt

Overview

  • UL Classified
  • Easy secure access
  • ANSI/BHMA Certified
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass exterior doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to preserve a consistent appearance across projects. SKU: DB131F4G1PS.

The deadbolt handle locking mechanism is concealed within the vertical tubing for a clean exterior look and offers multiple keying options. An optional top latch roller bolt enables use with electronic strikes for controlled-entry systems—ideal for commercial glass door access control and tempered glass storefront doors.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, then Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here.

Product Warning:

Secures at bottom of door only.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.


Call or order online to specify finish, size, or custom options.

Specifications

CAD Drawings - pdf
Blumcraft Panic Handles System CAD Drawings.pdf
