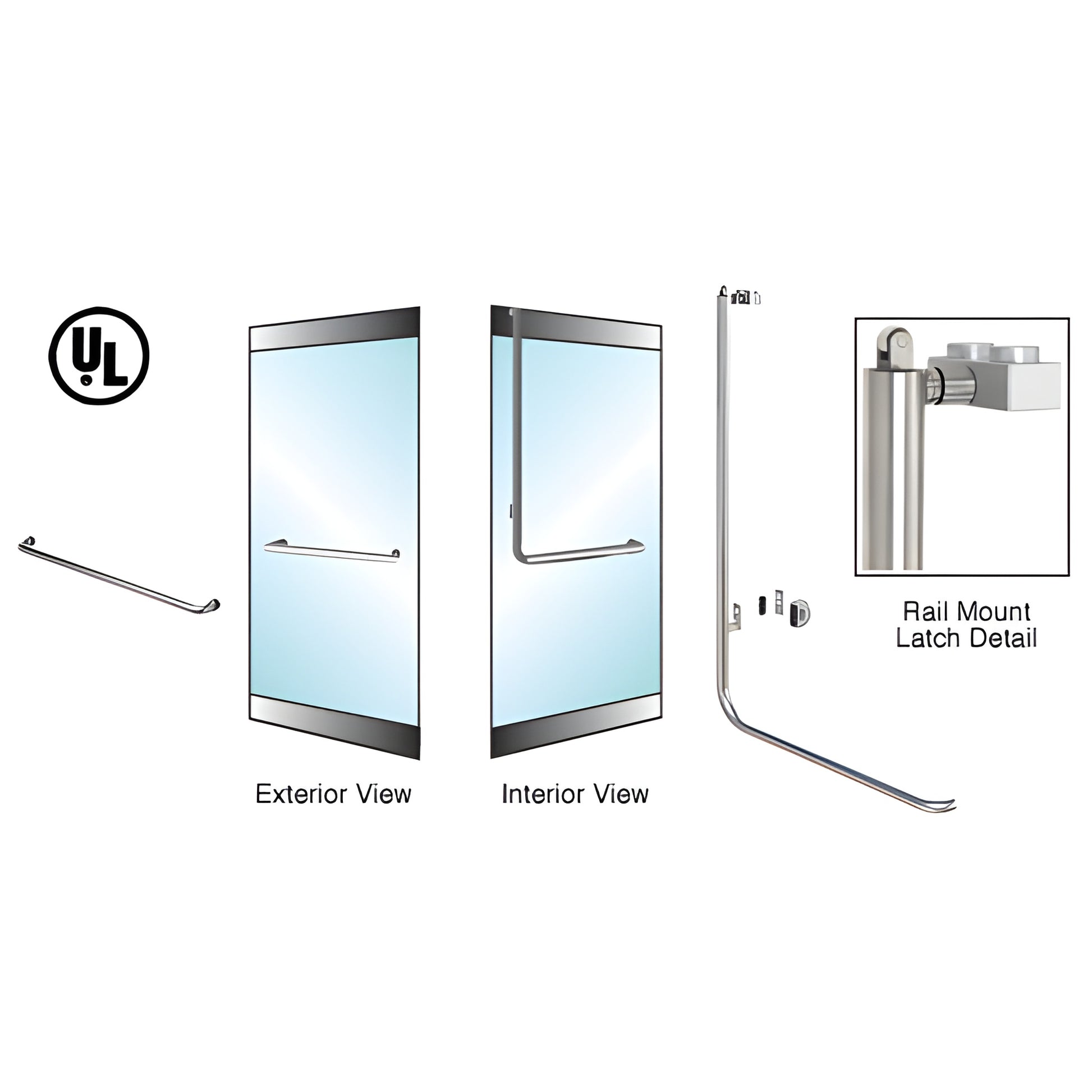

CRL-Blumcraft® Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass

• For 3/4" (19 mm) tempered glass doors — contemporary glass door panic handle and replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle is engineered to maximize sightlines and deliver a contemporary appearance for 3/4" (19 mm) tempered glass doors. Suitable for single or double door installations, the handles are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. Dogging (locking the device in the open position) is quick with a simple slide knob. A door stop/strike must be ordered separately; threshold strike plate available for PA110 Series. Custom headers can be supplied with pre-installed hardware.

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales

When ordering panic handles you must specify:

• PA100 or PA110 Series
• Right or Left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For detailed product guidance, contact the CRL Commercial Products Technical Sales Department.
