• PA100 panic rail-mount handle, polished stainless, 1-1/4" tube for 1/2-3/4" tempered glass doors, left-hand reverse (SKU 5P10
1 1

CRL

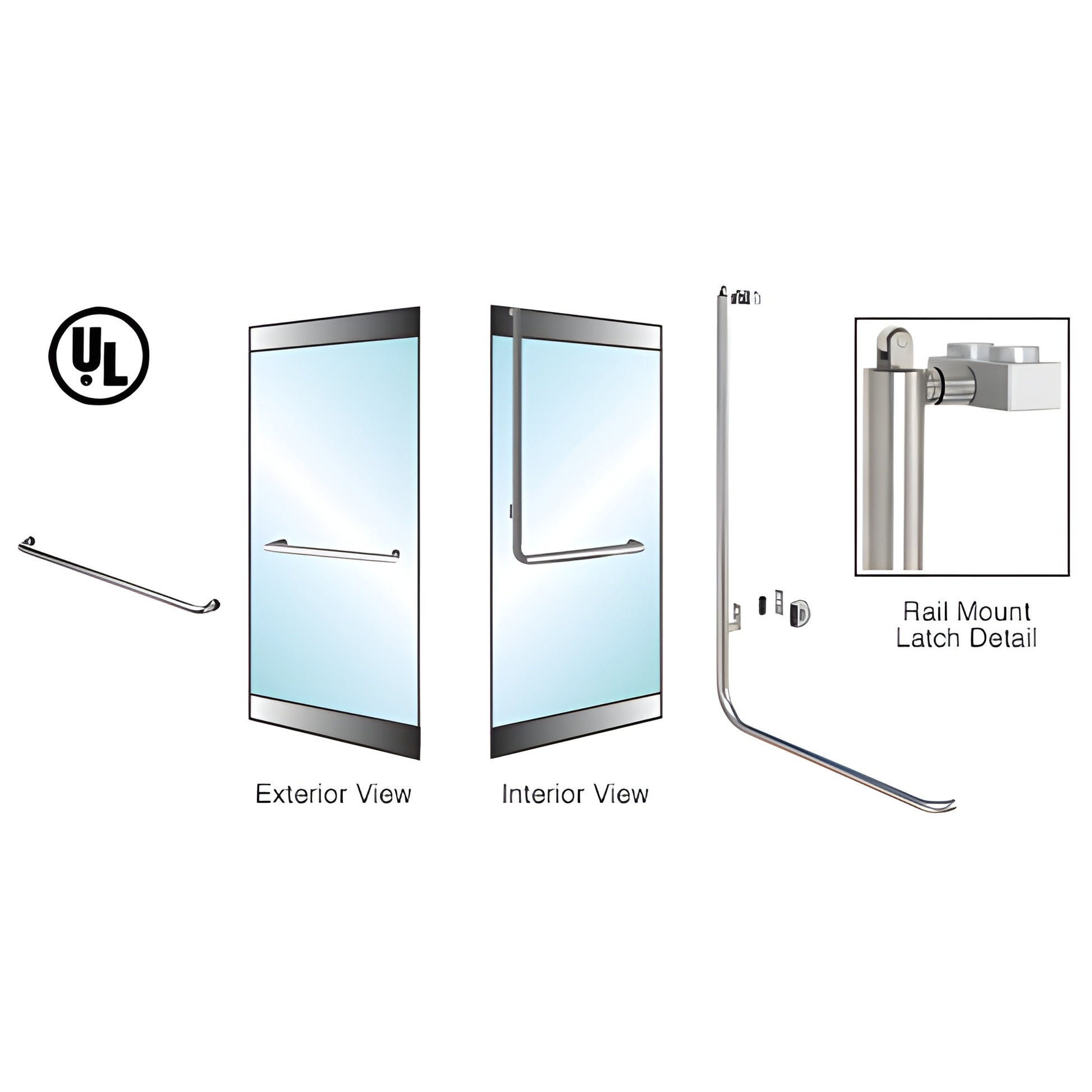

CRL-Blumcraft® Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass

CRL-Blumcraft® Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass

$11,623.95 CAD
$11,623.95 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 5P100A4RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
5/8 in. (16 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Fits 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors — wide selection of exterior fixed handles
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent appearance across projects without added cost.

The PA100 Series panic handles feature a concealed operating mechanism inside the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional keyed exterior access, a dogging feature to hold the device open during business hours, and compatibility with Electronic Strikes provide versatile secured-entry options suitable for commercial glass storefronts and interior glass doors.

Designed for maximum viewing area on 1/2" to 3/4" (12 to 19 mm) tempered glass doors, these elegant tubular panic handles meet Americans with Disabilities Act (ADA) considerations by keeping the lower door area clear of obstructions. The interior actuation is a slender 1-1/4" (32 mm) tube that stretches across the door and routes upward, preserving required clearances.

All PA100 Series panic handles include a dogging lever for free access during business hours and can be paired with Electric Strikes or custom headers with strike hardware pre-installed. For technical details or installation guidance, contact our Technical Sales Department.

SKU: 5P100A4RKPS — PA100 Series panic handle for tempered glass doors, ADA-compliant glass door panic hardware, electronic strike compatible.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
