• CRL EG100D4RKPS polished stainless tubular electronic egress rail-mount handle for 1/2" glass doors, left-hand reverse.
1 1

CRL

CRL-Blumcraft® Stainless Rail-Mount LH Keyed D Electronic Exit Handle

CRL-Blumcraft® Stainless Rail-Mount LH Keyed D Electronic Exit Handle

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# EG100D4RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Locking
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL and ULC Recognized Component
  • Ideal for maintaining security and aesthetics on all-glass doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across projects while reducing cost.

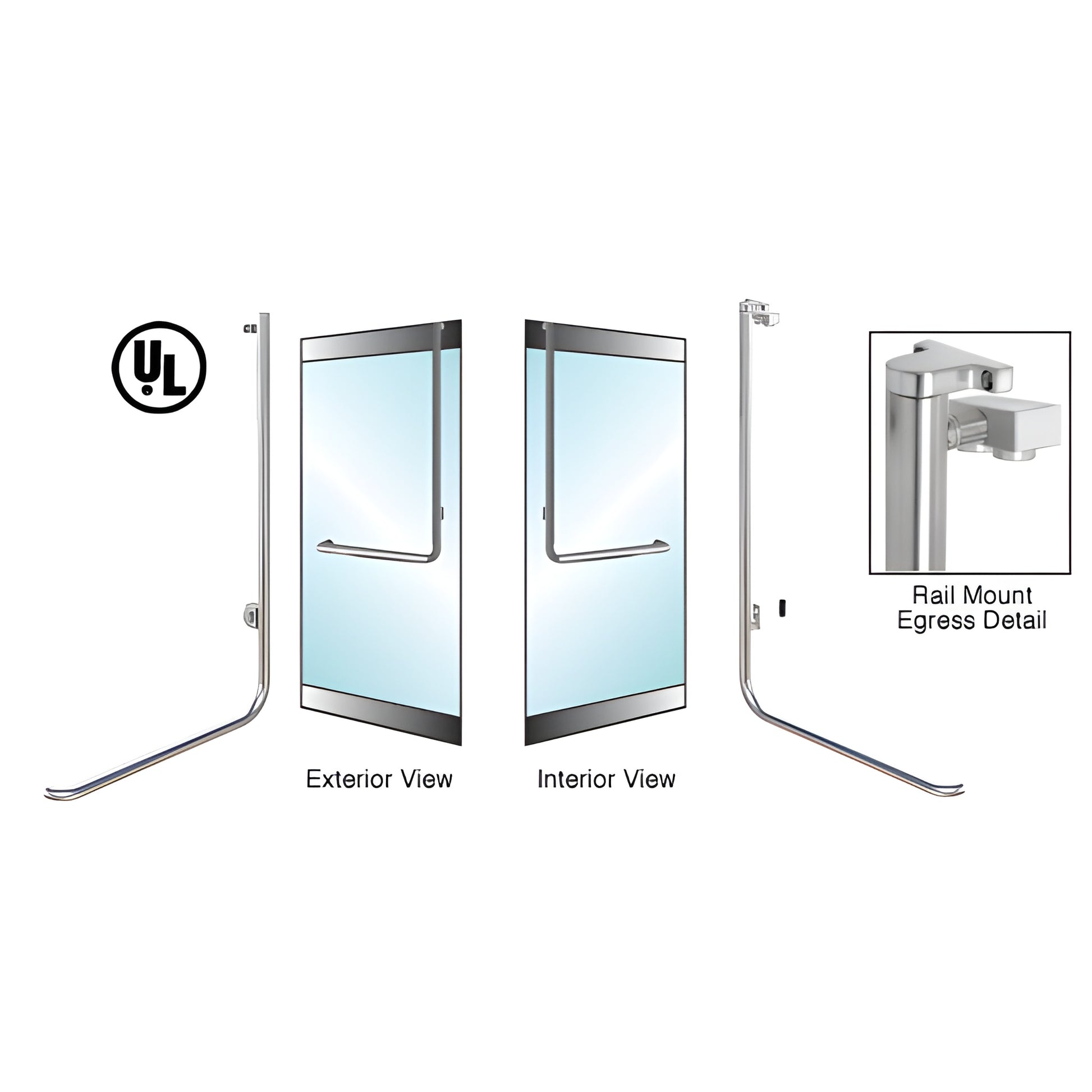

An electronic switch concealed within the vertical tubing of the Electronic Egress Control Handle releases a magnetic lock at the top or bottom of the door when the interior actuation bar is pushed—an elegant solution for controlled entry and safe exit on tempered glass doors. Please consult local building codes regarding electro-magnetic locking hardware.

The CRL EG100 Series Electronic Egress Control Handles (SKU: EG100D4RKPS) provide economical access control without sacrificing the view: slender tubular interior hardware preserves maximum viewing area and a contemporary look on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. These handles meet ADA requirements for unobstructed lower-door areas.

The interior device is a slender 1-1/4" (32 mm) tube that stretches across the door and gently turns upward to the top, eliminating obstructions in the lower half of the door to comply with ADA demands.

For detailed specifications and product applications, contact CRL Technical Sales via the Contact Us page and view the latest access handle catalog pages here.

Product Warning:

Must specify with or without keyed access device.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost information is required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary with monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Key benefits:
