CRL-Blumcraft® Stainless Left-Hand Keyed Rail-Mount Panic Handle

CRL-Blumcraft® Stainless Left-Hand Keyed Rail-Mount Panic Handle

Regular price $13,143.28 CAD
Regular price Sale price $13,143.28 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA110F4RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)

Overview

  • UL305, ULC/5132-93 and ANSI/BHMA A156.3-2001 Grade 1 Certified
  • Elegant tubular design for all-glass commercial doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware optimized for all-glass commercial doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to keep a consistent aesthetic while reducing cost where locking functions are not required.

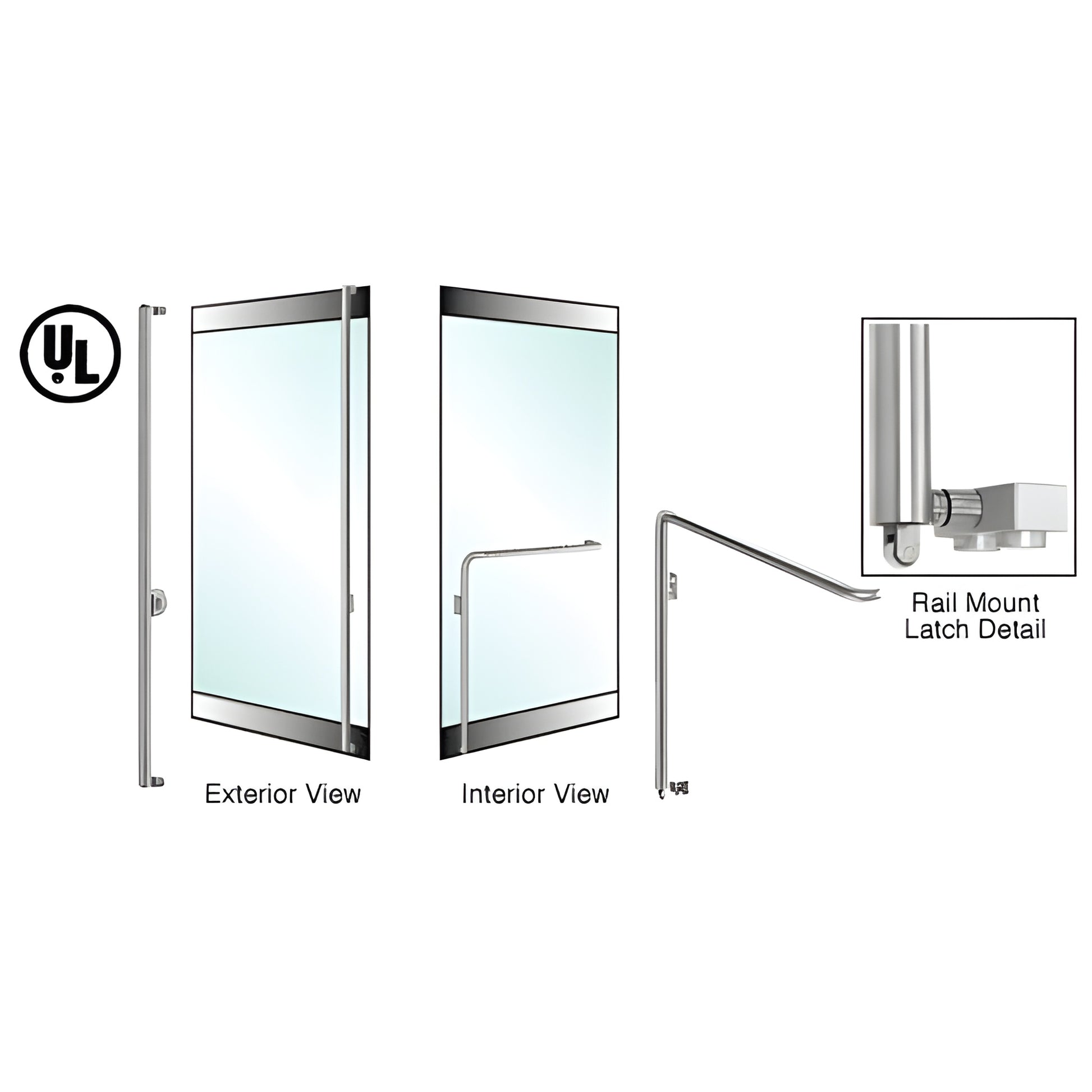

The PA110 Series (SKU: PA110F4RKPS) offers a sleek through-the-door tubular panic handle that extends across the door and bends to latch at the floor or threshold — ideal when ADA codes are not required. The internal operating mechanism in our vertical tubing retracts the latch bolt when the interior actuation bar is pushed. Optional features include an exterior keyed access device, a dogging feature to hold doors unlocked during business hours, and electronic strikes for secure, controlled entry.

PA100 and PA110 panic handles undergo rigorous factory testing to ensure dependable operation and long service life. Our UL, ULC, and ANSI/BHMA Grade 1 certifications set CRL panic handles apart—no other panic of this type makes this claim—making them a top choice for architects and facility managers specifying certified panic hardware for tempered glass entrances.

For complete product specifications and the latest catalog pages, visit the CRL-Blumcraft Access Handle catalog here or contact CRL Technical Sales via Contact Us > Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
