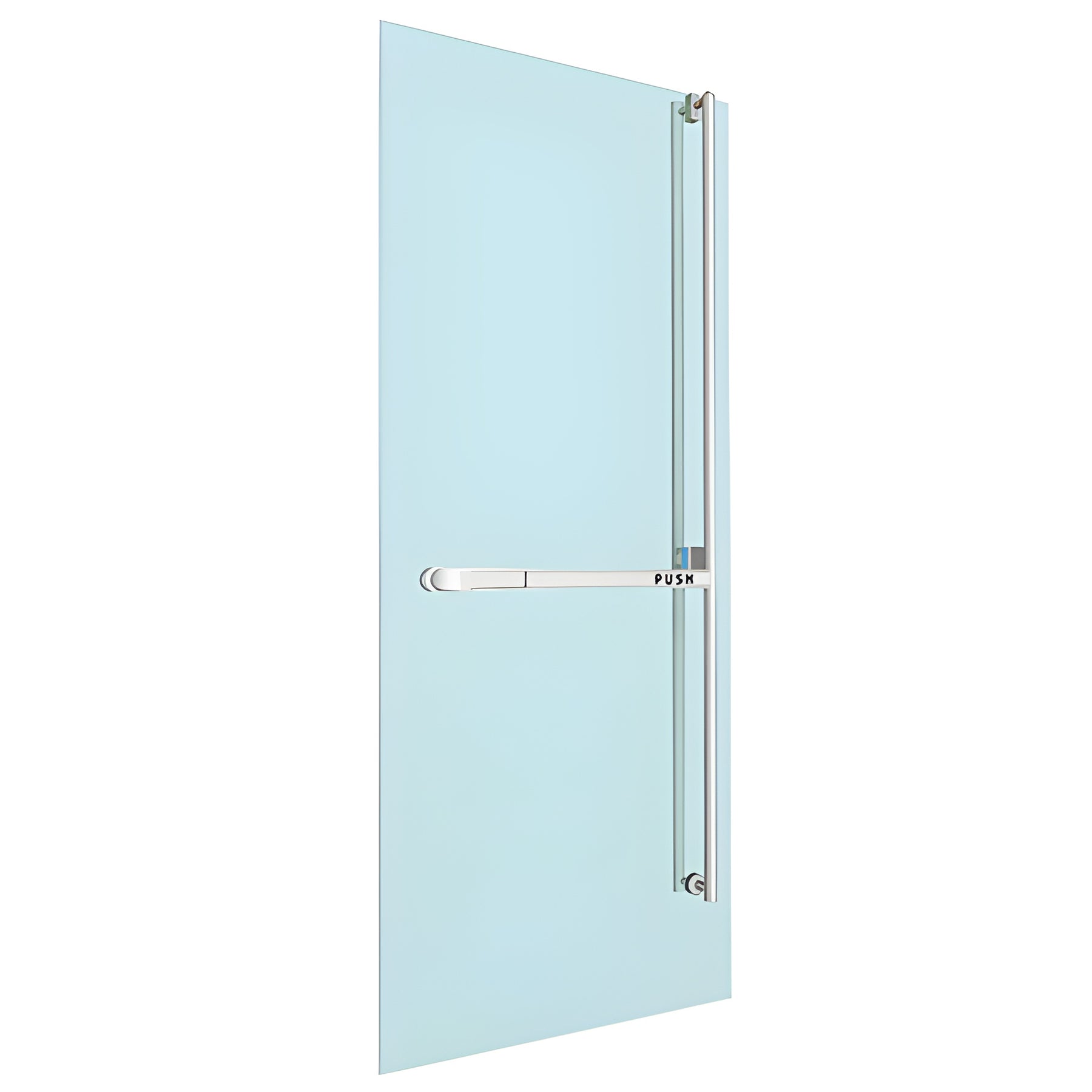

CRL-Blumcraft® Polished SS Glass Mount Keyed Panic Handle RH Exterior
CRL-Blumcraft® Polished SS Glass Mount Keyed Panic Handle RH Exterior
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA310FS3GKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Curved crash bar ends for smooth contact with glass doors
- Independent ultra-narrow crash bar eliminates alignment issues
- Simplifies and expedites installation on narrow stile glass doors
- Mounts to monolithic and 1" insulating glass (thermal doors)
- Tested to ANSI/BHMA Grade 1 standards for commercial panic hardware

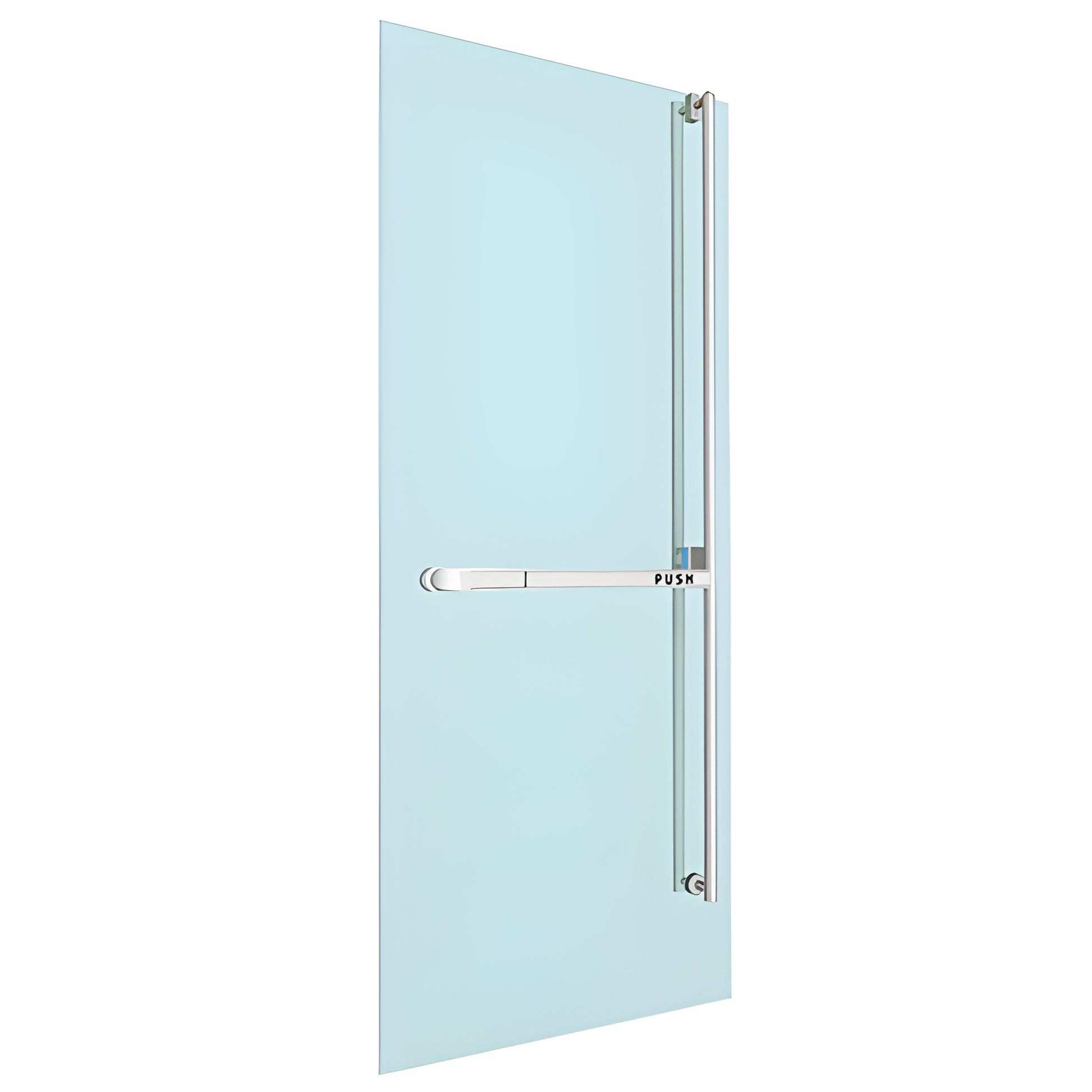

The Blumcraft PA-310 Panic Device (SKU: PA310FS3GKPS) uses an innovative 2-piece design: an independent, ultra-narrow crash bar that securely attaches to the slim vertical panic component. This lets you achieve full-length ladder-pull aesthetics (10" above finished floor) on both interior and exterior sides of glass doors while providing reliable commercial-grade exit hardware for storefronts and thermal glass doors.
The concealed operating mechanism inside the vertical tubing retracts the latch bolt when the interior actuation bar is pressed. Optional keyed exterior access, special dogging for unlocked business-hour operation, and compatibility with electronic strikes provide flexible, secured-entry configurations for retail, office, and public buildings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for architects and contractors specifying panic exit hardware for insulating glass doors. Order or request a quote for SKU PA310FS3GKPS today.
Specifications
CAD Drawings - pdf
