CRL-Blumcraft Polished Keyed Electronic Egress Handle RH Rail Mount

• UL and ULC Recognized Component
• Ideal for maintaining security and aesthetics on all-glass doors
• Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door systems, including panic devices, deadbolt handles, and electronic egress control handles. Match aesthetics across a project with optional dummy handles that keep a consistent look without added electronic cost.

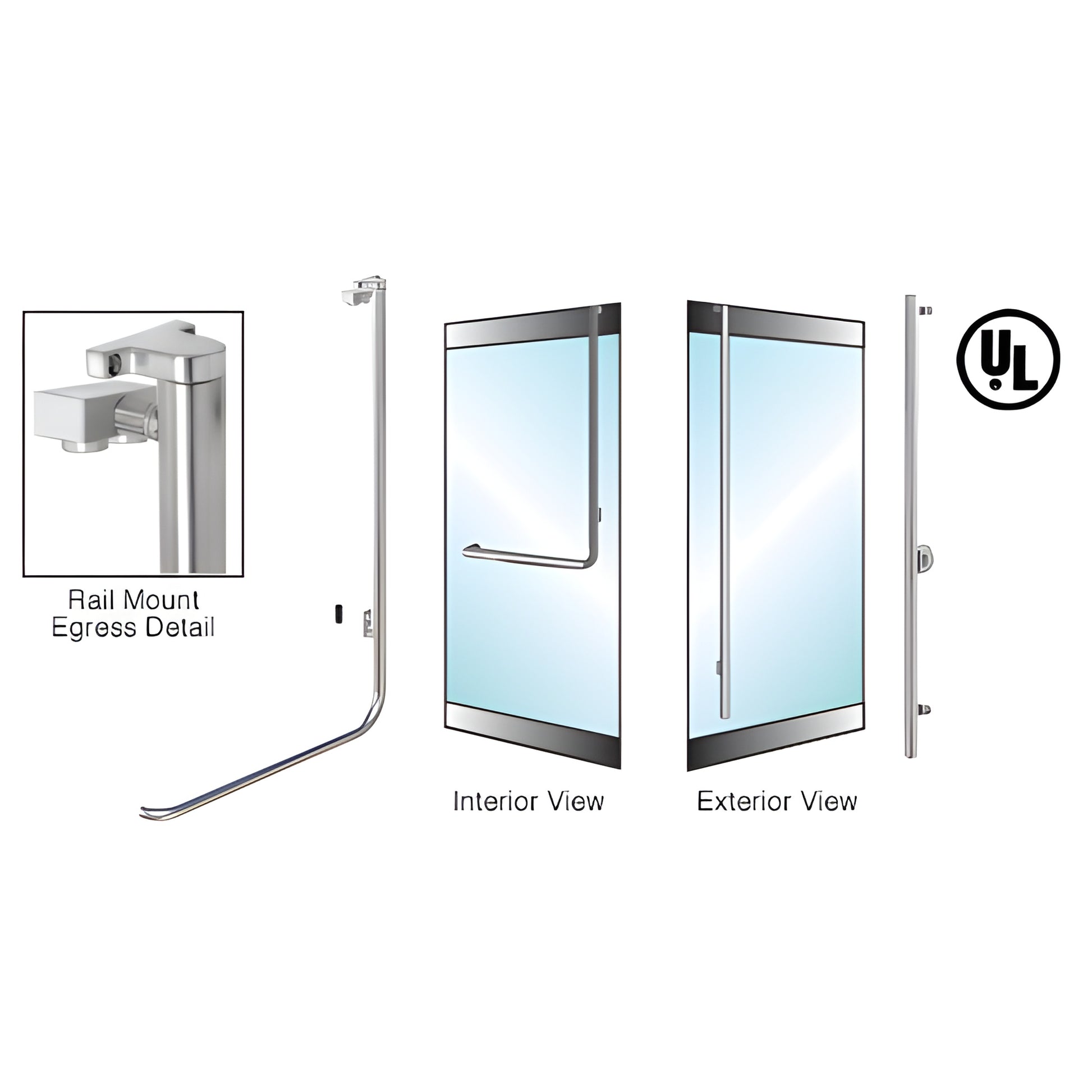

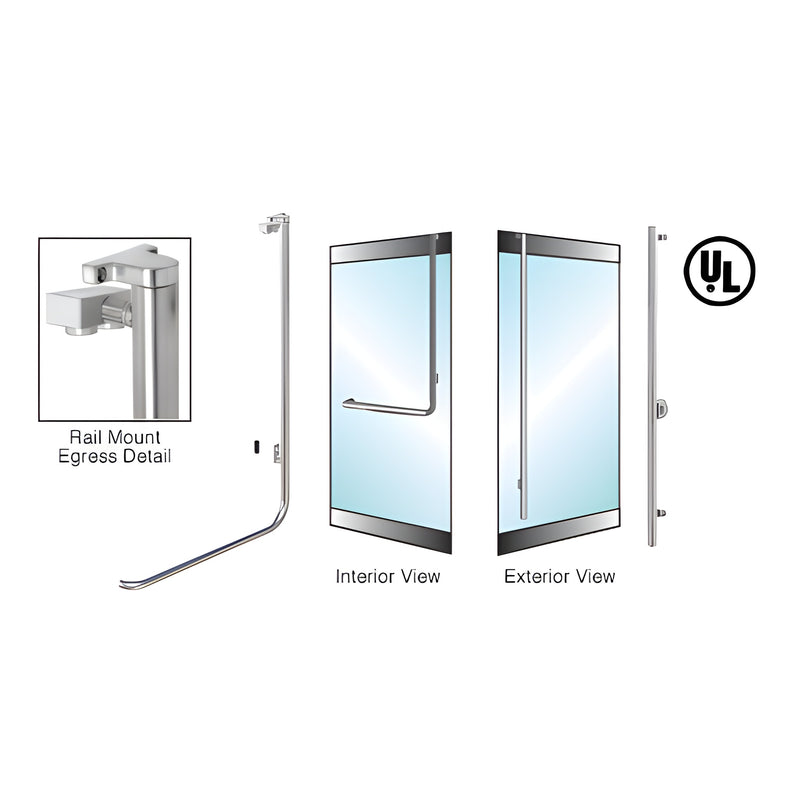

An electronic switch concealed within the vertical tubing of the Electronic Egress Control Handle releases a magnetic lock at the top or bottom of the door when the interior actuation bar is pushed. Consult local building codes for acceptability of electromagnetic locking hardware.

The CRL EG100 Series Electronic Egress Control Handles (SKU: EG100FS3RKPS) provide an economical, ADA-compliant solution to control access into — and safe exit from — secured areas while preserving maximum viewing area on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. These elegant tubular devices offer a contemporary look and minimal visual obstruction.

The interior assembly is a slender 1-1/4" (32 mm) tube that extends across the door and turns upward to the top, keeping the lower glass unobstructed to meet ADA clearance requirements.

For full product specifications and installation guidance, contact CRL Technical Sales from the home page under Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete details on CRL-Blumcraft® access handles are available here.

Product Warning:

Must specify with or without Keyed Access Device.

Stainless Steel Advisory:
