CRL

CRL-Blumcraft® Satin Brass Left-Hand Panic Exit Handle, Keyed Access

CRL-Blumcraft® Satin Brass Left-Hand Panic Exit Handle, Keyed Access

Regular price $14,928.66 CAD
Regular price Sale price $14,928.66 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100X4AKSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Satin Brass
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design for maximum viewing area
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. Match aesthetics across a project with coordinating dummy handles that preserve appearance without added hardware cost.

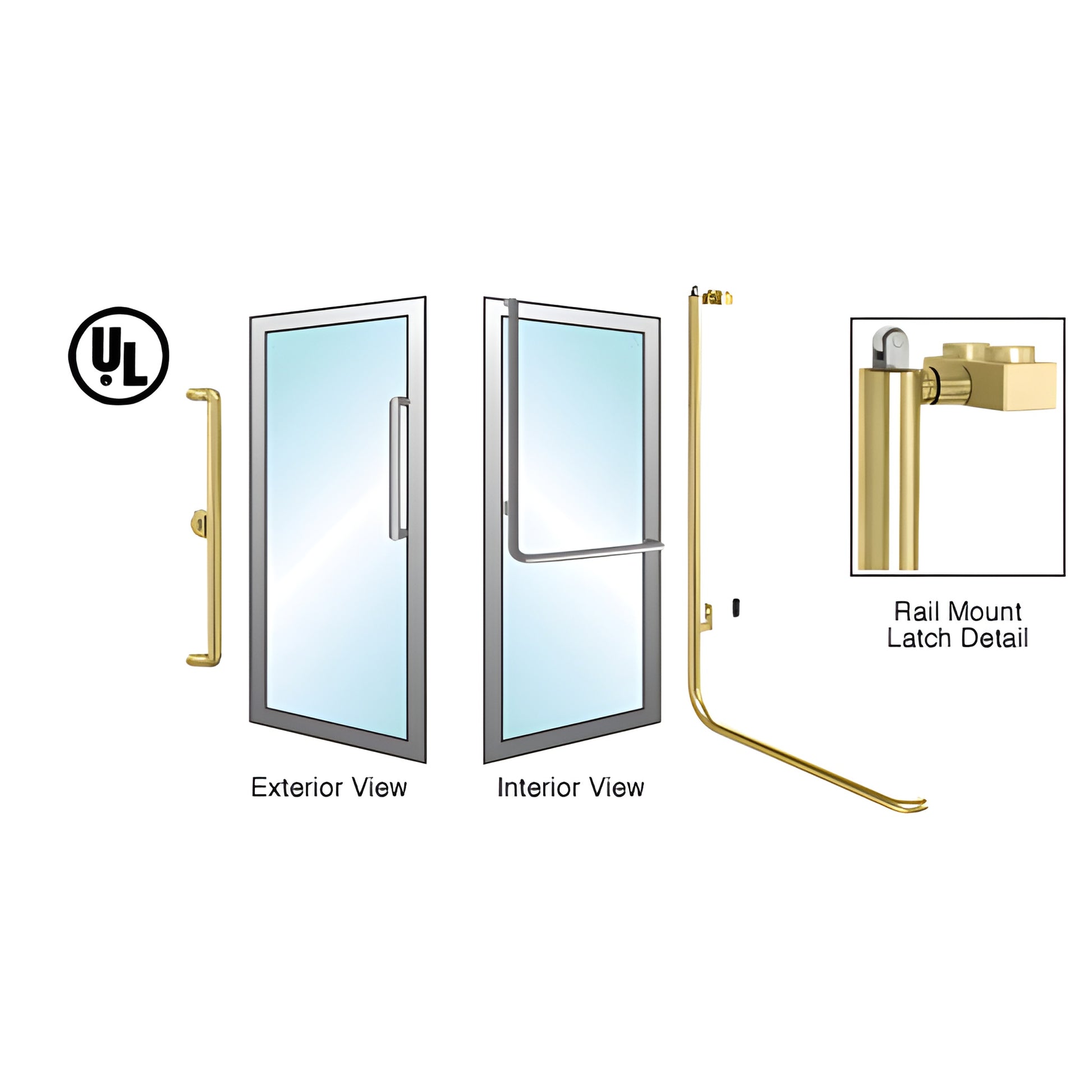

The PA100 Series panic handles (SKU: PA100X4AKSB) feature a concealed operating mechanism inside the vertical tubing that retracts the latch when the interior actuation bar is pushed. Optional exterior keyed access and an integrated dogging feature allow the device to remain unlocked during business hours. Electronic strikes are also available for remote keyless entry.

Designed specifically for 1/2" or 3/4" tempered glass doors, the interior portion is a slender 1-1/4" (32 mm) tube that runs across the door and turns upward to the top, keeping the lower door area clear to meet ADA requirements. All PA100 Series panic handles include a dogging lever and can be used with electric strikes; custom headers with preinstalled strike hardware are available.

Find detailed catalog pages and technical specifications for CRL-Blumcraft® access handles here.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before you complete your order, please request this by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.


For pricing, lead times, or to order the PA100X4AKSB panic handle for tempered glass doors, contact CRL Technical Sales or Customer Service today.
