Product Details
- For 1/2" or 3/4" (12 or 19 mm) Tempered Glass Doors
- Custom Finishes Ship within One to Two Weeks
- Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
- 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick) Glass Thickness:
- 1/2" or 3/4" (12 or 19 mm) Glass Fabrication: Varies
- Please contact CRL Technical Sales ORDERING OPTIONS When ordering Dummy Handles you must specify:
- DH100, DH110 or other Interior Handle Series AH18 catalog
- Exterior Handle Option
- Right or Left Hand (as viewed from the outside)
- Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
- Brushed or Polished Stainless, Satin or Polished Brass Finish Contact CRL Technical Sales for specification details and pricing on these handles for 'All-Glass' Entrance Doors. Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

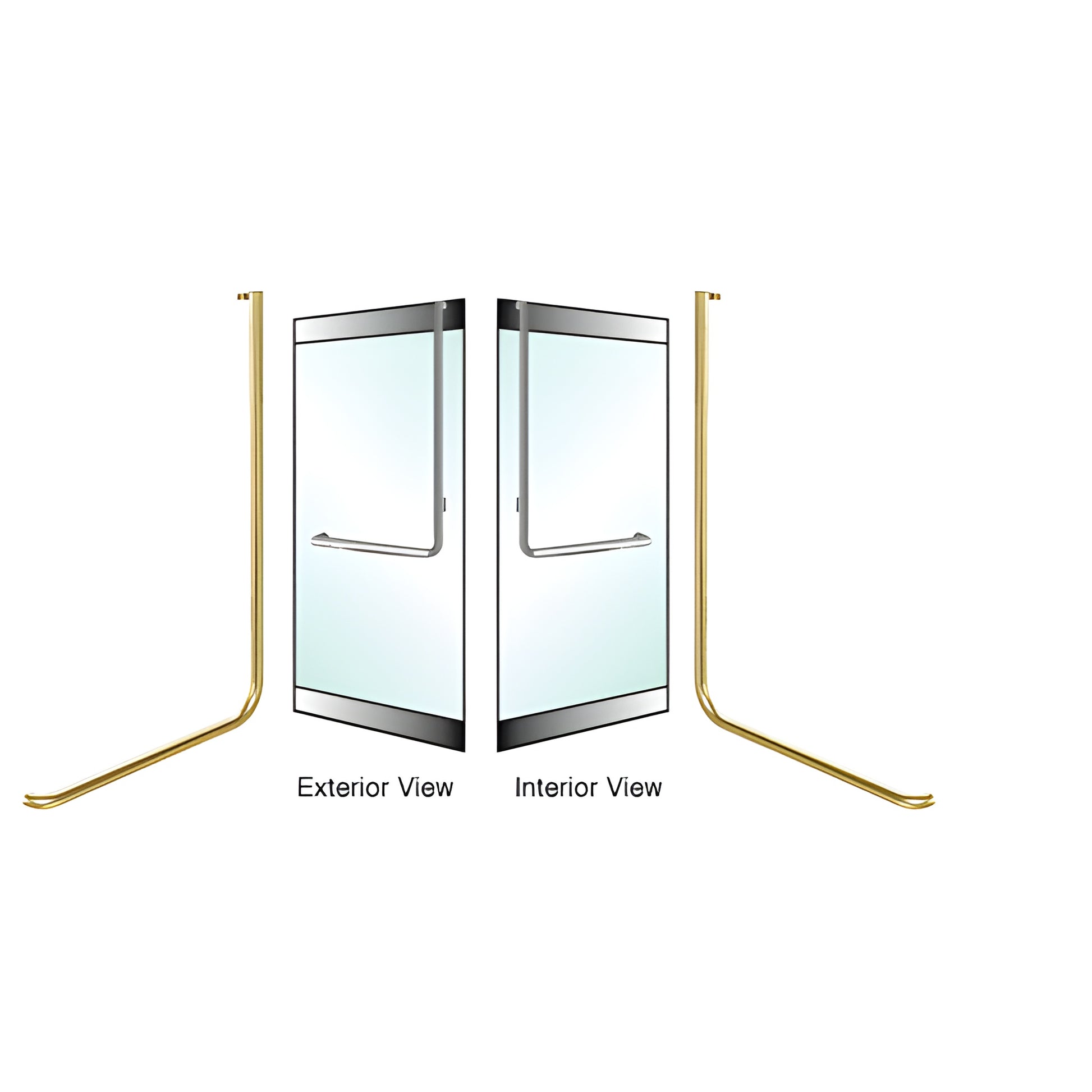

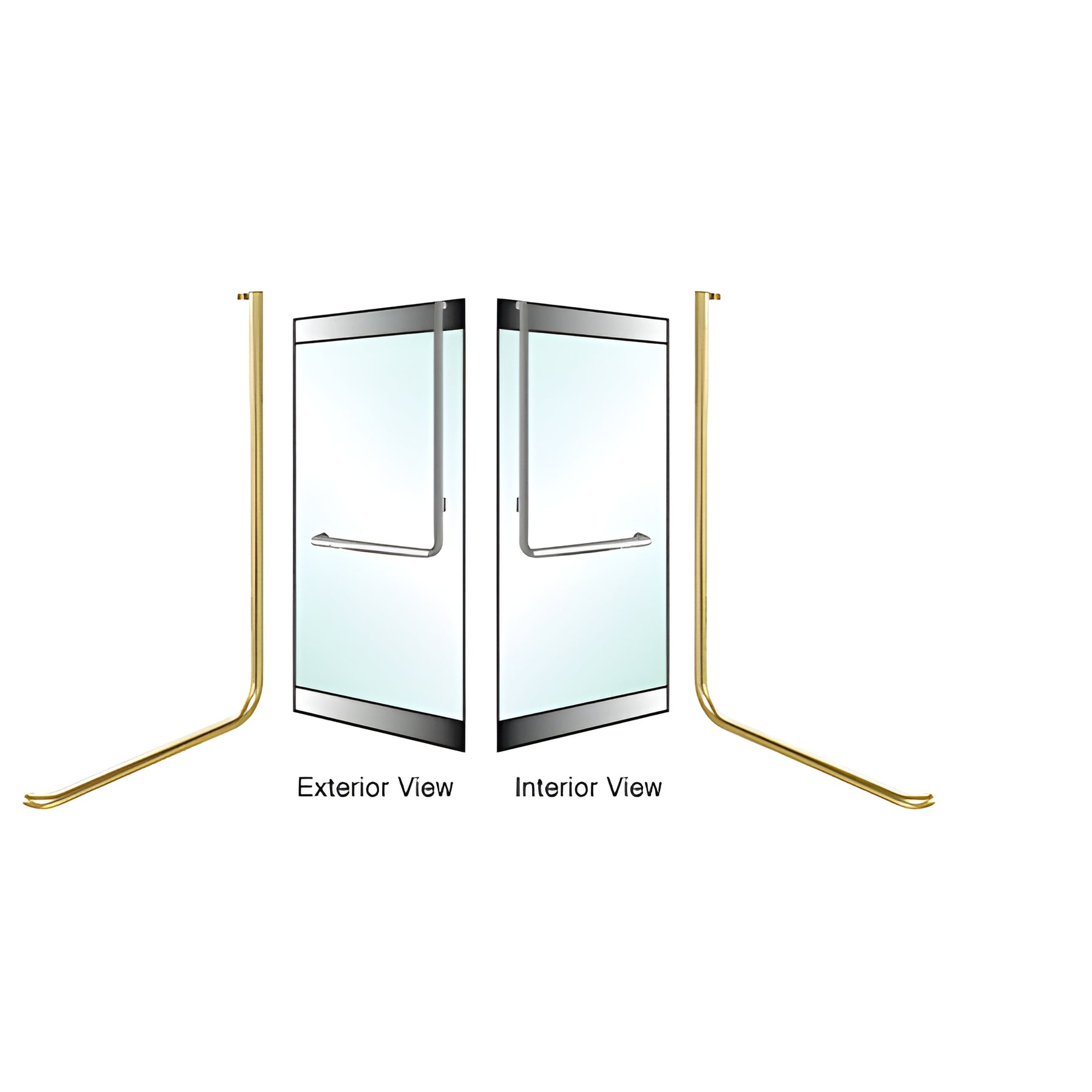

This CRL Glass Door Dummy Handle is designed to allow maximum view and a contemporary look to 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Installations can be made on single or double doors. The handles are designed to fit on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 80" to 108" (2.03 to 2.74 m) high. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
1/2" or 3/4" (12 or 19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Dummy Handles you must specify:
DH100, DH110 or other Interior Handle Series AH18 catalog
Exterior Handle Option
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Brushed or Polished Stainless, Satin or Polished Brass Finish
Contact CRL Technical Sales for specification details and pricing on these handles for 'All-Glass' Entrance Doors.
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
