CRL-Blumcraft® Satin Brass Left-Hand Panic Handle Rail-Mount Keyed D
CRL-Blumcraft® Satin Brass Left-Hand Panic Handle Rail-Mount Keyed D
Regular price
$13,751.01 CAD
Regular price
Sale price
$13,751.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100D4RKSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Satin Brass
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for contemporary glass entrances
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Wide selection of exterior fixed handles
- Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed specifically for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a consistent appearance across your project without added cost.

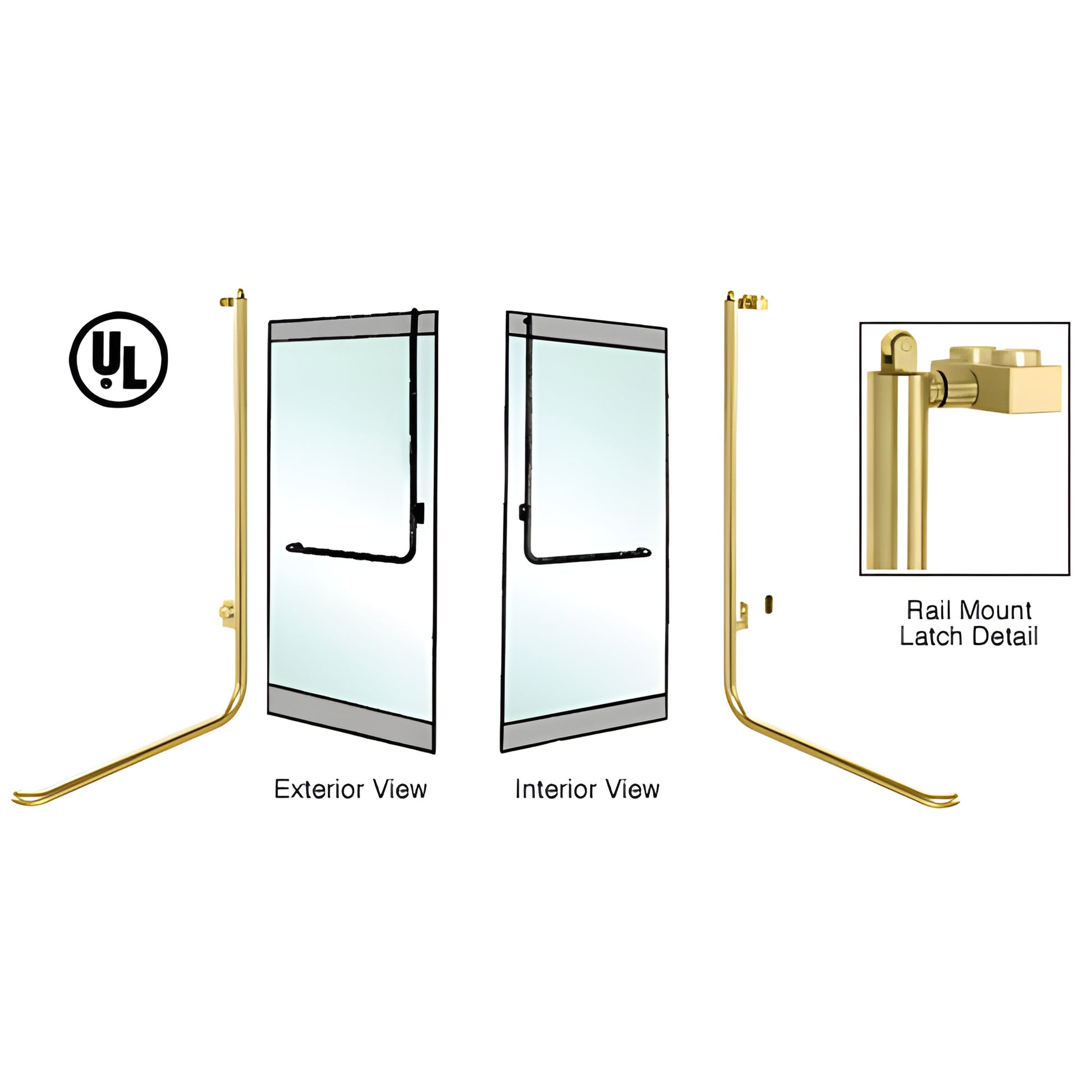

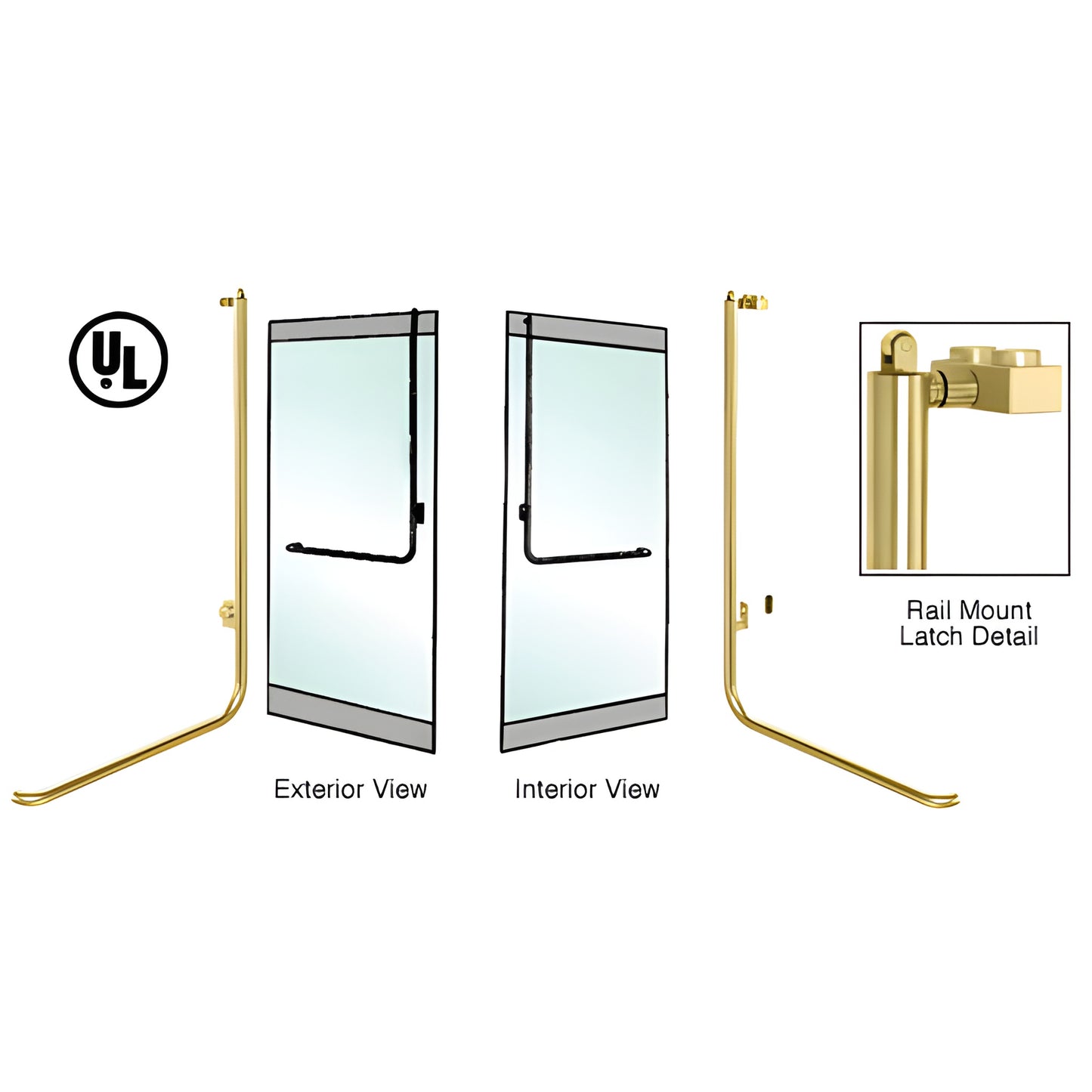

The PA100 Series panic handle is an ADA-compliant solution engineered for maximum viewing area on 1/2" and 3/4" tempered glass doors. The operating mechanism is concealed within the vertical tube; pushing the interior actuation bar retracts the latch bolt. The slender 1-1/4" (32 mm) interior tube runs across the door and turns upward to the top rail, keeping the lower door unobstructed to meet ADA requirements.
Key features and access options include an optional exterior keyed access device, a sliding dogging feature that locks the device open for business hours, and compatibility with electric strikes for remote keyless entry. Custom headers with installed strike hardware are available for convenience.
For detailed product specifications and installation information, view the latest catalog pages here or contact CRL Technical Sales via the Contact Us page (select Technical Sales for Commercial Products).
SKU: PA100D4RKSB
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance regardless of packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Ready to specify the PA100 Series for your tempered glass door project? Contact CRL Technical Sales or order online today.
