• Satin brass PA100 panic handle for 1/2" glass doors, 1-1/4" tube, right-hand reverse, exterior keyed.
1 1

CRL

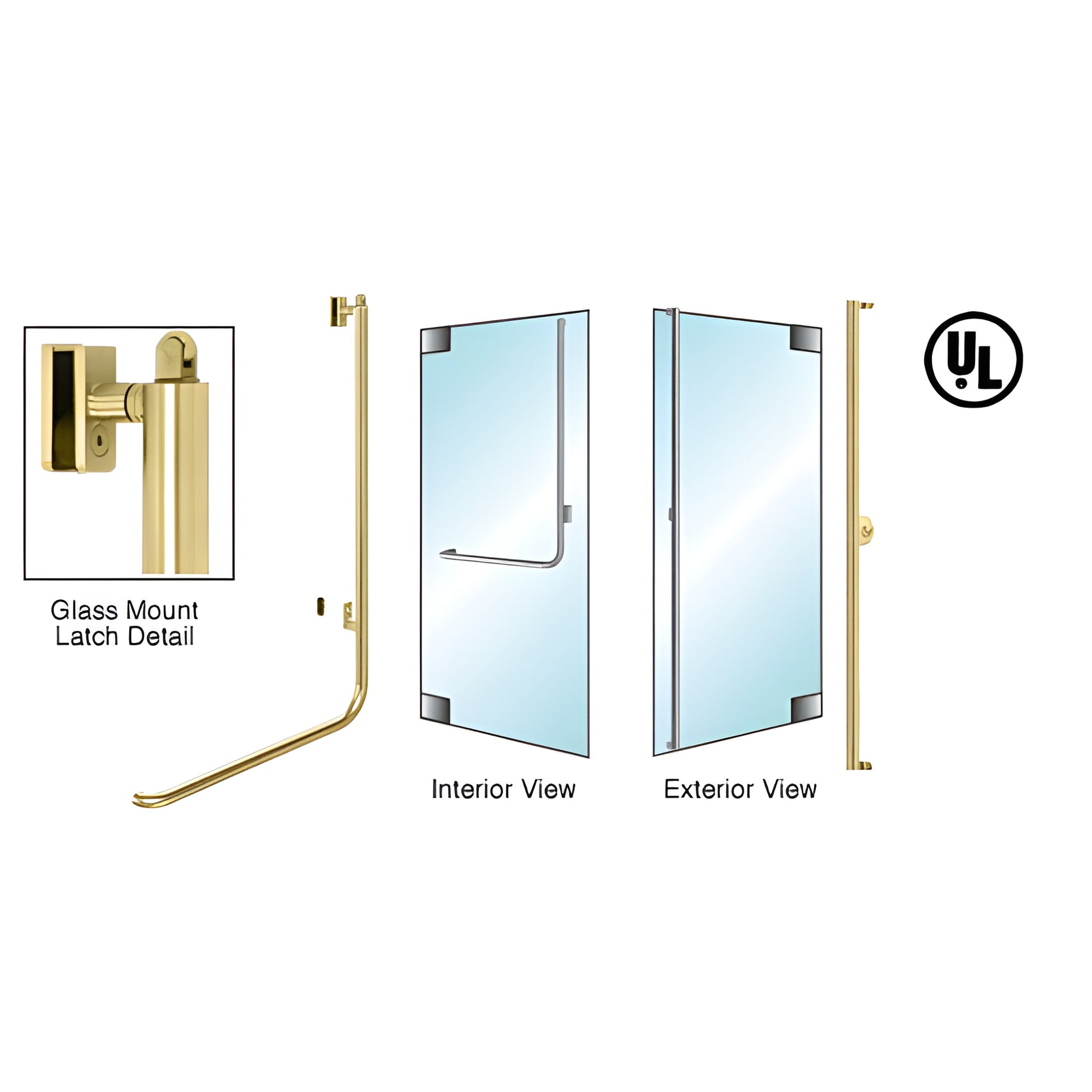

CRL-Blumcraft® Satin Brass RH Reverse Glass-Mount Keyed Panic Handle

CRL-Blumcraft® Satin Brass RH Reverse Glass-Mount Keyed Panic Handle

$13,512.14 CAD
$13,512.14 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100F3GKSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Satin Brass
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed specifically for all-glass doors, including Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent appearance without added cost.

The vertical tubing of our panic handles conceals the operating mechanism that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a special dogging feature to keep doors unlocked during business hours, and compatible electronic strikes provide multiple secured-entry options for commercial glass entrances.

Designed to maximize viewing area and meet modern aesthetics on 1/2" or 3/4" tempered glass doors, the PA100 Series is the most popular panic handle in this family and addresses Americans with Disabilities Act (A.D.A.) clearance concerns for all-glass installations. SKU: PA100F3GKSB.

The interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and gently turns upward to the top, keeping the lower door unobstructed to comply with ADA requirements. All PA100 Series panic handles include a dogging lever for holding the device in the open position and can be used with an electric strike; custom headers with strike hardware installed are available.

For installation help, technical specifications, or questions about ADA-compliant panic hardware for glass doors, contact CRL Technical Sales from the home page (Contact Us → Technical Sales for Commercial Products). The latest catalog pages with full CRL-Blumcraft® Access Handle details are available here.

Most shipping weights are approximate and have not been verified. If exact weight or verified shipping costs are required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.


Looking for an ADA-compliant panic handle for a tempered glass storefront
